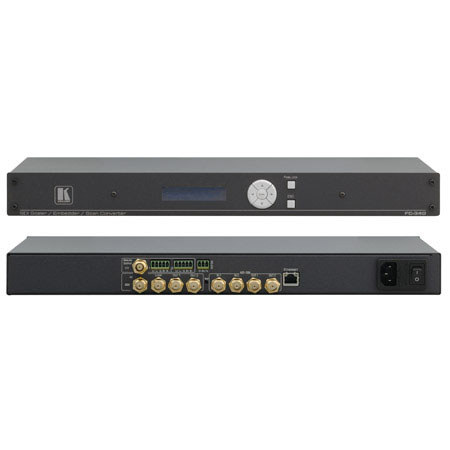

Kramer Electronics FC-340 3G HD-SDI Scaler/Embedder/Scan Converter, 3Gbps Max. Data Rate, Looping Video Input

SKU: KRFC340 MFR: FC-340
Earn VIP Reward Points

Key Features

  • Enjoy seamless video format conversion with the FC-340, supporting up to 3G HD-SDI!
  • Achieve high-quality video output with this scaler, supporting multiple resolutions up to 1080p.
  • Use the FC-340 for live streaming events, ensuring stable and reliable video conversion.
  • Embed audio into your SDI signal effortlessly, simplifying your audio-video setup process.
  • This video converter offers both digital and analog outputs for versatile connectivity options.
  • Optimize your video workflow with real-time conversion, perfect for broadcast and production.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$89.99

3 Year

$109.99

4 Year

$139.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Kramer Electronics FC-340 Specifications

  • Digital Inputs

    1 SD/HD/3G HD-SDI with loop, 75Ohm on BNC connectors; 2 AES/3id on BNC connectors

  • Digital Outputs

    2 SD/HD/3G HD-SDI, 75Ohm on BNC connectors; 2 AES/3id on BNC connectors

  • Analog Outputs

    1 composite on a BNC connector, PAL/NTSC (according to output frame rate); 2 balanced stereo audio on a 5-pin terminal block

  • Max. Digital Video Input/Output Level

    800mVpp/75 Ohms

  • Sample Conversion Rate

    48kHz (digital audio)

  • Bandwidth

    20kHz (analog audio)

  • Input Resolutions

    480i @59.94, 576i @50, 720p @59.94/60/50, 1080i @59.94/60/50, 1080p @29.97/30/23.98/24, 23.98sF/24sF, 1080p @59.94/60/50

  • Output Resolutions

    480i @59.94, 576i @50, 72p @59.94/60/50, 1080i @59.94/60/50, 1080p @59.94/60/50.

  • Power Consumption

    100-240V AC 50/60Hz 22VA

  • Operating Temperature

    0deg. to +40deg.C (32deg. to 104deg.F)

  • Storage Temperature

    -40deg. to +70deg.C (-40deg. to 158deg.F)

  • Humidity

    10% to 90%, RHL non-condensing

  • Rack Height

    1U rack mountable

  • Dimensions (W x D)

    19 x 7.2" / 48.26 x 18.28 cm
    1U rack mountable

  • Weight

    1.6 kg / 3.52 lbs approx

About Kramer Electronics FC-340

Bring professional-grade quality to your video production with the Kramer Electronics FC-340 3G HD-SDI Scaler/Embedder/Scan Converter. Designed for high-performance digital video signal processing, this device is capable of handling data rates up to 3Gbps, ensuring seamless transmission of your high-definition content.

The FC-340 is more than just a video scaler; it's a comprehensive solution for your audio and video needs. It functions as an audio embedder and de-embedder, allowing you to integrate audio into your SDI signal or extract it for separate processing. This feature provides you with the flexibility to manage your audio content according to your specific requirements.

Moreover, this device also serves as a scan converter, transforming your SDI input into both SDI and composite video outputs. This dual-output capability enables you to distribute your content across multiple platforms without compromising on quality.

The FC-340 also ensures that the audio embedded in your SDI input signal is efficiently output to both AES/3id and balanced audio outputs. This feature guarantees that your audio content is delivered with the same high quality as your video content, providing a complete and professional multimedia experience.

Incorporate the Kramer Electronics FC-340 3G HD-SDI Scaler/Embedder/Scan Converter into your video production workflow for a reliable, high-quality, and versatile solution to your audio and video signal processing needs.

Kramer Electronics FC-340 Features

  • Max. Data Rate - 3Gbps
  • HDTV Compatible
  • Multi-Standard Operation - SDI (SMPTE 259M and SMPTE 344M), HD-SDI (SMPTE 292M) and 3G HD-SDI (SMPTE 424M)
  • Looping Video Input
  • Kramer Equalization & re-Klocking Technology - Rebuilds the digital signal to travel longer distances
  • Embedding Options - Selects embedded audio or embeds two independent audio groups
  • Flexible Control Options - Front panel buttons with 20-character LCD display, RS-232, Ethernet
  • Standard 19" Rack Mount Size - 1U. Rack "ears" included

Warranty Information

This product has a limited warranty of 84 months.

Key Features

  • Enjoy seamless video format conversion with the FC-340, supporting up to 3G HD-SDI!
  • Achieve high-quality video output with this scaler, supporting multiple resolutions up to 1080p.
  • Use the FC-340 for live streaming events, ensuring stable and reliable video conversion.
  • Embed audio into your SDI signal effortlessly, simplifying your audio-video setup process.
  • This video converter offers both digital and analog outputs for versatile connectivity options.
  • Optimize your video workflow with real-time conversion, perfect for broadcast and production.

What's in the box:

  • Kramer Electronics FC-340 3G HD-SDI Scaler/Embedder/Scan Converter
  • Rack "Ears "
  • Kramer Electronics 7 Year Limited Warranty
