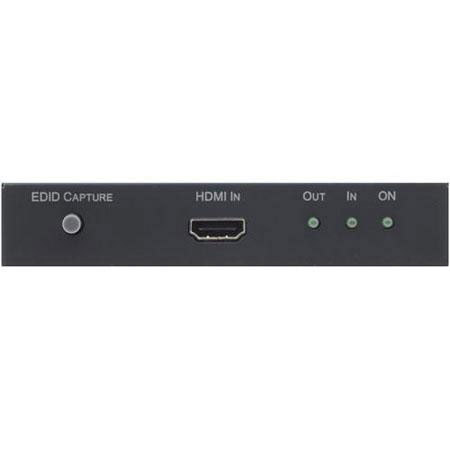

Kramer Electronics FC-46 HDMI Audio De-Embedder
See all Kramer Electronics items

Kramer Electronics FC-46 HDMI Audio De-Embedder

SKU: KRFC46
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Kramer Electronics FC-46 Specifications

  • Input

    1 HDMI connector

  • Output

    1 HDMI connector; 1 TOSLINK optical connector; 1 S/PDIF (digital audio) on an RCA connector

  • Operation Frequency

    Supports up to 1.65Gbps (1080p @60Hz)

  • Audio Format

    2 channel S/PDIF and OPTICAL TOSLINK, up to 96kHz sampling rate

  • Compliance With Hdmi Standard

    Supports HDMI, HDCP 1.0

  • Controls

    EDID button

  • Indicator Leds

    Power (ON), Input detect (IN), Output detect (OUT)

  • Power Source

    12V DC, 180mA

  • Dimensions (H x W x D)

    0.95 x 4.73 x 2.83" (2.4 x 12 x 7.2cm)

  • Weight

    0.67 lbs (0.3kg)

About Kramer Electronics FC-46

The FC-46 is a high-performance HDMI audio de-embedder. It accepts an HDMI input signal and de-embeds the audio signal to S/PDIF and TOSLINK audio outputs.

Kramer Electronics FC-46 Features

  • This unit de-embeds audio from HDMI signals and outputs S/PDIF and TosLink audio signals
  • It offers data rates of up to 1.65Gbps
  • This unit is HDTV- and HDCP-compliant
  • It features a looping input
  • Enhanced EDID (Extended Display Identification Data) stores and recalls a default EDID setting in non-volatile memory from the output, which allows for easier connection to the source
  • Digital RGB or YPbPr signal type is automatically detected
  • This device belongs to the Compact Kramer TOOLS Series and up to (3) of these units can be mounted side by side in 1U of rack space using the separately available RK-3T Rack Adapter

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • It features a looping input

What's in the box:

  • Kramer Electronics FC-46 HDMI Audio De-Embedder
  • Power Supply
  • Bracket Installation Kit
  • Kramer Electronics Warranty
