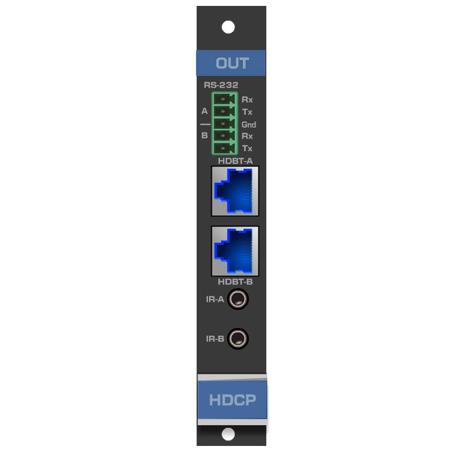

Kramer Electronics HDBT7-OUT2-F16 2-Channel 4K60 HDMI over Long Reach HDBaseT Output Card for VS-1616D Switcher

SKU: KRHD2F16DTSE MFR: HDBT7-OUT2-F16(DT)/STANDA
Earn VIP Reward Points

Key Features

  • Extend your AV reach with this HDBaseT output card, delivering reliable connections up to 230ft.
  • Enjoy wide compatibility; this card supports HDCP, HDMI, and HDBaseT standards seamlessly.
  • Experience high-resolution video switching with 4K@60Hz, ensuring crystal-clear visuals for your audience.
  • Simplify setup with this I/O module, designed specifically for the Kramer VS-1616D Switcher.
  • Ensure low latency video distribution for live events, presentations, and broadcast applications.
  • Control devices remotely using RS-232 & IR ports, offering extended control of your AV setup.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$89.99

3 Year

$109.99

4 Year

$139.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Kramer Electronics HDBT7-OUT2-F16 Specifications

  • Compatibility

    VS-1616D Digital Matrix Switcher

  • Ports

    2 HDBaseT TP on RJ45 connectors, 2 RS-232 Serial ports on a 5 pin terminal block, 2 IR ports on 3.5mm jacks

  • Bandwidth Per Channel

    Video: 3.4Gbps, serial data: 115200

  • Total Bandwidth

    Video: 10.2Gbps, serial data: 115200

  • Maximum Range

    40m (130ft) - 4K at 60Hz (4:2:0) or 4K at 30Hz (4:4:4), 70m (230ft) - 1080p 12 bit (deep color)
    Note: When using Kramer HDBaseT cables

  • 3D Pass Through

    Supported

  • Extended Rs-232

    300 to 115200 baud rate

  • Power Consumption

    8W

  • Operating Temperature

    0 to 40 deg. C (32 to 104 deg. F)

  • Storage Temperature

    -40 to 70 deg. C (-40 to 158 deg. F)

  • Humidity

    10% to 90%, RHL non-condensing

  • Standard Compliance

    HDCP 1.4, HDMI 1.3a, HDBaseT, HDTV compatible

  • Safety Regulatory Compliance

    CE

  • Environmental Regulatory Compliance

    Complies with appropriate requirements of RoHs and WEEE

  • Dimensions

    19.00 x 13.00 x 2.00cm (7.48 x 5.12 x 0.79")

  • Weight

    0.2kg (0.44 lbs)approx.

  • UPC Code

    7291063078607

About Kramer Electronics HDBT7-OUT2-F16

Experience the power and reliability of the HDBT7-OUT2-F16, a high-quality, two-channel 4K60 4:2:0, long reach, HDBaseT output card designed for the VS-1616 Series Modular Multi-Format Digital Matrix Switchers. This advanced piece of technology, developed by Kramer Electronics, is capable of outputting two long reach HDBaseT signals with bidirectional RS-232 and IR from the chassis to the line, ensuring seamless transmission of high-definition video and audio signals over long distances.

With a maximum data rate of 10.2 Gbps (3.4 Gbps per graphic channel), this durable output card guarantees high-speed data transmission without compromising on quality. It supports resolutions up to 4K60 (4:2:0), delivering crystal clear images and vibrant colors for an immersive viewing experience.

The HDBT7-OUT2-F16 is designed to extend your reach, offering a maximum range of 40m (130ft) for 4K60 4:2:0 or 4K30 4:4:4, and 70m (230ft) for 1080p 12bit (deep color) when using Kramer HDBaseT cables. This makes it an ideal choice for large venues and installations where the signal needs to be transmitted over a long distance.

This innovative output card is HDTV compatible, HDCP compliant, and supports 3D pass-through, making it versatile and suitable for a wide range of applications. It also features Kramer's proprietary equalization and re-Klocking technology, ensuring reliable and consistent performance.

Whether you're setting up professional display systems requiring video signal routing, working in broadcast, presentation and production facilities, or monitoring in large duplication systems, the HDBT7-OUT2-F16 is the reliable choice. It's also perfect for rental and staging applications, offering the durability and performance you need in a portable package. Experience the difference with the HDBT7-OUT2-F16 2-Channel 4K60 HDMI over Long Reach HDBaseT Output Card.

Kramer Electronics HDBT7-OUT2-F16 Features

  • High-quality, two-channel 4K60 4:2:0, long reach, HDBaseT output card for VS-1616 Series Modular Multi-Format Digital Matrix Switchers
  • Delivers maximum data rate of 10.2 Gbps (3.4 Gbps per graphic channel) for high-speed data transmission
  • Supports resolutions up to 4K60 (4:2:0) for crystal clear images and vibrant colors
  • Provides extended reach of up to 70m (230ft) for 1080p 12bit (deep color) with Kramer HDBaseT cables
  • Features bidirectional RS-232 and IR per port, HDTV compatibility, HDCP compliance, and 3D pass-through
  • Incorporates Kramer's proprietary equalization and re-Klocking technology for reliable and consistent performance

Warranty Information

This product has a limited warranty of 84 months.

Key Features

  • Extend your AV reach with this HDBaseT output card, delivering reliable connections up to 230ft.
  • Enjoy wide compatibility; this card supports HDCP, HDMI, and HDBaseT standards seamlessly.
  • Experience high-resolution video switching with 4K@60Hz, ensuring crystal-clear visuals for your audience.
  • Simplify setup with this I/O module, designed specifically for the Kramer VS-1616D Switcher.
  • Ensure low latency video distribution for live events, presentations, and broadcast applications.
  • Control devices remotely using RS-232 & IR ports, offering extended control of your AV setup.

What's in the box:

  • Kramer Electronics HDBT7-OUT2-F16 2-Channel 4K60 HDMI over Long Reach HDBaseT Output Card
  • Screw Driver
  • Kramer Electronics 7 Year Limited Warranty
