Kramer Electronics HDBT-OUT2-F16 2-Ch HDMI over Extended Reach HDBT Output Card
See all Kramer Electronics items
20% Off

Kramer Electronics HDBT-OUT2-F16 2-Channel HDMI over Extended Reach HDBaseT Output Card for VS-1616D Switcher

SKU: KRHDB2F16STE MFR: HDBT-OUT2-F16/STANDALONE
Be the first to review this itemAsk a Question
$1,068.00
$1,335.00
Save: $267 (20%)
OR
$89/mo suggested payments with 12‑month special financing. Learn how.
Earn VIP Reward Points

Key Features

  • Extend your HDMI signal with this HDBaseT output card for seamless video distribution.
  • Enjoy reliable connectivity up to 590ft using Kramer HDBaseT cables for extended reach.
  • Experience high resolution video with 2.25Gbps bandwidth per channel for clear visuals.
  • Easily integrate with your VS-1616D Switcher for enhanced video switching capabilities.
  • Control devices remotely via RS-232 and IR extension for convenient system management.
  • Ensure wide compatibility with HDCP 1.4 and HDMI 1.3a standards for various devices.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1
Add to ListGet Sale Alert

Protect your gear with Adorama Protect.* Learn more

2 Year

$89.99

3 Year

$109.99

4 Year

$139.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

Kramer Electronics HDBT-OUT2-F16 Specifications

  • Compatibility

    VS-1616D Switcher

  • Outputs

    2 HDBaseT TP on RJ-45 connectors

  • Ports

    2 RS-232 and 2 IR on a 10 pin terminal block for bidirectional RS-232 and IR extension
    1 Ethernet on an RJ-45 connector for bidirectional Ethernet extension

  • Bandwidth Per Channel

    Video: 2.25Gbps, serial data: 115200

  • Total Bandwidth

    Video: 6.75Gbps, serial data: 115200

  • Maximum Range

    130m (430ft) normal mode, 180m (590ft) ultra-mode (1080p at 60Hz at 24bpp). Note: When using Kramer HDBaseT cables

  • 3D Pass Through

    Supported

  • Extended Ethernet

    Up to 100Mbps extended line rate bandwidth

  • Extended Rs-232

    300 to 115200 baud rate

  • Power Consumption

    10.5W

  • Operating Temperature

    0 to 40 deg. C (32 to 104 deg. F)

  • Storage Temperature

    -40 to 70 deg. C (-40 to 158 deg. F)

  • Humidity

    10% to 90%, RHL non-condensing

  • Standard Compliance

    HDCP 1.4, HDMI 1.3a, HDBaseT

  • Safety Regulatory Compliance

    CE

  • Environmental Regulatory Compliance

    Complies with appropriate requirements of RoHs and WEEE

  • Dimensions (WxDxH)

    19.00 x 13.00 x 2.00cm (7.48 x 5.12 x 0.79")

  • Weight

    0.2kg (0.44 lbs) approx.

  • UPC Code

    7291063049959

About Kramer Electronics HDBT-OUT2-F16

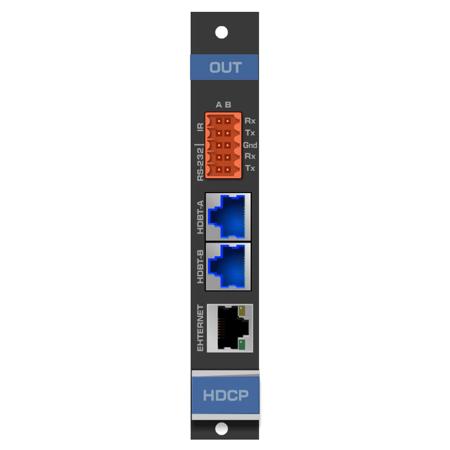

HDBT-OUT2-F16 is a two-channel HDMI, bidirectional RS-232, Ethernet & IR over HDBaseT twisted pair transmitter card for the VS-1616 Series Modular Multi-Format Digital Matrix Switchers. The HDBT-OUT2-F16 outputs two extended reach HDBaseT signals with bidirectional RS-232, IR and Ethernet from the chassis to the line.

• 3D Pass-Through

Max. Data Rate
6.75Gbps (2.25Gbps per graphic channel).

HDBaseT Technology
HDTV compatible, HDCP compliant.

System Range
Up to 130m (430ft) normal mode; up to 180m (590ft) ultra-mode (1080p at 60Hz at 24bpp). Note: When using Kramer HDBaseT cables.

Ethernet Extension
Ethernet interface data flows in both directions, allowing extension of up to 100Mbps Ethernet connectivity for LAN communication and device control.

Bidirectional RS-232 Extension
Serial interface data flows in both directions, allowing data transmission and device control.

Bidirectional Infrared Extension
IR interface data flows in both directions, allowing remote control of peripheral devices located at either end of the extended line.

Applications
• Professional display systems requiring video signal routing
• Broadcast, presentation and production facilities, as well as monitoring in large duplication systems
• Rental and staging

Warranty Information

This product has a limited warranty of 84 months.

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Extend your HDMI signal with this HDBaseT output card for seamless video distribution.
  • Enjoy reliable connectivity up to 590ft using Kramer HDBaseT cables for extended reach.
  • Experience high resolution video with 2.25Gbps bandwidth per channel for clear visuals.
  • Easily integrate with your VS-1616D Switcher for enhanced video switching capabilities.
  • Control devices remotely via RS-232 and IR extension for convenient system management.
  • Ensure wide compatibility with HDCP 1.4 and HDMI 1.3a standards for various devices.

What's in the box:

  • Kramer Electronics HDBT-OUT2-F16 2-Channel HDMI over Extended Reach HDBaseT Output Card
  • Kramer Electronics 7 Year Limited Warranty
