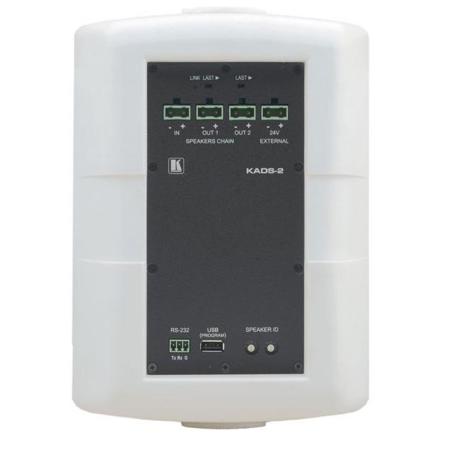

Kramer Electronics KADS-2 5" On-Wall Controllable Powered Active Speaker, Single

SKU: KRKADS2 MFR: KADS-2
Earn VIP Reward Points

Key Features

  • Experience superior audio quality with this 5" on-wall powered speaker.
  • Enjoy versatile connectivity options, including TP and RS-232 ports.
  • This controllable active speaker is perfect for commercial audio solutions.
  • Achieve optimal sound with a bandwidth of 0-20kHz and low distortion.
  • Durable design ensures long-lasting performance in any environment.
  • Simplify installations with the built-in 2x25W power amplifier.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$119.99

3 Year

$154.99

5 Year

$269.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Kramer Electronics KADS-2 Specifications

  • Inputs

    1 TP on a 2-pin Large terminal block

  • Outputs

    2 TP on 2-pin Molex connectors

  • Ports

    1 bidirectional RS-232 serial port on a 3 pin terminal block

  • Bandwidth

    0-20kHz at -3dB

  • S/N Ratio

    84dB unweighted

  • TND+N

    0.02% unweighted

  • Total Gain

    Analog/analog: 0dB
    Analog/SPDIF: -12dBFS

  • Rs-232 Baud Rate

    115200bps, full-duplex

  • Power Amplifier

    Built-in, 2x25W

  • Power Consumption

    24V DC 1.5mA

  • Transmission Distance

    Up to 30m (100ft) on a single power supply

  • Operating Temperature

    0 to 40 deg. C (32 to 104 deg. F)

  • Storage Temperature

    -40 to 70 deg. C (-40 to 158 deg. F)

  • Humidity

    10% to 90%, RHL non-condensing

  • Vibration

    ISTA 1A in carton (International Safe Transit Association)

  • Safety Regulatory Compliance

    CE

  • Environmental Regulatory Compliance

    Complies with appropriate requirements of RoHs and WEEE

  • Dimensions (WxDxH)

    18.30 x 17.20 x 24.40cm (7.20 x 6.77 x 9.61")

  • Weight

    2.3kg (5.07 lbs) approx

  • UPC Code

    7291063074319

About Kramer Electronics KADS-2

The KADS-2 is an active speaker with multi-channel, digital audio, control and power provided over a single cable. Used in conjunction with the KADS-100 controller, up to ninety-nine KADS-2 speakers can be connected in tree and branch configurations. The KADS-2 has two outputs that can be connected to either a KADS-1 or a KADS-2 up to 30m away with a total of sixteen speakers, eight per chain. The KADS-2 also has a power input for extending a chain beyond 30m for a further eight speakers in the chain.

• High-resolution Audio Support

Highly Flexible Layout Options
Up to 99 speakers (8 per branch).

Control
Via the KADS-100 controller.

Speaker ID
Set unique ID on each speaker for control from KAD-100 Controller.

USB
For firmware upgrades.

Built-in 25 Watt Power Amplifier
Power via KADS-100 controller for 8 speakers.

Range
30m (100') between speakers with a 240m (800') total system range without additional power supplies.

Warranty Information

This product has a limited warranty of 12 months.

Key Features

  • Experience superior audio quality with this 5" on-wall powered speaker.
  • Enjoy versatile connectivity options, including TP and RS-232 ports.
  • This controllable active speaker is perfect for commercial audio solutions.
  • Achieve optimal sound with a bandwidth of 0-20kHz and low distortion.
  • Durable design ensures long-lasting performance in any environment.
  • Simplify installations with the built-in 2x25W power amplifier.

What's in the box:

  • Kramer Electronics KADS-2 5 " On-Wall Controllable Powered Active Speaker
  • Power Supply
  • Kramer Electronics 1 Year Limited Warranty
