20% Off

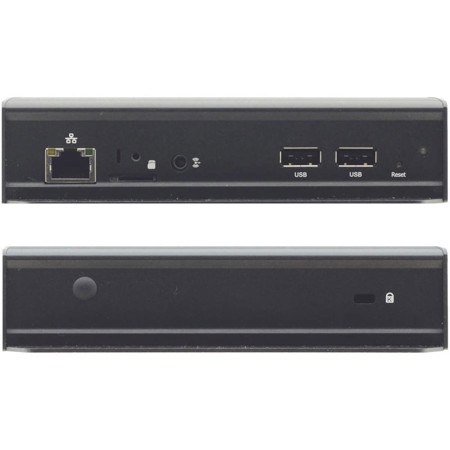

Kramer Electronics KDS-MP4 4K60 UHD Digital Signage Media Player

SKU: KRKDSMP4 MFR: KDS-MP4
Earn VIP Reward Points

Key Features

  • Deliver stunning 4K60 UHD digital signage with the Kramer KDS-MP4 media player.
  • Enjoy versatile connectivity with HDMI, USB, and Ethernet ports on this signage player.
  • Easily manage dynamic content via HTML5 and SMIL 3.0 for engaging displays.
  • Store up to 6 hours of 720p video on the 8GB internal flash memory of the player.
  • Expand storage using the micro SD card slot for extended digital signage playback.
  • Rely on this durable media player, certified with UL/FCC/CE for dependable use.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$139.99

3 Year

$184.99

5 Year

$339.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Kramer Electronics KDS-MP4 Specifications

  • Applications

    Digital signage

  • I/O Connectors

    1 HDMI, 2 USB 2.0, 1 Ethernet on a RJ-45 connector, 1 unbalanced stereo audio on a 3.5mm mini jack, micro SD card slot

  • Video Format Support

    POPAI Screen Media Standards
    S6 (MPEG-1 SIF, 3Mbps CBR)
    S7 (MPEG-1 480p, 10Mbps CBR)
    S8 (MPEG-1 720p, 15Mbps CBR)
    S9 (MPEG-2 480p, 6Mbps CBR)
    S10 (MPEG-2 720p, 12Mbps CBR)
    S11 (MPEG-4 AVC, 480p, 6Mbps CBR)
    S12 (MPEG-4 AVC, 720p, 10Mbps CBR)
    E4 (VC-1/WMV9, MP at ML, 720p)
    E7 (MPEG-4 ASP, 480p, 10Mbps CBR)
    E8 (MPEG-4 AVC, 1080p, 10Mbps CBR)

  • Image Format Support

    POPAI Screen Media Standards
    S1 (JPEG 480p baseline)
    S2 (JPEG 720p baseline)
    S3 (JPEG 1080p baseline)
    E1 (PNG 24bpp+alpha, 480p)
    E2 (PNG 24bpp+alpha, 720p)
    E3 (PNG 24bpp+alpha, 1080p)

  • Audio Codec Support

    POPAI Screen Media Standards
    S4 (MPEG L2 audio)
    S5 (MP3 audio, 320Kbps)

  • Dynamic Content

    W3C HTML5 (HTML, CSS, JavaScript)
    W3C SMIL 3.0 instructions (sub-set)

  • Indicators

    Power(green), Status(orange)

  • Local Storage

    8GB on-board flash memory (up to 6hrs of typical 720p video at 3Mbps)
    Micro SD card expansion slot

  • Power Requirement

    12V 1.1A DC

  • Power Consumption

    8.65W

  • Operating Temperature

    0 to 45 deg. C (32 to 113 deg. F)

  • Storage Temperature

    -40 to 70 deg. C (-40 to 158 deg. F)

  • Humidity

    10 - 85% at 40 deg. C, 32 to 104 deg. F (0 to 40 deg. C) non-condensing

  • Safety

    UL/FCC/CE/CCC/C-Tick/VCCI certified power supplies

  • Certifications

    CE/FCC/VCCI/TELEC/CCC/IC

  • Dimensions (WxDxH)

    13.90 x 12.90 x 3.10cm (5.47 x 5.08 x 1.22")

  • Weight

    0.5kg (1.10 lbs) approx.

  • UPC Code

    7291063076597

About Kramer Electronics KDS-MP4

Take your digital signage to the next level with the KDS-MP4 4K60 UHD Digital Signage Media Player. This high-performance device is designed to deliver LAN-based 4K content at 60Hz (4:2:0), ensuring crisp, clear, and vibrant display quality.

The KDS-MP4 receives content from the Media Manager software installed on your PC, either through a LAN connection or from an external USB memory stick. It then loads this content into its 8GB internal memory, ready to display it via the HDMI output with an impressive image quality of up to 4K60 4:2:0.

This digital signage media player supports a wide range of codec formats, including MPEG-1, MPEG-2, MPEG L2, MP3, H.264/MPEG-4, and VC-1, providing you with the flexibility to use various types of media files. It also features SMIL 3.0 instruction (sub-set) support, enabling seamless integration with CMS device management in LAN environments.

The KDS-MP4 is designed with a perforated side panel for efficient heat dissipation, ensuring optimal performance even during extended use. It comes with a VESA standard mounting bracket, allowing for versatile installation options, whether on-wall, inside a cabinet, or attached to the VESA standard screw holes on the rear panel of a display.

The included Media Manager software offers an easy, powerful, and versatile solution for managing digital signage content via a PC. It supports multiple languages and comes with ready-made templates for screen layouts, logos, tickers, and widgets.

Compact and robust, the KDS-MP4 4K60 UHD Digital Signage Media Player also features a built-in mounting bracket, making it a practical and efficient choice for all your digital signage needs.

Kramer Electronics KDS-MP4 Features

  • High-performance 4K60 UHD Digital Signage Media Player for vibrant and clear displays
  • Supports various codec formats including MPEG-1, MPEG-2, MPEG L2, MP3, H.264/MPEG-4, and VC-1
  • Integrated SMIL 3.0 instruction for seamless CMS device management in LAN environments
  • Efficient heat dissipation design with perforated side panel for optimal performance
  • Versatile installation options with VESA standard mounting bracket
  • Includes powerful Media Manager software for easy digital signage content management

Warranty Information

This product has a limited warranty of 12 months.

Key Features

  • Deliver stunning 4K60 UHD digital signage with the Kramer KDS-MP4 media player.
  • Enjoy versatile connectivity with HDMI, USB, and Ethernet ports on this signage player.
  • Easily manage dynamic content via HTML5 and SMIL 3.0 for engaging displays.
  • Store up to 6 hours of 720p video on the 8GB internal flash memory of the player.
  • Expand storage using the micro SD card slot for extended digital signage playback.
  • Rely on this durable media player, certified with UL/FCC/CE for dependable use.

What's in the box:

  • Kramer Electronics KDS-MP4 4K60 UHD Digital Signage Media Player
  • HDMI Cable
  • Power Supply (12V DC)
  • 2 Sets of Hook and Loop Pads
  • Power and Micro SD Card Brackets
  • Quick Start Guide
  • Kramer Electronics 1 Year Limited Warranty
