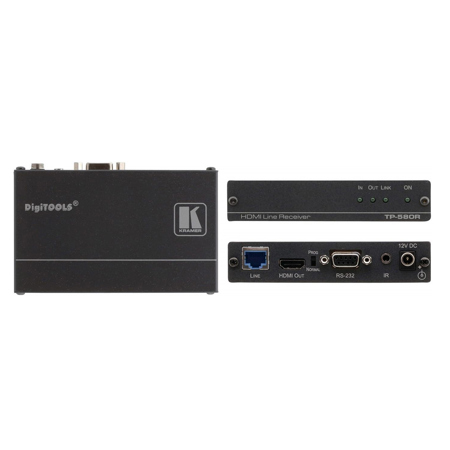

Kramer Electronics TP-580RXR Extended Range HDBaseT Twisted Pair Receiver

SKU: KRM508022190 MFR: 50-80022190
Earn VIP Reward Points

Key Features

  • Extend your HDMI signal up to 590ft with this long range HDBaseT receiver.
  • Enjoy stable signal transmission with HDBaseT tech, perfect for presentations.
  • Experience high resolution video with 4K UHD support for stunning visuals.
  • This twisted pair receiver offers easy setup, saving you valuable installation time.
  • Durable build ensures this HDBaseT receiver withstands demanding environments.
  • Low latency streaming ensures real-time video, ideal for live events and broadcasts.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$29.99

2 Year

$49.99

3 Year

$69.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Kramer Electronics TP-580XR Specifications

  • Inputs

    1x HDBT on an RJ-45 Female Connector

  • Outputs

    1x HDMI on an HDMI Connector

  • Ports

    1x IR on a 3.5mm mini jack for IR link extension, 1x RS-232 on a 9-pin D-sub connector for serial link extension and device firmware upgrade

  • Extension Line

    HDBaseT 1.0 compliant
    330' (100m) at 4K @60Hz (4:2:0)
    430' (130m) at full HD (1080p @60Hz 36bpp)
    590' (180m) at HDBaseT ultra mode and full HD (1080p @60Hz 24bpp)

  • Video

    10.2Gbps bandwidth (3.4Gbps per graphic channel)
    4K UHD @60Hz (4:2:0) 24bpp resolution
    HDCP 2.2 signal compliance
    Supports deep color, x.v.Color, lip sync, HDMI uncompressed audio channels, Dolby TrueHD, DTS-HD, 2K, 4K, and 3D as specified in HDMI 2.0

  • Extended RS-232

    300 to 115200 Baud Rate

  • Control RS-232

    115200 Baud Rate

  • Power Source

    12V DC, 2A

  • Power Consumption

    12V DC, 500mA

  • Enclosure

    DigiTools Size, Aluminum Type

  • Cooling

    Convection Ventilation

  • Operating Temperature

    32 Degree F to 104 Degree F (0 Degree C to 40 Degree C)

  • Storage Temperature

    -40 Degree F to 158 Degree F (-40 Degree C to +70 Degree C)

  • Humidity

    10% to 90%, RHL Non-Condensing

  • Dimensions (W x D x H)

    4.72 x 2.81 x 0.96" (12 x 7.15 x 2.44cm)

  • Weight

    7.05 oz (200g)

  • UPC Code

    7291063051723

About Kramer Electronics TP-580XR

Enhance your professional AV installations with the TP-580RXR Extended Range HDBaseT Twisted Pair Receiver, a high-performance solution designed to reliably extend 4K@60Hz (4:2:0) HDMI, RS-232, and IR signals over twisted pair cabling. This advanced receiver is capable of maintaining crystal-clear video quality, extending signals up to 100 meters (330 feet) over CAT copper cables at a 4K@60Hz (4:2:0) 24bpp video resolution, and even further distances for lower HD video resolutions.

Constructed with durability and longevity in mind, the TP-580RXR is a standard extender that seamlessly integrates with any HDBaseT-compliant extension product on the market. For optimal performance, it is recommended to pair this device with high-quality Kramer cables.

The TP-580RXR supports a wide array of HDMI features, including HDCP 2.2 compliance, deep color, x.v.Color, lip sync, and HDMI uncompressed audio channels. It is also compatible with high-definition audio formats such as Dolby TrueHD and DTS-HD, as well as 2K, 4K, and 3D video as specified in HDMI 2.0. EDID and CEC signals are effortlessly passed through from the source to the display, ensuring a seamless connection.

Kramer's innovative I-EDIDPro Intelligent EDID Processing technology guarantees a hassle-free Plug and Play operation for HDMI source and display systems. The receiver also supports up to 32 channels of digital stereo uncompressed signals, catering to studio-grade surround sound requirements.

Bidirectional RS-232 and infrared extensions offer versatile control, allowing for the transmission of serial interface data and remote control of peripheral devices located at either end of the extended line.

Maintenance is made cost-effective with status LED indicators for HDMI and HDBT ports, which facilitate straightforward local maintenance and troubleshooting. The receiver also supports local firmware upgrades via an RS-232 connection and the K-Upload tool, ensuring a reliable and field-proven deployment.

Installation is simplified with the TP-580RXR's compact DigiTOOLS fan-less enclosure, which is suitable for dropped-ceiling mounting or side-by-side mounting of three units in a 1U rack space with the recommended rack adapter.

Ideal for long-distance AV signal extension in multi-room settings, large dividable auditoriums, lecture halls, conference rooms, boardrooms, control rooms, hotels, and large church facilities, the TP-580RXR Extended Range HDBaseT Twisted Pair Receiver stands out as a high-quality, reliable, and innovative choice for professional AV solutions.

Kramer Electronics TP-580XR Features

  • Max. Data Rate - 10.2Gbps (3.4Gbps per graphic channel) in normal mode; 4.95Gbps (1.65Gbps per graphic channel) in ultra mode
  • HDTV Compatible
  • HDCP Compliant
  • Certified HDBaseT Technology
  • Max. Resolution - 1080p @60Hz in Ultra mode
  • HDMI Support - Deep Color, x.v.Color, Lip Sync, HDMI Uncompressed Audio Channels, Dolby TrueHD, DTS-HD, CEC
  • 3D Pass-Through
  • EDID PassThru - Passes EDID signals between the source and display
  • 2K x 4K Support in Normal Mode
  • Bidirectional RS-232 & IR Interfaces - Commands and data can flow in both directions via the RS-232 interface, allowing status requests and remote control of the destination unit
  • System Range - Up to 430' (130m) normal mode; up to 590' (180m) ultra mode (1080p @60Hz @24bpp) when using BC-HDKat6a cables
  • Cable - Shielded twisted pair (STP) cable recommended. For optimum range and performance use, use Kramer's BC-HDKat6a cable. Note that the transmission range depends on the signal resolution, graphics card and display used. The distance using non-Kramer CAT 5, CAT 6, and CAT 7 cables may not reach these ranges
  • Indicators - Status LEDs for input, output, link and power
  • Wall Plate Size - 2 gang EU/US
  • Compact DigiTOOLS - 3 units can be rack mounted side-by-side in a 1U rack space with the optional RK-3T rack adapter

Warranty Information

This product has a limited warranty of 84 months.

Product Documents

User Manual

Key Features

  • Extend your HDMI signal up to 590ft with this long range HDBaseT receiver.
  • Enjoy stable signal transmission with HDBaseT tech, perfect for presentations.
  • Experience high resolution video with 4K UHD support for stunning visuals.
  • This twisted pair receiver offers easy setup, saving you valuable installation time.
  • Durable build ensures this HDBaseT receiver withstands demanding environments.
  • Low latency streaming ensures real-time video, ideal for live events and broadcasts.

What's in the box:

  • Kramer Electronics TP-580RXR Extended Range HDBaseT Twisted Pair Receiver
  • 2x Power Adapters (12V DC)
  • Mounting Brackets
  • 8x Rubber Feet
  • User Manual
  • Kramer Electronics 7 Year Limited Warranty
