20% Off

Kramer Electronics MV-6 19" (2U) 3G HD-SDI Multiviewer, 3Gbps Max. Data Rate, Ethernet & RS-232 Control, SDI, HD-SDI & 3G HD-SDI Multi-Standard

SKU: KRMV6 MFR: MV-6
Earn VIP Reward Points

Key Features

  • Seamlessly manage multiple SDI feeds with the Kramer MV-6 Multiviewer.
  • Display up to six SD/HD/3G HD-SDI inputs on a single HDMI output for efficient monitoring.
  • Achieve superior video clarity with up to 2.97 Gbps data rate for pristine images.
  • Control via front panel, RS-232, or Ethernet for flexible system integration options.
  • Rack-mountable 2U design optimizes space in broadcast or production environments.
  • Enjoy multi-standard support ensuring compatibility across various video formats.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$499.99

3 Year

$649.99

5 Year

$949.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Kramer Electronics MV-6 Specifications

  • Inputs

    6 SD/HD/3G HD-SDI on BNC connectors

  • Outputs

    1 HDMI, 1 CV on a BNC connector (for 720p at 50 Hz and 1920p at 50 Hz, the output is PAL; for 720p at 59.94/60 Hz and 1920p at 59.94/60 Hz, the output is NTSC)
    1 SD/HD/3G HD-SDI on a BNC connector

  • Maximum Input & Output Level

    800 mVpp/75 Ohm

  • Maximum Data Rate

    Up to 2.97 Gbps

  • Controls

    Front panel, RS-232 and Ethernet

  • LCD Front Panel Display

    4.3" (10.92 cm) TFT color LCD panel

  • Power Consumption

    Universal
    100 to 240 VAC
    50/60 Hz
    35 VA

  • Operating Temperature

    0deg. to +40deg.C (32deg. to 104deg.F)

  • Storage Temperature

    -40deg. to +70deg.C (-40deg. to 158deg.F)

  • Humidity

    10 to 90% RH (non-condensing)

  • Mounting

    Rack mountable

  • Rack Height

    2U

  • Dimensions (W x D)

    19 x 7.4" (482.6 x 187.96 mm)

  • Weight

    6.83 lbs (3.1 kg)

About Kramer Electronics MV-6

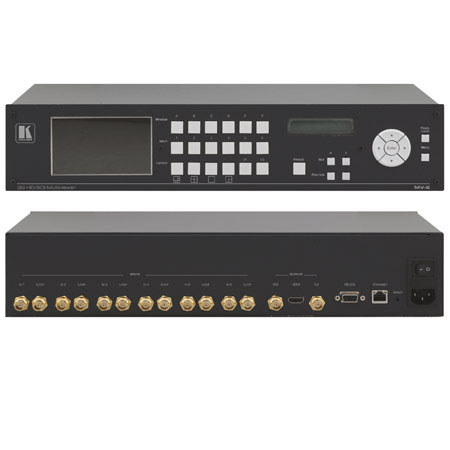

The Kramer Electronics MV-6 3G HD-SDI Multiviewer is a versatile, high-performance multi-viewer for 3G HD-SDI video signals. It can display up to 6 inputs in any combination and output the image in SDI, HDMI and CV formats. Both pre-programmed and customizable screen divisions are supported.

Kramer Electronics MV-6 Features

  • Maximum input data rate of up to 3 Gbps
  • HDTV Compatible
  • Medically Certified - Compliant with the IEC60601-1-2 standard for medical electrical equipment
  • Kramer re-Klocking & Equalization Technology - Rebuilds the digital signal to travel longer distances
  • Multi-Standard Operation - SDI (SMPTE 259M), HD-SDI (SMPTE 292M) and 3G HD-SDI (SMPTE 424M)
  • Re-Clocking Looping Inputs
  • Multi-Video Output Formats - 3G HD-SDI (SMPTE 424M), HDMI and composite, scaling, refresh rate and video standard conversion
  • Front Panel Preview Screen - 16:9 4.3in color LCD displaying the output of the unit
  • Text Overlay - A text label/icon can be added inside each window. Each label has text/background color, alignment, size, etc settings
  • Screen Handling Buttons - Freeze, size, position and 4 pre-programmed and 2 user-definable layouts
  • Flexible Control Options - Front panel with 2-row LCD, OSD, Ethernet & RS-232 (supplied with PC control software)
  • Worldwide Power Supply - 100-240V AC
  • Standard 19" Rack Mount Size - 2U. Rack "ears" included

Warranty Information

This product has a limited warranty of 84 months.

Key Features

  • Seamlessly manage multiple SDI feeds with the Kramer MV-6 Multiviewer.
  • Display up to six SD/HD/3G HD-SDI inputs on a single HDMI output for efficient monitoring.
  • Achieve superior video clarity with up to 2.97 Gbps data rate for pristine images.
  • Control via front panel, RS-232, or Ethernet for flexible system integration options.
  • Rack-mountable 2U design optimizes space in broadcast or production environments.
  • Enjoy multi-standard support ensuring compatibility across various video formats.

What's in the box:

  • Kramer Electronics MV-6 3G HD-SDI Multiviewer
  • Power Cord
  • Rack Ears
  • Kramer Electronics 7 Year Limited Warranty
