Kramer Electronics Kramer PT103V 1:3 Video Distribution Amplifier
See all Kramer Electronics items

Kramer Electronics PT-103V 1:3 Composite Video Distribution Amplifier

SKU: KRPT103V
Be the first to review this item

This item is no longer available.

Recommended Alternatives

Kramer Electronics VM-30AVB: Picture 1 regular
Kramer Electronics Kramer VM30AVB 1:3 Video/Audio Distribution Amplifier
$255.00$204.00
Kramer Electronics VM-3VN: Picture 1 regular
Kramer Electronics VM-3VN 1:3 Composite Video Amplifier
$160.00
See More Recommendations
Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Kramer Electronics PT-103V Specifications

  • Input

    1 Video, 1Vpp/75 Ohm on an RCA connector

  • Output

    3 Video, 1Vpp/75 Ohm on RCA connector

  • Max. Output Level

    1.9Vpp

  • Bandwidth (-3dB)

    407MHz

  • Diff. Gain

    0.04%

  • Diff. Phase

    0.03Deg

  • K-factor

    <0.05%

  • S/N Ratio

    78dB

  • Controls

    Gain: -1.2dB to +6.2dB, EQ.: 0 to + 6.1dB, 50MHz

  • Coupling

    AC

  • Power Source

    12V DC, 28mA

  • Dimensions

    6.2cm x 5.2cm x 2.4cm (2.44" x 2.05" x 0.94") W x D x H

  • Weight

    0.14kg (0.31lbs) approx.

  • Warranty

    Kramer 7 years limited warranty

About Kramer Electronics PT-103V

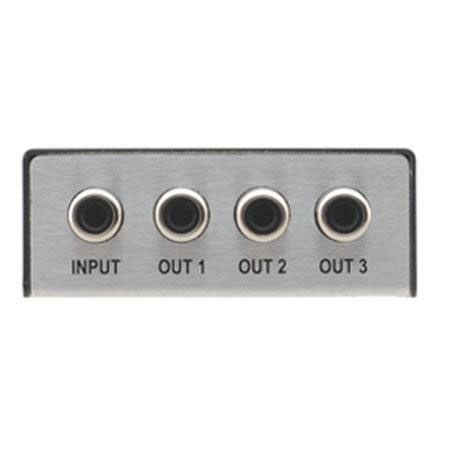

The Kramer PT-103V is a composite video distribution amplifier. It takes one input, provides correct buffering and isolation and distributes the signal to three identical outputs.

Kramer Electronics PT-103V Features

  • High Bandwidth - 407MHz (-3dB)
  • Level (Gain) and EQ (Peaking) Controls
  • Ultra Compact PicoTOOLS - 4 units can be rack mounted side-by-side in a 1U rack space with the optional RK-4PT rack adapter

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • High Bandwidth - 407MHz (-3dB)
  • Level (Gain) and EQ (Peaking) Controls

What's in the box:

  • Kramer PT-103V 1:3 Composite Video Distribution Amplifier
  • Power Supply
  • Mounting Bracket
  • Kramer 7 Years Limited Warranty
