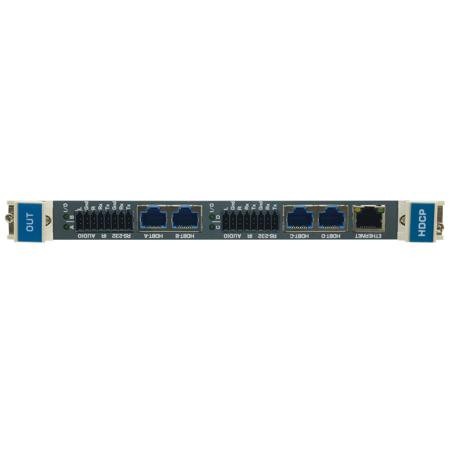

Kramer Electronics DTAxr-OUT4-F32 4-Channel 4K60 4:2:0 HDMI over Extended Reach HDBaseT Output Card with Selectable Embedded or De-Embedded Analog Audio

SKU: KRROUT4F32SE MFR: 20-70010198
Earn VIP Reward Points

Key Features

  • Enjoy reliable connection with this 4-channel HDBaseT output card for video signals.
  • Achieve high resolution video up to 4K60 4:2:0, perfect for professional display systems.
  • Easy setup with HDBaseT TP on RJ-45 connectors, simplifying your video distribution.
  • Extend your reach up to 100m (4K) or 130m (2K) using Kramer HDBaseT cables for flexibility.
  • Ensure good compatibility with HDCP 1.4, HDMI 1.3a, and HDBaseT standard compliance.
  • Selectable embedded/de-embedded analog audio offers versatile audio management options.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$99.99

3 Year

$159.99

4 Year

$191.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Kramer Electronics DTAxr-OUT4-F32 Specifications

  • Applications

    Professional display systems requiring video signal routing
    Broadcast, presentation and production facilities, as well as monitoring in large duplication systems
    Rental and staging

  • Inputs

    4 HDBaseT TP on RJ-45 connectors
    4 Balanced audio on terminal block connectors

  • Ports

    4 RS-232 and 4 IR on 10 pin terminal blocks for bidirectional RS-232 and IR extension
    1 Ethernet on an RJ-45 connector for bidirectional Ethernet extension

  • Bandwidth Per Channel

    Video: 3.4Gbps
    Serial data: 115200

  • Total Bandwidth

    Video: 10.2Gbps
    Serial data: 115200

  • Maximum Range

    Up to 100m at normal mode (4K), up to 130m (430ft) at normal mode (2K), up to 180m (590ft) ultra mode (1080p at 60Hz at 24bpp)
    Note: When using Kramer HDBaseT cables

  • 3D Pass Through

    Supported

  • Extended Ethernet

    Up to 100Mbps extended line rate bandwidth

  • Extended RS-232

    300 to 115200 baud rate

  • Power Consumption

    26W

  • Operating Temperature

    0 to 40 deg. C (32 to 104 deg. F)

  • Storage Temperature

    -40 to 70 deg. C (-40 to 158 deg. F)

  • Humidity

    10% to 90%, RHL non-condensing

  • Standard Compliance

    HDCP 1.4, HDMI 1.3a, HDBaseT

  • Safety Regulatory Compliance

    CE

  • Environmental Regulatory Compliance

    Complies with appropriate requirements of RoHs and WEEE

  • Dimensions

    22 x 18.8 x 2cm (8.66 x 7.40 x 0.79")

  • Weight

    0.2kg (0.44 lbs)

  • UPC Code

    7291063085483

About Kramer Electronics DTAxr-OUT4-F32

Why settle for less when you can enhance your digital matrix switching capabilities with the DTAxr-OUT4-F32 This advanced 4-channel HDMI over HDBaseT output card is specifically designed for integration with the VS-3232 Series Modular Multi-Format Digital Matrix Switchers, offering a seamless solution for audiovisual professionals.

The DTAxr-OUT4-F32 stands out with its ability to transmit four robust extended reach HDBaseT signals, ensuring that your high-definition content is delivered with the clarity and precision that 4K60 4:2:0 resolution provides. Each channel is equipped with analog audio support, facilitating both embedded and de-embedded audio signals through the same jack for maximum flexibility.

With HDBaseT technology at its core, this output card is not only HDTV compatible but also maintains HDCP compliance, ensuring that your content is securely transmitted without compromising on quality. The system's range is impressive, reaching up to 100 meters in normal mode for 4K signals, and extending even further to 130 meters (430 feet) for 2K and up to 180 meters (590 feet) in ultra mode for 1080p at 60Hz at 24bpp, when paired with Kramer HDBaseT cables.

The DTAxr-OUT4-F32 doesn't stop at video and audio. It also includes Ethernet extension capabilities, supporting bidirectional data flow and enabling up to 100Mbps Ethernet connectivity. This feature is essential for LAN communication and device control over extended distances, making it a versatile tool for complex installations.

Furthermore, the card's bidirectional RS-232 and infrared extensions offer additional control flexibility. Serial interface data can flow in both directions, allowing for comprehensive data transmission and device control. Similarly, the IR interface supports remote control functionality for peripheral devices located at either end of the extended line.

In summary, the DTAxr-OUT4-F32 is a powerhouse for transmitting high-quality video and audio signals over long distances while providing the added benefits of Ethernet, RS-232, and IR control. Its integration into your VS-3232 Series Modular Multi-Format Digital Matrix Switchers will elevate your AV setup to new heights of performance and reliability.

Kramer Electronics DTAxr-OUT4-F32 Features

  • 4-channel 4K60 4:2:0 HDMI over HDBaseT output card for enhanced AV signal transmission
  • Compatible with VS-3232 Series Modular Multi-Format Digital Matrix Switchers
  • Selectable embedded or de-embedded analog audio for versatile audio integration
  • Extended system range up to 180m with ultra mode for uncompromised signal quality
  • Bidirectional RS-232 and IR for remote device control over extended distances
  • Supports up to 100Mbps Ethernet connectivity for reliable LAN communication

Warranty Information

This product has a limited warranty of 84 months.

Key Features

  • Enjoy reliable connection with this 4-channel HDBaseT output card for video signals.
  • Achieve high resolution video up to 4K60 4:2:0, perfect for professional display systems.
  • Easy setup with HDBaseT TP on RJ-45 connectors, simplifying your video distribution.
  • Extend your reach up to 100m (4K) or 130m (2K) using Kramer HDBaseT cables for flexibility.
  • Ensure good compatibility with HDCP 1.4, HDMI 1.3a, and HDBaseT standard compliance.
  • Selectable embedded/de-embedded analog audio offers versatile audio management options.

What's in the box:

  • Kramer Electronics DTAxr-OUT4-F32 4-Channel 4K60 4:2:0 HDMI over Extended Reach HDBaseT Output Card
  • Kramer Electronics 7 Year Limited Warranty
