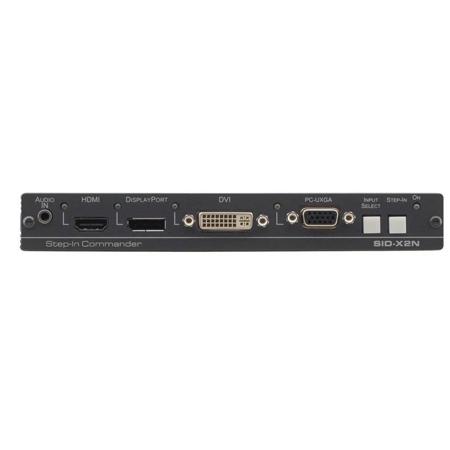

Kramer Electronics SID-X2N 4-Input Multi-Format Video over HDBaseT Transmitter & Step-In Commander

The SID-X2N is an HDBaseT twisted pair transmitter and step-in commander for computer graphics video, HDMI, DVI, DisplayPort and unbalanced stereo audio signals.

• Max. Data Rate: 6.75Gbps (up to 1080p at 60Hz 36bpp) in normal mode; up to 4.95Gbps (up to 1080p at 60Hz 24bpp) in ultra mode
• HDTV Compatible
• HDCP Compliant: Works with sources that support HDCP repeater mode
• HDMI Support: Deep Color, x.v.Color and 3D
• I-EDIDPro Kramer Intelligent EDID Processing: Intelligent EDID handling & processing algorithm ensures Plug and Play operation for HDMI systems
• Data Equalization and Reclocking
• Input Signal Detection: Based on video clock presence
• Automatic Input Selection: Based on manual selection or last connected input
• Automatic Analog Audio Detection and Embedding
• Local Balanced Audio De-Embedding
• Support for Digital Audio Formats
• Lockable EDID
• Local Step-In Switching: Button & contact closure
• Power Supply: Requires independent power supply

System Range
Up to 130m (430') at normal mode (2K), up to 100m at normal mode (4K); up to 180m (590') ultra mode (1080p at 60Hz, 24bpp) when using BC-HDKat6a cables.

Applications
• Boardrooms
• Presentation rooms
