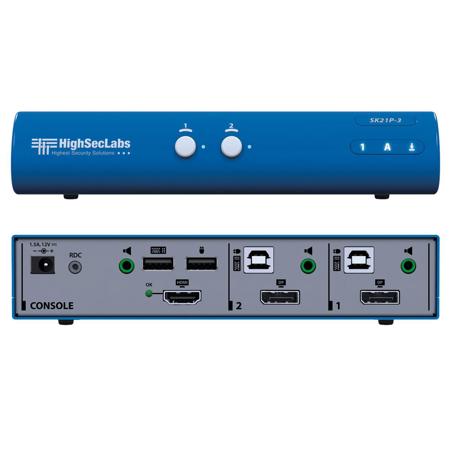

Kramer Electronics SK21P-3 HighSecLabs Secure 2-Port DisplayPort KVM Switch, Protection Profile Version 3.0

SKU: KRSK2PN10283 MFR: 22-00001490
Earn VIP Reward Points

Key Features

  • Enhance security with this Kramer 2-Port DisplayPort KVM switch, certified with NIAP PP3.0.
  • Enjoy seamless 4K30 UHD resolution (3840x2160) at 30Hz for crisp, clear visuals via KVM.
  • This KVM switch supports Windows, Linux, and Mac, offering versatile OS compatibility.
  • Connect multiple computers using DisplayPort 1.2 and USB-B ports for efficient KVM switching.
  • Use the integrated audio ports on this KVM for clear, unbalanced stereo sound output.
  • Rely on robust build quality, backed by a 7-year warranty for long-term KVM switch performance.
See More Product Details

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Kramer Electronics SK21P-3 Specifications

  • Console Ports

    1 x HDMI 1.4 connector, 2 USB-A connectors for keyboard and mouse, 1 3.5mm mini jack for unbalanced stereo audio, 1 3.5mm mini jack connector for control (RDC)

  • Computer Ports

    2 DisplayPort 1.2 connectors, 2 USB-B connectors for keyboard and mouse, 2 3.5mm mini jacks for unbalanced stereo audio

  • Max Resolution

    4K30 UHD (3840X2160 at 30Hz)

  • Power Requirements

    12V DC, 1.5A

  • Power Type

    External

  • Operating Temperature

    0 to 40 deg. C (32 to 104 deg. F)

  • Storage Temperature

    -20 to 60 deg. C (-4 to 140 deg. F)

  • Humidity

    0-80% RH, non-condensing

  • Supported Os

    Windows, Linux, Mac

  • Security Certification

    NIAP Common Criteria PP3.0 for Peripheral Sharing Switch (PSS) devices

  • Product Certification

    CE, RCM, FCC class B, VCCI, TUV US, TUV Canada

  • Product Life-cycle

    10 years

  • Dimensions (WxDxH)

    17.70 x 8.20 x 3.50cm (6.97 x 3.23 x 1.38")

  • Weight

    1.1 lbs (0.50kg)

  • UPC Code

    7290108020755

About Kramer Electronics SK21P-3

Experience unparalleled security and efficiency with the SK21P-3 HighSecLabs Secure 2-Port DisplayPort KVM Switch, a compact and high-tech solution for managing multiple devices with a single set of peripherals. This advanced KVM switch is engineered to facilitate seamless switching between two distinct security-level networks or computers, ensuring that your sensitive data remains protected at all times.

The SK21P-3 boasts a small-form-factor design, conserving valuable desktop space without compromising on functionality. With support for DisplayPort 1.2, users can enjoy crystal-clear video quality with resolutions up to 3840x2160 30bpp at a smooth 60Hz, and a high-bandwidth 17.28Gbps on a 4-lane link, connecting two computers to a single display for an optimized workspace.

Security is at the forefront of the SK21P-3's design, featuring a patented AUX channel firewall technology that effectively blocks leakage and signaling attacks. The switch is fortified with unidirectional optical data diodes, ensuring USB peripheral isolation and preventing data from flowing back to the devices. This level of security is further enhanced by the hardware-based peripheral isolation, which eliminates reliance on vulnerable firmware or software, with all firmware securely stored on ROM, and no keyboard buffering or memory to exploit.

The SK21P-3 is not only secure but also reliable, with full USB device filtering to support only keyboard and mouse peripherals, thereby reducing the risk of unauthorized data transfers. An active anti-tampering system, complete with holographic tampering evident labels, provides an additional layer of security, maintaining integrity with a decade-long battery life.

This innovative KVM switch is NIAP Common Criteria Protection Profile version 3.0 (PP3.0) certified, representing the highest security standard by design for Peripheral Sharing Switch (PSS) devices. It is the ideal choice for high-security organizations, government agencies, military operations, financial institutions, and any other environments where the safeguarding of sensitive and confidential information is paramount.

Choose the SK21P-3 HighSecLabs Secure 2-Port DisplayPort KVM Switch for a reliable, advanced, and secure solution to manage your critical operations with ease and confidence.

Kramer Electronics SK21P-3 Features

  • Secure 2-port DisplayPort KVM switch with NIAP PP3.0 certification
  • Supports DisplayPort 1.2 with up to 4K Ultra HD resolution at 60Hz
  • Small-form-factor design for minimal desktop footprint
  • Patented AUX channel firewall for maximum signal security
  • Hardware-based peripheral isolation with unidirectional optical data diodes
  • Active anti-tampering system with a 10-year battery life and tamper-evident seals

Warranty Information

This product has a limited warranty of 84 months.

Key Features

  • Enhance security with this Kramer 2-Port DisplayPort KVM switch, certified with NIAP PP3.0.
  • Enjoy seamless 4K30 UHD resolution (3840x2160) at 30Hz for crisp, clear visuals via KVM.
  • This KVM switch supports Windows, Linux, and Mac, offering versatile OS compatibility.
  • Connect multiple computers using DisplayPort 1.2 and USB-B ports for efficient KVM switching.
  • Use the integrated audio ports on this KVM for clear, unbalanced stereo sound output.
  • Rely on robust build quality, backed by a 7-year warranty for long-term KVM switch performance.

What's in the box:

  • Kramer Electronics SK21P-3 HighSecLabs Secure 2-Port DisplayPort KVM Switch
  • DC Power Supply
  • User Guide
  • Kramer Electronics 7 Year Limited Warranty
