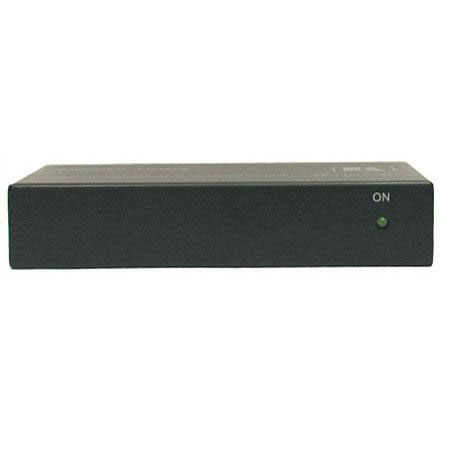

Kramer Electronics TP-102HD Computer Graphics Video and HDTV Over Twisted Pair Transmitter

SKU: KRTP102HD MFR: TP-102HD
Earn VIP Reward Points

Key Features

  • Extend your VGA video signal reliably with this twisted pair transmitter.
  • Enjoy easy setup with this compact video transmitter, perfect for any space.
  • Achieve high-quality HDTV transmission over twisted pair cables effortlessly.
  • Utilize this affordable transmitter for clear computer graphics video output.
  • Ensure low latency video transmission for seamless viewing experiences today.
  • Get long-range video and stereo audio transmission with Kramer Electronics.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$19.99

2 Year

$29.99

3 Year

$39.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Kramer Electronics TP-102HD Specifications

  • Inputs

    1 VGA on a 15-pin HD connector

  • Outputs

    2 RJ-45 OUT connectors

  • Max. Output Level

    1.7Vpp

  • Diff. gain

    0.75%

  • Diff. phase

    0.05Deg.

  • K-Factor

    0.10%

  • S/N Ratio

    73dB

  • Controls

    2 switches for sync inversion

  • Coupling

    AC

  • Power Source

    12V DC, 450mA

  • Dimensions (W x H x D)

    12cm x 7.15cm x 2.76cm (4.7" x 2.8" x 1.08")

  • Weight

    0.3kg (0.67lbs) approx

  • UPC Code

    7291063028817

About Kramer Electronics TP-102HD

The TP-102HD Computer Graphics Video & HDTV over Twisted Pair Transmitter from Kramer Electronics is the transmitter in a paired transmitter-receiver solution designed for sending computer graphics video and HDTV signals over twisted-pair cabling.

This solution is well suited for use in studios, airports, offices, security & military installations and hospitals, among many other similar settings and uses. It supports resolutions up to UXGA and 1080p with a system range of 300'. The unit may be used with unshielded twisted-pair cable such as CAT5. Other features include horizontal and vertical sync polarity selection.

The unit features Kramer's Power Connect technology, meaning that only one device in the system needs to be connected to an electrical source to power all system units (all units in the system must have Power Connect to use this feature). It also belongs to the Kramer TOOLs family of products and up to (3) units can be mounted side by side in a standard 19" equipment rack by using the optional RK-3T rack kit.

Kramer Electronics TP-102HD Features

  • Power Connect System: A single connection to the transmitter or the receiver powers both units when the devices are within 150ft (50m) of each other
  • Cable: UTP (unshielded twisted pair) or STP (shielded twisted pair) cable such as CAT 5
  • Sync Polarity Settings: H & V switches for improved HDTV compatibility with the CAT 5 outputs
  • Compact Kramer TOOLS: 3 units can be rack mounted side-by-side in a 1U rack space with the optional RK-3T rack adapter

Warranty Information

This product has a limited warranty of 84 months.

Product Documents

User Manual

Key Features

  • Extend your VGA video signal reliably with this twisted pair transmitter.
  • Enjoy easy setup with this compact video transmitter, perfect for any space.
  • Achieve high-quality HDTV transmission over twisted pair cables effortlessly.
  • Utilize this affordable transmitter for clear computer graphics video output.
  • Ensure low latency video transmission for seamless viewing experiences today.
  • Get long-range video and stereo audio transmission with Kramer Electronics.

What's in the box:

  • Kramer Electronics TP-102HD Video and Stereo Audio Transmitter
  • Power Supply
  • Kramer Electronics 7 Year Limited Warranty
