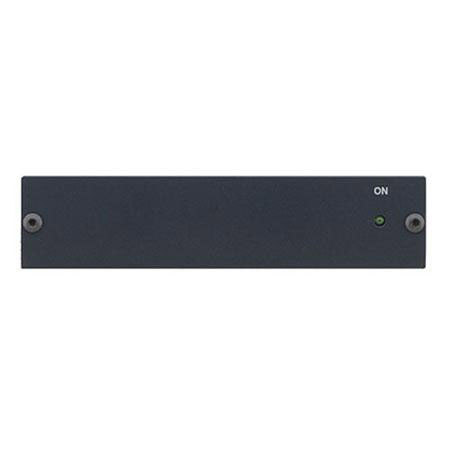

Kramer Electronics TP-112HD 1:2 Computer Graphics Video and HDTV Over Twisted Pair Transmitter
SKU: KRTP112HD
This item is no longer available.
Share:
Overview
Compare
Specs
Protection
About Kramer Electronics TP-112HD
The TP-112HD 1:2 Computer Graphics Video & HDTV over Twisted Pair Transmitter from Kramer Electronics is the transmitter in a paired transmitter-receiver solution designed for sending computer graphics video and HDTV signals over (2) identical twisted-pair cables. This solution is well suited for use in studios, airports, offices, security & military installations and hospitals, among many other similar settings and uses.
It offers bandwidth capacity of up to 150MHz, is HDTV compatible and has a system range of 300'. The unit may be used with unshielded twisted-pair cable such as CAT5. Other features include horizontal and vertical sync polarity selection. The unit features Kramer's Power Connect technology, meaning that only one device in the system needs to be connected to an electrical source to power all system units (all units in the system must have Power Connect to use this feature).
It also belongs to the Kramer TOOLs family of products and up to (3) units can be mounted side by side in a standard 19" equipment rack by using the optional RK-3T rack kit.
Kramer Electronics TP-112HD Features
- Power Connect System: A single connection to the transmitter or the receiver powers both units when the devices are within 150ft (50m) of each other
- Long System Range: Up to 100m (320ft). Greater distances possible depending on signal resolution and cable
- Cable Type: Uses UTP (unshielded twisted pair) or STP (shielded twisted pair) cable such as CAT 5
- Sync Polarity Settings: H & V switches for improved HDTV compatibility with the CAT 5 outputs
- Compact Kramer TOOLS: 3 units can be rack mounted side-by-side in a 1U rack space with the optional RK-3T rack adapter
