Kramer Electronics TP-125XL Computer Graphics Video/Stereo Audio & Bidirectional RS-232 Over Twisted Pair Transmitter with EDID, HDTV Compatible

SKU: KRTP125XL MFR: TP-125XL
Earn VIP Reward Points

Key Features

  • Extend your video and audio signals up to 820 feet with this reliable transmitter.
  • Enjoy high resolution video up to WUXGA and 1080p with low latency over twisted pair.
  • This video transmitter supports bidirectional RS-232 for seamless remote control.
  • Achieve wide compatibility with computer graphics video and stereo audio devices.
  • Perfect for presentations, transmit high-quality video with easy setup and control.
  • Get great value with this Kramer video transmitter, ensuring a dependable connection.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$34.99

2 Year

$59.99

3 Year

$79.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Kramer Electronics TP-125XL Specifications

  • Input

    1 Computer graphics on a 15-pin HD connector, 1 unbalanced stereo audio on a 3.5mm mini jack, 1 bidirectional RS-232 on a 3-pin terminal block

  • Output

    1 Twisted pair on an RJ-45 connector

  • Resolution

    Up to WUXGA and 1080p

  • RS-232 Baud Rate

    Up to 115.2kbps

  • RS-232 Mode

    Full-duplex

  • Audio Bandwidth(-3Db)

    20Hz to 20kHz at -3dB

  • S/N Ratio

    Video: 58dB unweighted, 68.3dB at 5MHz weighted; Audio: <-84dB

  • Total Gain

    Audio: Analog/analog: 0dB; Analog/SPDIF: -12dBFS

  • Coupling

    AC.

  • Thd+N

    Audio: <0.02%.

  • Power Consumption

    12V DC, 450mA

  • Range

    Up to 250m (820.2')

  • Operating Temperature

    0deg. to +40deg.C (32deg. to 104deg.F)

  • Storage Temperature

    -40deg. to +70deg.C (-40deg. to 158deg.F)

  • Humidity

    10% to 90%, RHL non-condensing

  • Dimensions (W x D x H)

    12.1 x 7.18 x 2.42cm / 4.76 x 2.8 x 0.95"

  • Weight

    0.48kg / 1.05lbs (Approx.)

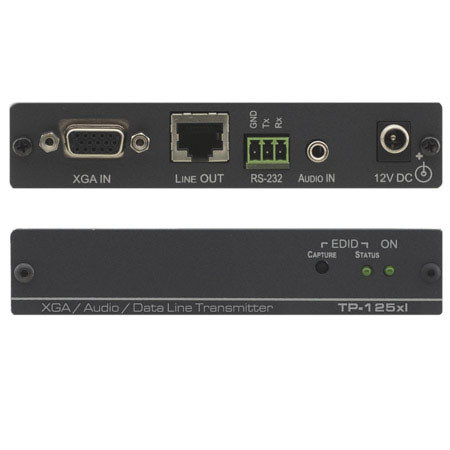

About Kramer Electronics TP-125XL

The Kramer Electronics TP-125XL is an extended range twisted pair transmitter for computer graphics video, unbalanced stereo audio and bidirectional RS-232 control command signals. It converts the input signals to a twisted pair signal and transmits them over CAT 5 cable to a compatible receiver.

Kramer Electronics TP-125XL Features

  • Max. Resolution-WUXGA & 1080p
  • HDTV Compatible
  • System Range-More than 820' (more than 250m)
  • EDID Capture-Copies and stores the EDID from a display device
  • Cable-STP (shielded twisted pair) such as Kramer BC-STP CAT 5/6
  • Bidirectional RS-232 Interface-Commands and data can flow in both directions via the RS-232 interface, allowing status requests and control of the destination unit
  • Compact Kramer TOOLS-3 units can be rack mounted side-by-side in a 1U rack space with the optional RK-3T rack adapter

Warranty Information

This product has a limited warranty of 84 months.

Key Features

  • Extend your video and audio signals up to 820 feet with this reliable transmitter.
  • Enjoy high resolution video up to WUXGA and 1080p with low latency over twisted pair.
  • This video transmitter supports bidirectional RS-232 for seamless remote control.
  • Achieve wide compatibility with computer graphics video and stereo audio devices.
  • Perfect for presentations, transmit high-quality video with easy setup and control.
  • Get great value with this Kramer video transmitter, ensuring a dependable connection.

What's in the box:

  • Kramer Electronics Graphics Video/Stereo Audio & Bidirectional RS-232 Over Twisted Pair Transmitter
  • Power Supply
  • Kramer Electronics 7 Year Limited Warranty
