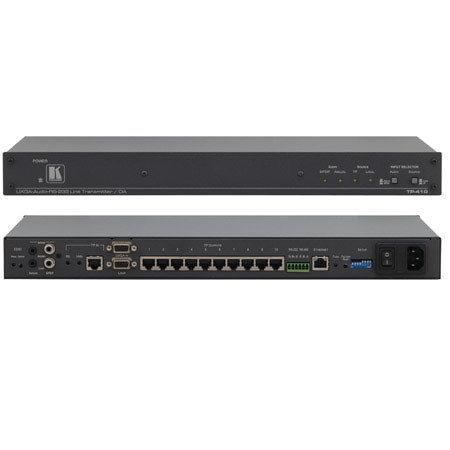

Kramer Electronics 1:10 Computer Graphics Video, Audio & RS-232 Over Twisted Pair Transmitter & Distribution Amplifier

SKU: KRTP410 MFR: TP-410
Earn VIP Reward Points

Key Features

  • Distribute high-resolution UXGA video signals to 10 displays using twisted pair cables.
  • Achieve reliable performance with this video distribution amplifier, perfect for presentations.
  • Enjoy easy setup with included software for managing your video and audio distribution system.
  • Control via RS-232/RS-485/Ethernet ensures seamless integration with existing control systems.
  • Supports WUXGA & 2k resolutions, ensuring your visuals are crisp and clear on every screen.
  • Extend audio & video with low latency over twisted pair, ideal for live streaming setups.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$99.99

3 Year

$119.99

4 Year

$154.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Kramer Electronics TP-410 Specifications

  • Inputs

    1 UXGA on a 15-pin HD connector, 1 unbalanced stereo audio on a 3.5mm mini jack, 1 S/PDIF on an RCA connector, 1 twisted pair on an RJ-45 connector

  • Outputs

    10 twisted pairs on RJ-45 connectors, 1 UXGA on 15-pin HD connectors, 1 unbalanced stereo audio 3.5mm mini jacks, 1 S/PDIF on RCA connectors

  • Control Ports

    RS-232 3-pin terminal block (data and control), RS-485 3-pin terminal block (data and control), RJ-45 Ethernet (data and control)

  • Resolution

    Up to WUXGA (1920 x 1200) and 2k

  • Max. Output Level

    Video: 1.6Vpp, Audio: 2.3Vpp

  • Controls

    RS-232/RS-485/Ethernet program control, source control from front panel, TP-IN level and equalization from rear panel

  • Serial Baud Rate

    Up to 19200 bps

  • Serial Mode

    Full-duplex

  • Bandwidth

    AUDIO: 20Hz to 20kHz at 0.5dB

  • S/N Ratio

    Audio: <-80dB

  • Total Gain

    Audio: 0dB

  • Coupling

    Audio: AC

  • Audio THD + Noise

    <0.03%

  • Operating Temperature

    0deg. to +40deg.C (32deg. to 104deg.F)

  • Storage Temperature

    -40deg. to +70deg.C (-40deg. to 158deg.F)

  • Humidity

    10% to 90%, RHL non-condensing

  • Power Consumption

    100-240V AC, 16VA

  • Dimensions (W x D x H)

    48.26 x 19.1cm x 1U (19 x 7.51" x 1U)

  • Weight

    3.8 kg / 8.37 lbs

About Kramer Electronics TP-410

From the renowned brand of Kramer Electronics, the TP-410 is a high-performance 1:10 Computer Graphics Video, Audio & RS-232 Over Twisted Pair Transmitter & Distribution Amplifier. This advanced device is expertly designed to amplify and distribute computer graphics up to WUXGA resolution, ensuring superior image quality for your multimedia needs.

In addition to its graphics capabilities, the TP-410 also supports twisted pair video, unbalanced stereo, and S/PDIF audio, making it a versatile choice for diverse audio-visual applications. The bi-directional RS-232 signals further enhance its functionality, providing seamless communication between devices.

The TP-410 stands out with its ability to distribute the RS-232 and selected audio/video inputs to ten twisted pair outputs. This feature allows for efficient distribution of high-quality signals across multiple outputs, making it an ideal solution for large-scale presentations, professional broadcasting, and high-end home theater systems.

In essence, the Kramer Electronics TP-410 is not just a distribution amplifier; it's a comprehensive solution for your audio-visual signal transmission and distribution needs, ensuring high-quality, consistent performance across multiple devices.

Kramer Electronics TP-410 Features

  • Resolution - Up to and including WUXGA (1920x1080)
  • Selectable Inputs - Local or twisted pair (WUXGA, audio and RS-232)
  • Data Handling - Extensive bidirectional RS-232 embedding, de-embedding and other options
  • Selectable Analog or Digital Audio Input
  • EDID Capture - Copies and stores the EDID from a display device
  • Transmission Range - Up to 300ft (100m) over STP cabling
  • Flexible Control Options - Front panel, RS-232, RS-485, Ethernet
  • Controls - Source selection buttons, power and source indicator LEDs, TP LEVEL and EQ trimmers
  • Worldwide Power Supply - 100-240V AC
  • Standard 19" Rack Mount Size - 1U. Rack "ears" included

Warranty Information

This product has a limited warranty of 84 months.

Key Features

  • Distribute high-resolution UXGA video signals to 10 displays using twisted pair cables.
  • Achieve reliable performance with this video distribution amplifier, perfect for presentations.
  • Enjoy easy setup with included software for managing your video and audio distribution system.
  • Control via RS-232/RS-485/Ethernet ensures seamless integration with existing control systems.
  • Supports WUXGA & 2k resolutions, ensuring your visuals are crisp and clear on every screen.
  • Extend audio & video with low latency over twisted pair, ideal for live streaming setups.

What's in the box:

  • Kramer Electronics 1:10 Computer Graphics Video
  • Power Cord
  • Windows Based Control Software
  • Rack "Ears "
  • Kramer Electronics 7 Year Limited Warranty
