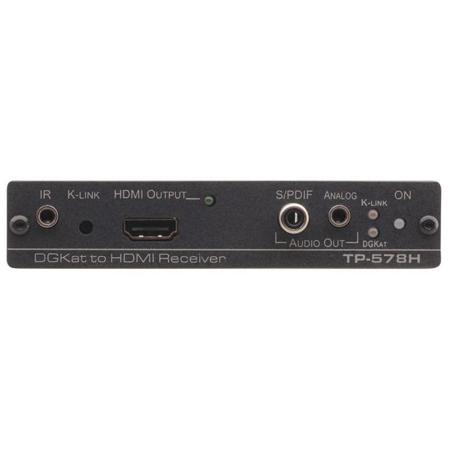

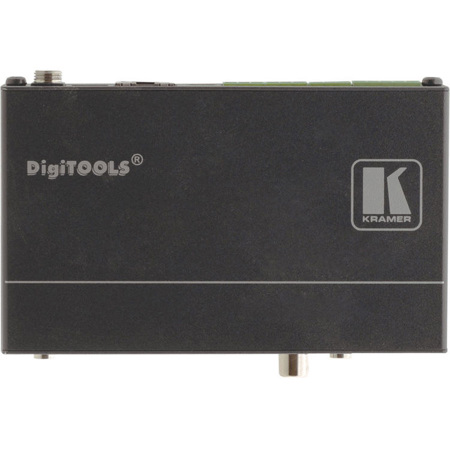

Kramer Electronics TP-578H HDMI, Audio & Data Over DGKat Twisted Pair Receiver

The TP-578H is a DGKat twisted pair receiver for HDMI, IR and control signals. The unit receives a DGKat twisted pair signal from a compatible Kramer DGKat transmitter (such as a TP-577VH) and decodes it into HDMI, balanced and unbalanced stereo, S/PDIF digital audio, IR and RS-232 signals.

• Max. Data Rate: 4.95Gbps (1.65Gbps per graphic channel)
• HDTV Compatible
• HDCP Compliant
• HDMI Support: x.v. Color, 3D and 7.1 multi-channel audio
• Kramer Equalization & re-Klocking Technology: Rebuilds the digital signal to travel longer distances
• K-Link: Kramer's technology for controlling the device from a remote controller and passing data to external devices
• Controls: IR data transceiver
• Configurable External Control
• Analog and Digital Audio De-Embedding
• Indicators: LEDs for mirroring

System Range
Up to 90m (295') at 1080i or up to 30m (98') at 1080p on shielded BC-DGKat524 cable. Up to 90m (295') at 1080i or up to 70m (230') at 1080p on shielded BC-DGKat623 cable. Up to 100m (330') at 1080i or up to 90m (295) at 1080p on shielded BC-DGKat7a23 cable.

Cable
Requires STP (shielded twisted pair) cable. For optimum range and performance, use Kramer's BC-DGKat623 or BC-DGKat7a23 cables. Note that the transmission range depends on the signal resolution, graphics card and display used. The distance using non-Kramer CAT 6 and CAT 7 cables may not reach these ranges. Use only shielded cable where both ends of the shield are soldered to ground.

DGKat Signal Integration
Kramer's unique technology for converting TMDS as well as control and communication to signals that run over twisted pair cables. They strongly recommend using Kramer DGKat cables designed specifically for optimum performance.

PowerConnectPlus
A single connection to the transmitter or the receiver powers both units. The higher voltage PowerConnectPlus also powers regular PowerConnect devices via auto-negotiation.

Applications
• Boardrooms
• Presentation rooms
