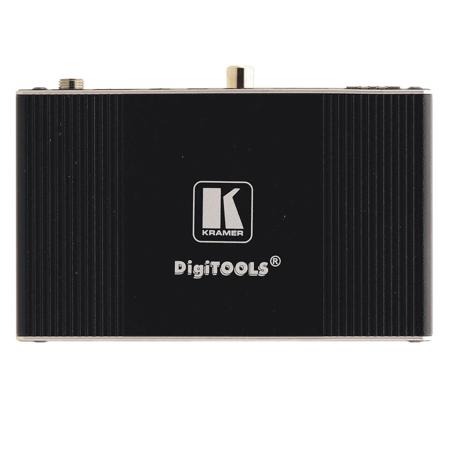

Kramer Electronics TP-580RA 4K60 4:2:0 HDMI Receiver with RS-232, IR & Stereo Audio De-embedding over Long-Reach HDBaseT

Be at the forefront of technology with the TP-580RA 4K60 4:2:0 HDMI Receiver, a high-performance, long-reach HDBaseT receiver designed to deliver 4K at 60Hz (4:2:0) HDMI, RS-232, IR, and stereo audio signals over twisted pair. This advanced device de-embeds the stereo audio signal on its digital and analog audio ports, extending video signals up to 40m (130ft) over CAT copper cables at up to 4K at 60Hz (4:2:0) 24bpp video resolution, and even further for lower HD video resolutions.

As a standard extender, the TP-580RA is compatible with any market-available HDBaseT-compliant extension product. For optimal extension reach and performance, it is recommended to use Kramer cables. This device is HDMI 2.0 and HDCP 1.4 compliant, supporting deep color, x.v.Color, lip sync, HDMI uncompressed audio channels, Dolby TrueHD, DTS-HD, 2K, 4K, and 3D. It also ensures seamless operation for HDMI source and display systems with its I-EDIDPro Kramer Intelligent EDID Processing.

The TP-580RA supports up to 32 channels of digital stereo uncompressed signals, providing studio-grade surround sound. It also features audio de-embedding (extraction) according to auto-sensed signal attributes and user selection. The transmitted digital audio signal is de-embedded or the Audio Return Channel (ARC) signal is extracted from the AV signal, allowing high-quality audio playback by routing the audio to external speakers in parallel to the local speakers found on the connected AV acceptor device.

This HDMI receiver also offers bidirectional RS-232 and Infrared extensions, allowing data transmission and device control. Its status LED indicators for HDMI and HDBT ports facilitate easy local maintenance and troubleshooting. The TP-580RA also allows for local firmware upgrades via RS-232 connection, ensuring lasting, field-proven deployment. Its compact DigiTOOLS fan-less enclosure allows for dropped-ceiling mounting or side-by-side mounting of 3 units in a 1U rack space with the recommended rack adapter. Experience the best in audio and video technology with the TP-580RA 4K60 4:2:0 HDMI Receiver.
