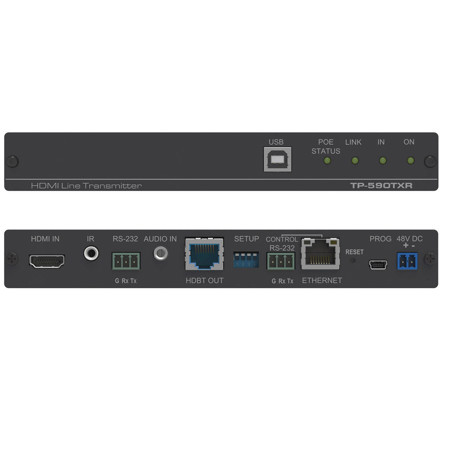

Kramer Electronics TP-590TXR 4K UHD HDMI/USB/Audio/RS-232 Over HDBaseT Transmitter

It's the TP-590TXR 4K UHD HDMI/USB/Audio/RS-232 Over HDBaseT Transmitter, a high-performance, durable, and reliable solution for transmitting 4K60Hz (4:2:0) HDMI, USB, Ethernet, RS-232, IR, and stereo audio signals over long distances. This innovative device from Kramer Electronics, a leader in the professional audio and video industry, converts all input signals into a transmitted HDBaseT 2.0 signal, ensuring high-quality audio and video transmission.

The TP-590TXR is capable of extending video signals up to 100m (330ft) over CAT copper cables, supporting up to 4K at 60Hz (4:2:0) 24bpp video resolution, and offering even further reach for lower HD video resolutions. This makes it an ideal choice for large venues, events, and commercial or residential applications such as home theaters, classrooms, corporate boardrooms, and houses of worship.

As a standard extender, the TP-590TXR can be connected to any HDBaseT-compliant extension product available in the market. It supports HDMI 2.0 and HDCP 1.4, deep color, x.v.Color, lip sync, HDMI uncompressed audio channels, Dolby TrueHD, DTS-HD, 2K, 4K, and 3D. EDID and CEC signals are passed through from the source to the display, ensuring seamless operation for HDMI source and display systems.

The TP-590TXR also features an intelligent EDID handling, processing, and pass-through algorithm, multi-channel audio transmission for studio-grade surround sound, and a selectable analog unbalanced stereo audio input that can be converted into a digital signal and embedded into the transmitted HDMI signal.

With its USB 2.0 interface, Ethernet connectivity, bidirectional RS-232 and Infrared extension, this user-friendly device allows for the extension of HID peripheral devices, LAN communication, and remote control of peripheral devices. It also facilitates easy local maintenance and troubleshooting with status LED indicators for HDMI and HDBT ports, and remote device management via built-in web UI and RS-232 connection.

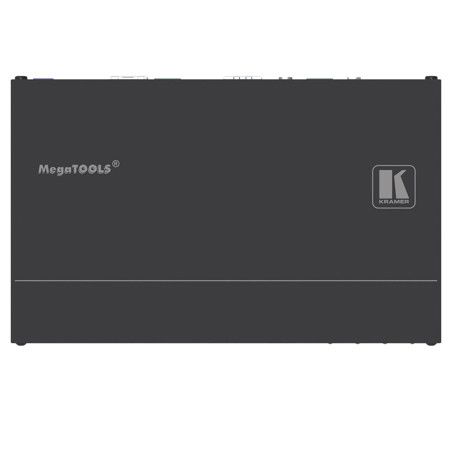

The TP-590TXR is designed for easy and elegant installation with single cable connectivity for both HDBaseT signals and power, and a compact MegaTOOLS fan-less enclosure for dropped-ceiling mounting or side-by-side mounting of 2 units in a 1U rack space. Experience the power of long-distance AV, USB, and LAN signal extension with the TP-590TXR 4K UHD HDMI/USB/Audio/RS-232 Over HDBaseT Transmitter.
