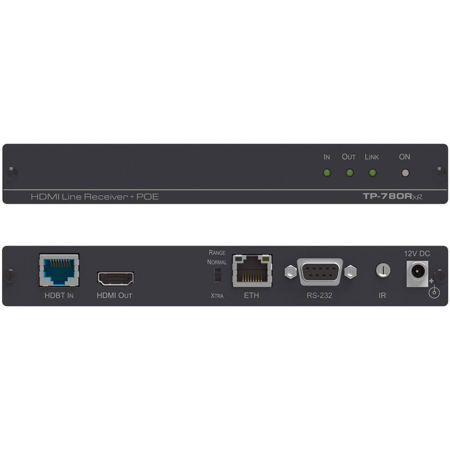

Kramer Electronics TP-780RXR 4K UHD HDMI, Ethernet, Bidirectional RS232 and IR Over Extended Range Twisted Pair HDBaseT Receiver with POE

The TP-780Rxr is a high-performance, extended-reach HDBaseT receiver for 4K at 60Hz (4:2:0) HDMI, Ethernet, RS-232 and IR signals over twisted pair. It extends video signals to up to 100m (330ft) over CAT copper cables at up to 4K at 60Hz (4:2:0) 24bpp video resolution and provides even further reach for lower HD video resolutions.

High Performance Standard Extender
Professional HDBaseT extender for providing extended-reach signals over twisted-pair copper infrastructures. TP-780Rxr is a standard extender that can be connected to any market-available HDBaseT-compliant extension product. For optimum extension reach and performance, use recommended Kramer cables.

HDMI Signal Extension
HDMI 2.0 and HDCP 2.2 compliant. Supports deep color, x.v.Color, lip sync, HDMI uncompressed audio channels, Dolby TrueHD, DTS-HD, 2K, 4K and 3D. EDID and CEC signals are passed through from the source to the display.

I-EDIDPro Kramer Intelligent EDID Processing
Intelligent EDID handling, processing and pass-through algorithm that ensures Plug and Play operation for HDMI source and display systems.

Multi-channel Audio Extension
Up to 32 channels of digital stereo uncompressed signals for supporting studio-grade surround sound.

Ethernet Extension
Ethernet interface data flows in both directions, allowing extension of up to 100Mbps Ethernet connectivity for LAN communication and device control.

Bidirectional RS-232 Extension
Serial interface data flows in both directions, allowing data transmission and device control.

Bidirectional Infrared Extension
IR interface data flows in both directions, allowing remote control of peripheral devices located at either end of the extended line.

Cost-effective Maintenance
Status LED indicators for HDMI and HDBT ports facilitate easy local maintenance and troubleshooting. Local firmware upgrade via RS-232 connection and the K-Upload tool ensures lasting, field-proven deployment.

Easy and Elegant Installation
Single cable connectivity for both HDBaseT signals and power. Compact MegaTOOLS fan-less enclosure for dropped-ceiling mounting or side-by-side mounting of 2 units in a 1U rack space with the recommended rack adapter.

Applications
• Long-distance AV and LAN signal extension for multi-room, large dividable auditoriums and lecture hall connectivity
• AV and LAN extension in conference rooms, boardrooms, control rooms, hotels and large church facilities
