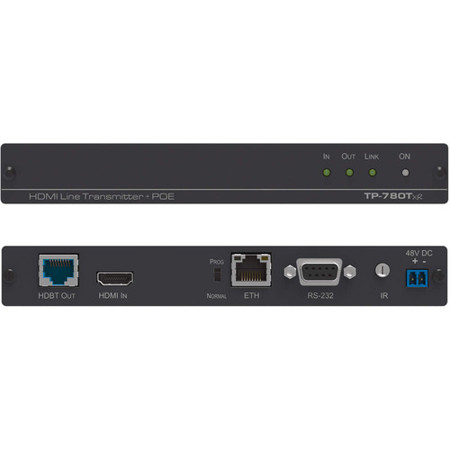

Kramer Electronics TP-780TXR 4K UHD HDMI, Ethernet, Bidirectional RS232 and IR Over Extended Range Twisted Pair HDBaseT Transmitter with POE

The TP-780Txr is a superior-performance, long-range HDBaseT transmitter, expertly designed to transmit 4K at 60Hz (4:2:0) HDMI, Ethernet, RS-232, and IR signals over twisted pair. This device ingeniously converts all input signals into a transmitted HDBaseT signal, extending video signals up to 100m (330ft) over CAT copper cables at up to 4K at 60Hz (4:2:0) 24bpp video resolution. It also offers further reach for lower HD video resolutions.

As a high-performance standard extender, the TP-780Txr is compatible with any HDBaseT-compliant extension product available in the market. For optimal extension reach and performance, it is recommended to use Kramer cables.

The TP-780Txr is HDMI 2.0 and HDCP 2.2 compliant, supporting deep color, x.v.Color, lip sync, HDMI uncompressed audio channels, Dolby TrueHD, DTS-HD, 2K, 4K, and 3D. It also ensures seamless EDID and CEC signals pass-through from the source to the display.

Featuring I-EDIDPro Kramer Intelligent EDID Processing, this device guarantees intelligent EDID handling, processing, and pass-through algorithm, ensuring Plug and Play operation for HDMI source and display systems. It also supports up to 32 channels of digital stereo uncompressed signals, providing studio-grade surround sound.

The TP-780Txr also offers Ethernet extension, allowing bidirectional data flow and extension of up to 100Mbps Ethernet connectivity for LAN communication and device control. It also supports bidirectional RS-232 and Infrared extensions, allowing data transmission and remote control of peripheral devices located at either end of the extended line.

Designed with cost-effective maintenance in mind, the TP-780Txr features status LED indicators for HDMI and HDBT ports, facilitating easy local maintenance and troubleshooting. It also supports local firmware upgrades via RS-232 connection and the K-Upload tool, ensuring lasting, field-proven deployment.

The TP-780Txr offers easy and elegant installation with single cable connectivity for both HDBaseT signals and power. Its compact MegaTOOLS fan-less enclosure is perfect for dropped-ceiling mounting or side-by-side mounting of 2 units in a 1U rack space with the recommended rack adapter.

Ideal for long-distance AV and LAN signal extension in multi-room, large dividable auditoriums, lecture halls, conference rooms, boardrooms, control rooms, hotels, and large church facilities, the TP-780Txr is a versatile solution for your connectivity needs.
