Kramer Electronics UHDA-OUT4-F32 4Ch HDMI Output Card for VS-3232DN-EM Switcher
See all Kramer Electronics items

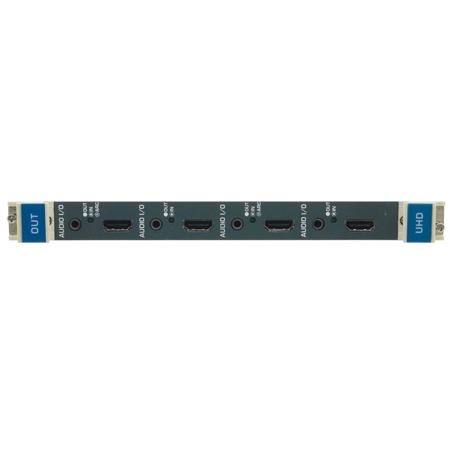

Kramer Electronics UHDA-OUT4-F32 4-Channel 4K60 HDMI Output Card with Selectable Analog Audio for VS-3232DN-EM Switcher

SKU: KRUHUT4F32SE MFR: 20-70008698
Be the first to review this itemAsk a Question
$1,812.00
OR
$151/mo suggested payments with 12‑month special financing. Learn how.
Earn VIP Reward Points

Key Features

  • Enhance your VS-3232DN-EM Switcher with this 4-channel 4K60 HDMI output card.
  • Enjoy reliable connections with up to 4 HDMI outputs and selectable analog audio.
  • Experience high resolution video with 2.97Gbps bandwidth per graphics channel.
  • Supports 3D pass-through, Deep Color, & 7.1 multi-channel audio for immersive viewing.
  • Wide compatibility: HDCP 1.4, HDMI 1.4, and HDTV, ensuring seamless integration.
  • Achieve low latency and superior performance with Kramer's advanced technology.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1
Add to ListGet Sale Alert

Protect your gear with Adorama Protect.* Learn more

2 Year

$99.99

3 Year

$119.99

4 Year

$154.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

Kramer Electronics UHDA-OUT4-F32 Specifications

  • Compatibility

    VS-3232DN-EM Switcher

  • Outputs

    4 HDMI, 4 Analog audio on 3.5mm mini jacks

  • Bandwidth Per Channel

    2.97Gbps per graphics channel

  • Total Bandwidth

    8.91Gbps data rate

  • Maximum Range

    10m (32ft) - 4K60 (4:2:0) or 4K30 (4:4:4), 15m (49ft) - 1080p 12 bit (deep color)

  • 3D Pass Through

    Supported

  • Standard Compliance

    HDCP 1.4, HDMI 1.4, HDTV compatible

  • HDMI Support

    3D, Deep Color, x.v.Color, ARC, Dolby TrueHD, Dolby Digital Plus, DTS-HD, 7.1 multi-channel audio

  • Power Consumption

    17W

  • Operating Temperature

    0 to 40 deg. C (32 to 104 deg. F)

  • Storage Temperature

    -40 to 70 deg. C (-40 to 158 deg. F)

  • Humidity

    10% to 90%, RHL non-condensing

  • Safety Regulatory Compliance

    CE

  • Environmental Regulatory Compliance

    Complies with appropriate requirements of RoHs and WEEE

  • Dimensions (WxDxH)

    22.00 x 18.80 x 2.00cm (8.66 x 7.40 x 0.79")

  • Weight

    0.4kg (0.88 lbs) approx.

  • UPC Code

    7291063084271

About Kramer Electronics UHDA-OUT4-F32

UHDA-OUT4-F32 is a four-channel 4K at 60Hz (4:2:0) HDMI output card with configurable analog audio features for the VS-3232DN-EM Modular Multi-Format Digital Matrix Switcher. UHDA-OUT4-F32 outputs four 4K HDMI signals with selectable embedded, de-embedded or ARC unbalanced stereo analog audio.

• Resolution - Up to 4K at 60Hz (4:2:0)
• Selectable Embedded, De-embedded or ARC Analog Audio
• Max. Data Rate - 8.91Gbps (2.97Gbps per graphics channel)
• Max. Resolution - 4K at 60Hz (4:2:0)
• HDMI Support - 3D, Deep Color, x.v.Color, ARC, Dolby TrueHD, Dolby Digital Plus, DTS-HD and 7.1 multi-channel audio
• Selectable Analog Audio Mode - On the top and third jacks, select embedded, de-embedded or ARC. On the second and bottom jacks, select embedded or de-embedded
• HDTV Compatible
• HDCP Compliant
• 3D Pass-Through
• EDID Capture - Copies and stores the EDID from a display device
• Kramer Equalization and re-Klocking Technology

Applications
• Professional display systems requiring video signal routing
• Broadcast, presentation and production facilities, as well as monitoring in large duplication systems
• Rental/staging applications

Warranty Information

This product has a limited warranty of 84 months.

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Enhance your VS-3232DN-EM Switcher with this 4-channel 4K60 HDMI output card.
  • Enjoy reliable connections with up to 4 HDMI outputs and selectable analog audio.
  • Experience high resolution video with 2.97Gbps bandwidth per graphics channel.
  • Supports 3D pass-through, Deep Color, & 7.1 multi-channel audio for immersive viewing.
  • Wide compatibility: HDCP 1.4, HDMI 1.4, and HDTV, ensuring seamless integration.
  • Achieve low latency and superior performance with Kramer's advanced technology.

What's in the box:

  • Kramer Electronics UHDA-OUT4-F32 4-Channel 4K60 HDMI Output Card
  • Kramer Electronics 7 Year Limited Warranty
