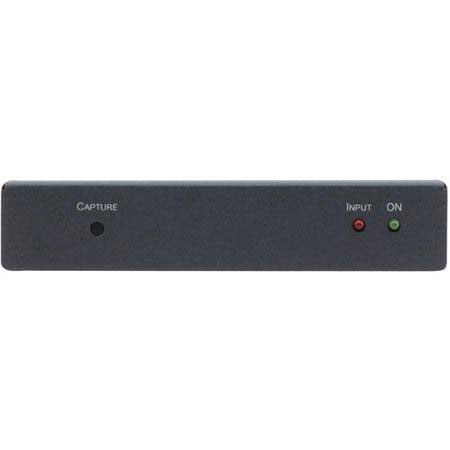

Kramer Electronics VA-1VGA Video EDID Emulator
See all Kramer Electronics items

Kramer Electronics VA-1VGA Computer Graphics Video EDID Emulator

SKU: KRVA1VGAN
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Kramer Electronics VA-1VGA Specifications

  • Input

    1 XGA input on a 15-pin HD connector

  • Output

    1 XGA output on a 15-pin HD connector.

  • Max. Output Level

    >2Vpp

  • Bandwidth (-3db)

    1.8GHz

  • Diff. Gain

    0.02%

  • Diff. Phase

    0.02Deg

  • K-factor

    <0.05%

  • S/N Ratio

    74dB @5MHz (unweighted: 66dB)

  • Controls

    Push button for EDID monitor information storage

  • Coupling

    DC, direct wiring between input and output

  • Power Source

    5V DC, 20mA

  • Dimensions (W x D x H)

    6.2cm x 6.2cm x 2.4cm (2.4" x 2.4" x 0.9")

  • Weight

    0.15kg (0.33lbs) approx

About Kramer Electronics VA-1VGA

The VA-1VGA Computer Graphics Video EDID Emulator from Kramer Electronics is an EDID emulator for VGA signals. It can capture EDID settings in non-volatile memory from the output to allow for reliable connection to source signals.

Kramer Electronics VA-1VGA Features

  • Use this unit to store EDID data in non-volatile memory to facilitate connection to source signals
  • It offers a bandwidth of 1.8GHz
  • The device can be controlled via its capture button
  • This unit belongs to the Kramer TOOLS Series and up to (3) of these units can be mounted side by side in 1U of rack space using the separately available K-3T rack adapter

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • It offers a bandwidth of 1.8GHz

What's in the box:

  • Kramer Electronics VA-1VGA Video EDID Emulator
  • Power Supply
  • Kramer Electronics Warranty
