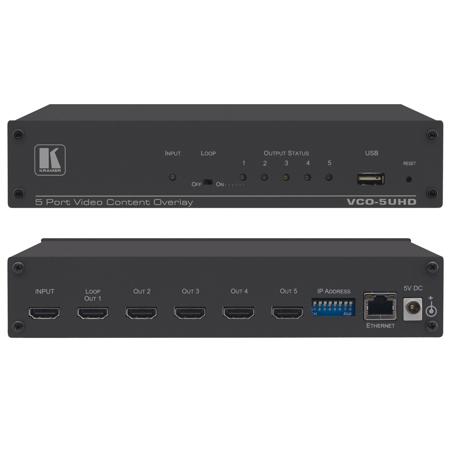

Kramer Electronics VCO-5UHD 5-Port 4K60 4:2:0 HDMI Video Content Overlay Solution

SKU: KRVCO5UHD MFR: VCO-5UHD
Earn VIP Reward Points

Key Features

  • Distribute HDMI video to 5 displays with this reliable Kramer distribution amplifier.
  • Overlay content easily with the 4K60 HDMI video content overlay solution for dynamic displays.
  • Perfect for lobbies & bars: Display visitor info & promotional campaigns on your HDMI network.
  • Enjoy a high-resolution video experience with 4K60 support, ensuring crisp, clear images.
  • Simple setup with DIP-switches & Ethernet control for hassle-free content management; low latency.
  • This multi-device support system enhances visitor engagement in hotels, stores, and venues.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$89.99

3 Year

$109.99

4 Year

$139.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Kramer Electronics VCO-5UHD Specifications

  • Inputs

    1 HDMI: On a female HDMI connector
    1 USB: On a female USB Type-A connector

  • Outputs

    5 HDMI: On female HDMI connectors
    1 Loop HDMI: On a female HDMI connector

  • Ports

    Ethernet 10/100BaseT: On an RJ-45 connector

  • Video

    Max Resolution: 4K60 (4:2:0)

  • Controls

    IP address setup DIP-switches, Reset/Test button, Ethernet (VCO Setup App), output status indication LEDs, input indication LED, loop indication LED

  • Power

    Consumption: 5V DC, 1.6A

  • Operating Temperature

    0 to 40 deg. C (32 to 104 deg. F)

  • Storage Temperature

    -40 to 70 deg. C (-40 to 158 deg. F)

  • Humidity

    10% to 90%, RHL non-condensing

  • Applications

    Providing visitor information, messages, promotional campaigns and emergency alerts overlaid on your current display network
    Hotel lobbies, lounges, guest rooms and conference rooms
    TV stores, sports bars, fitness centers, nightclubs, special venues
    Houses of worship

  • Dimensions (WxDxH)

    8.45 x 6.42 x 1.72" (214.63 x 163.07 x 43.69mm)

  • UPC Code

    7291063081980

About Kramer Electronics VCO-5UHD

It's time to elevate your video presentations with the VCO-5UHD 5-Port 4K60 4:2:0 HDMI Video Content Overlay Solution. This high-quality, durable device from Kramer Electronics is an innovative solution designed to overlay five independent graphic images onto any number of displays via standard HDMI, supporting resolutions up to 4K60 (4:2:0).

The VCO-5UHD is not just a video overlay device; it's a powerful tool that enables you to deliver individual, targeted messages to each display in your installation. Whether you're in a conference room, a classroom, or a control room, this user-friendly and reliable device allows you to manage multiple video sources and display them simultaneously on a single screen.

With its five HDMI input ports and a single HDMI output port, the VCO-5UHD provides seamless switching between video sources, making it an ideal choice for presentations, live events, and other situations requiring multiple video feeds.

Experience the difference with the VCO-5UHD 5-Port 4K60 4:2:0 HDMI Video Content Overlay Solution, a testament to Kramer Electronics' commitment to producing innovative, high-quality audio and video equipment.

Kramer Electronics VCO-5UHD Features

  • 4K60 4:2:0 Overlays - Static or animated, dynamic color image
  • Overlays Any Size Content - With full transparency control
  • Multiple Overlay Templates - For multiple applications
  • Selectable Looping Output - For daisy-chaining any number of displays
  • Centralized Control of all Promotional Overlays
  • Error Reporting - Comprehensive error reporting for connected displays and overlays
  • Full Overlay Automation - Automates entire overlay process from design to display, in multiple locations
  • Easy to Use - Feature-rich software - design, schedule and display
  • Enables Digital Signage with Unlimited Viewing Zones

Warranty Information

This product has a limited warranty of 84 months.

Key Features

  • Distribute HDMI video to 5 displays with this reliable Kramer distribution amplifier.
  • Overlay content easily with the 4K60 HDMI video content overlay solution for dynamic displays.
  • Perfect for lobbies & bars: Display visitor info & promotional campaigns on your HDMI network.
  • Enjoy a high-resolution video experience with 4K60 support, ensuring crisp, clear images.
  • Simple setup with DIP-switches & Ethernet control for hassle-free content management; low latency.
  • This multi-device support system enhances visitor engagement in hotels, stores, and venues.

What's in the box:

  • Kramer Electronics VCO-5UHD 5-Port 4K60 4:2:0 HDMI Video Content Overlay Solution
  • Power Cord
  • Rack Ears
  • Cable Bracket
  • Plastic Cable Ties
  • 4x Rubber Feet
  • Quick Start Guide
  • Kramer Electronics 7 Year Limited Warranty
