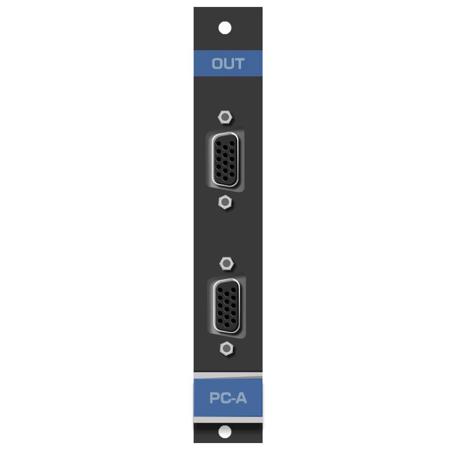

Kramer Electronics VGAA-OUT2-F16 2-Output VGA with Analog Audio Card for VS-1616D Switcher

SKU: KRVGAO2F16SE MFR: 20-70006298
Earn VIP Reward Points

Key Features

  • Enhance your pro display systems with this VGA audio output card, easy setup!
  • Enjoy reliable video switching for multimedia presentations, rental & staging.
  • Wide 450MHz bandwidth ensures high-quality video distribution up to 32.81 feet.
  • Low power consumption at 5.5W, this I/O module is eco-friendly and efficient.
  • This affordable Kramer card offers wide compatibility for various applications.
  • Trust Kramer for your video switchers & components, backed by a 7-year warranty!
See More Product Details

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Kramer Electronics VGAA-OUT2-F16 Specifications

  • Applications

    Professional display systems
    Multimedia and presentation
    Rental/staging applications

  • Ports

    2 VGA on 15-pin HD connectors, 2 unbalanced analog audio on 3.5mm mini jack connectors (accessible via C GF/GMAF-30 cables)

  • Bandwidth

    450MHz

  • Maximum Range

    10m (32.81')

  • Power Consumption

    5.5W

  • Operating Temperature

    0 to 40 deg. C (32 to 104 deg. F)

  • Storage Temperature

    -40 to 70 deg. C (-40 to 158 deg. F)

  • Humidity

    10% to 90%, RHL non-condensing

  • Safety Regulatory Compliance

    CE

  • Environmental Regulatory Compliance

    Complies with appropriate requirements of RoHs and WEEE

  • Dimensions (WxDxH)

    19.00 x 13.00 x 2.00cm (7.48 x 5.12 x 0.79")

  • Weight

    0.1kg (0.22 lbs) (Approx.)

  • UPC Code

    7291063069544

About Kramer Electronics VGAA-OUT2-F16

Bring enhanced functionality to your VS-1616 Series Modular Multi-Format Digital Matrix Switchers with the VGAA-OUT2-F16 2-Output VGA with Analog Audio Card. This high-performance card is designed to output two VGA channels with analog audio signals directly from the switcher chassis, providing seamless integration and superior audio-visual performance.

The VGAA-OUT2-F16 is not just a VGA output card; it's an integral component that enhances your multimedia setup by delivering high-quality VGA signals coupled with analog audio. This ensures a rich, immersive audio-visual experience, whether you're presenting in a corporate setting or broadcasting in a professional studio.

The card's audio output is conveniently accessed by connecting the included Kramer VGA cables with audio to each VGA port. This straightforward setup allows for easy installation and operation, making the VGAA-OUT2-F16 a valuable addition to any VS-1616 Series Modular Multi-Format Digital Matrix Switcher.

Incorporate the VGAA-OUT2-F16 2-Output VGA with Analog Audio Card into your system and experience the difference in audio-visual quality and performance. This product is a testament to Adorama's commitment to providing top-tier electronics and audio-visual equipment to our customers.

Kramer Electronics VGAA-OUT2-F16 Features

  • HDTV Compatible
  • Analog Audio Over Breakaway Connector

Warranty Information

This product has a limited warranty of 84 months.

Key Features

  • Enhance your pro display systems with this VGA audio output card, easy setup!
  • Enjoy reliable video switching for multimedia presentations, rental & staging.
  • Wide 450MHz bandwidth ensures high-quality video distribution up to 32.81 feet.
  • Low power consumption at 5.5W, this I/O module is eco-friendly and efficient.
  • This affordable Kramer card offers wide compatibility for various applications.
  • Trust Kramer for your video switchers & components, backed by a 7-year warranty!

What's in the box:

  • Kramer Electronics VGAA-OUT2-F16 2-Output VGA with Analog Audio Card
  • Kramer Electronics 7 Year Limited Warranty
