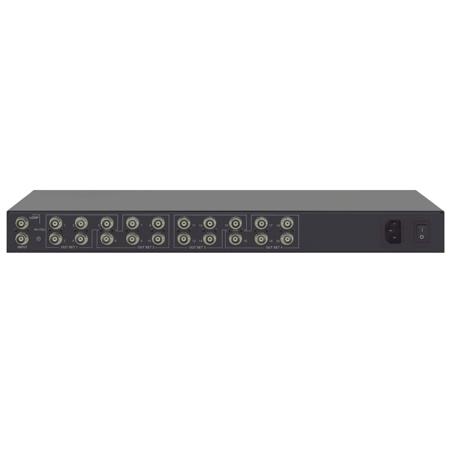

Kramer Electronics VM-1021N 1:20 Video Distribution Amplifier
See all Kramer Electronics items

Kramer Electronics VM-1021N 1:20 Video Distribution Amplifier for Composite or SDI Signals

SKU: KRVM1021N

This item is no longer available.

Recommended Alternatives

Kramer Electronics VM-1021N: Picture 1 regular
Kramer Electronics VM-1021N 1:20 Composite/SDI Video Distribution Amplifier
$1,310.00$1,048.00
Kramer Electronics VM-80VN: Picture 1 regular
Kramer Electronics VM-80VN 1:8 Video Distributor
$432.00
See More Recommendations
Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

Kramer Electronics VM-1021N Specifications

  • Connectors

    1 x BNC, composite/SDI video input
    1 x BNC, composite/SDI input looping video output
    20 x BNC, composite/SDI video output

  • Impedance

    Input: 75 ohms
    Output: 75 ohms

  • Voltage

    Input: 1 Vp-p
    Output: 1 Vp-p

  • Controls

    Switch, input termination
    Level: -1.1 dB to +2.7 dB
    EQ: 0 to 2.9 dB at 4.4 MHz

  • Bandwidth

    350 MHz (-3 dB)

  • Differential Gain

    0.1%

  • Differential Phase

    0.07 deg.

  • K-Factor

    <0.05%

  • Video S/N Ratio

    74 dB

  • Nonlinearity

    0.1%

  • Temperature & Humidity

    Operating: 32 to 104 deg. F (0 to 40 deg. C)
    Storage: -40 to 158 deg. F (-40 to 70 deg. C)
    Humidity: 10% to 90%, RHL non-condensing

  • Coupling

    DC

  • Power Consumption

    230 VAC, 50-60Hz (115 V USA), 6.7 VA

  • Dimensions (WxDxH)

    19.00 x 7.00 x 1.75" (48.26 x 17.78 x 4.45cm)

  • Weight

    5.7 lbs (2.59kg) (approx.)

About Kramer Electronics VM-1021N

The VM-1021N is a high-performance distribution amplifier for composite or SD-SDI video signals. It provides controls to compensate for signal losses inherent in long cable runs.

Kramer Electronics VM-1021N Features

  • High Bandwidth - 350MHz (-3dB)
  • Grouped Level (Gain) and EQ (Peaking) Controls
  • Looping Input
  • Selectable Input Signal Termination
  • DC Coupling
  • Clamping - Black or Sync Tip
  • Broadcast, production and editing facilities
  • Any professional system requiring high quality signal distribution
  • Retail stores and other point-of-sale systems
  • Computer RGB or component video distribution using multiple VM-1021s in parallel

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Kramer Electronics VM-1021N 1:20 Video Distribution Amplifier
  • Power Cord
  • Kramer Electronics Limited 7 Year Warranty
