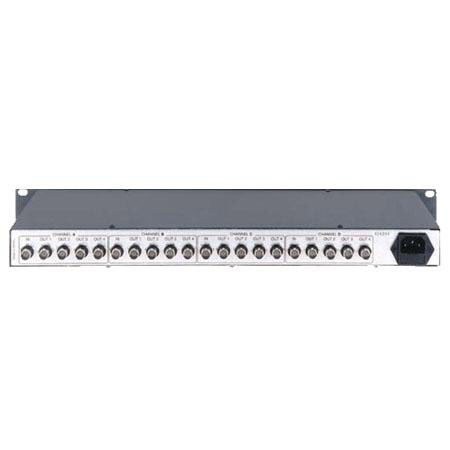

Kramer Electronics Kramer VM1044 1:4 RGBS/Video Distribution Amplifier
See all Kramer Electronics items

Kramer Electronics VM-1044 1:4 RGBS and Component Video Distribution Amplifier

SKU: KRVM1044
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Kramer Electronics VM-1044 Specifications

  • Inputs

    Four video inputs for RGBS or YUV plus sync, 1 Vpp @ 75 ohms on four BNC connectors

  • Output

    Four component video outputs including sync, 1 Vpp @ 75 ohms on sixteen BNC connectors

  • Video Bandwidth

    320 MHz -3 dB

  • Video Signal-to-Noise Ratio

    Better than 74 dB

  • Differential Phase

    0.05½

  • Differential Gain

    0.05%

  • Video Control

    Gain: -1.1dB to +2.5dB
    EQ: - to +0.9 @ 4.4 MHz
    Via bottom Panel trim Potentiometers

  • Coupling

    DC

  • Power Source

    115 VAC 60 Hz
    230 VAC 50 Hz
    5.5 VA

  • Dimensions

    19 x 7 x 2" (W x D x H)
    48.26 x 17.78 x 5.08cm (W x D x H)

  • Weight

    5.5 lbs
    2.5 kg

  • Warranty

    Kramer 7 years limited warranty

About Kramer Electronics VM-1044

The Kramer VM-1044 is a broadcast quality, high bandwidth distribution amplifier. This unit supports three component video inputs plus sync, ensuring a high quality signal and sync distribution for four buffered outputs per channel. Supporting normal and high resolution applications this machine will support either RGBS or Y, R-Y, B-Y signals ensuring excellent signal distribution for critical applications.

Kramer Electronics VM-1044 Features

  • High Bandwidth Signal Passage: A 320 MHz bandwidth offers clean, broadcast quality, video distribution for a variety of critical applications
  • Four Channel Inputs: Four channels of input (three video and sync) ensures that the sync signal gets the same high quality signal passage as does the video; making installation and timing problems minimal
  • Standard Rack Mount Size: Fits directly into standard studio racks making a smooth changeover from existing equipment

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • High Bandwidth Signal Passage
  • Four Channel Inputs
  • Standard Rack Mount Size

What's in the box:

  • Kramer VM-1044 1:4 RGBS and Component Video Distribution Amplifier
  • Power Cord
  • Kramer 7 Years Limited Warranty
