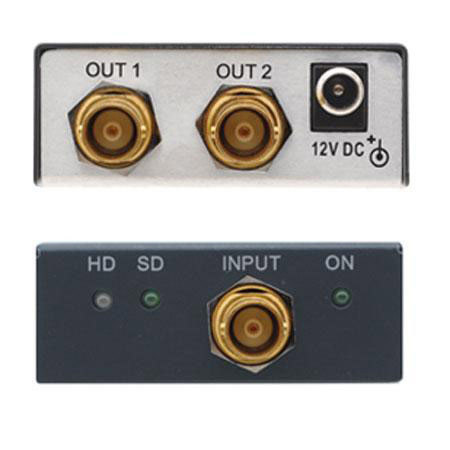

Kramer Electronics Kramer VM-2HD 1:2 HD-SDI Video Distribution Amplifier
See all Kramer Electronics items

Kramer Electronics VM-2HD 1:2 HD-SDI Video Distribution Amplifier

SKU: KRVM2HD

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

Kramer Electronics VM-2HD Specifications

  • Input

    1 SMPTE-259M, 292M, 344M serial video, 75 Ohm on a BNC connector

  • Outputs

    2 equalized and reclocked SMPTE-259M, 292M, 344M outputs 75 Ohm on BNC connectors

  • Max. Output Level

    800mVpp/75 Ohm

  • Coupling

    AC

  • Power Source

    12V DC, 250mA

  • Dimensions

    6.22cm x 5.24cm x 2.41 cm (2.45" x 2.06" x 0.95") W x D x H

  • Weight

    0.14kg (0.31lbs) approx

  • Warranty

    Kramer 7 years limited warranty

  • UPC Code

    7291063002251

About Kramer Electronics VM-2HD

The Kramer VM-2HD is a high-performance distribution amplifier for SDI (SMPTE 259M and SMPTE 344M) and HD-SDI (SMPTE 292M) signals. It takes one input, provides reclocking and equalization and distributes the signal to two identical outputs.

Kramer Electronics VM-2HD Features

  • Max Data Rate - Up to 1.485Gbps
  • Multi-Standard Operation - SDI, HD-SDI
  • Kramer re-Klocking & Equalization Technology - Rebuilds the digital signal to travel longer distances
  • HD-SDI & SDI Input Indication LEDs
  • Ultra Compact PicoTOOLS - 4 units can be rack mounted side-by-side in a 1U rack space with the optional RK-4PT rack adapter

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Max Data Rate - Up to 1.485Gbps
  • Multi-Standard Operation - SDI, HD-SDI
  • HD-SDI & SDI Input Indication LEDs

What's in the box:

  • Kramer VM-2HD 1:2 HD-SDI Video Distribution Amplifier
  • Power Supply
  • Mounting Bracket
  • Kramer 7 Years Limited Warranty
