Kramer Electronics VM-2HDT 1:2+1 4:2:0 HDMI to HDBaseT Distribution Amplifier
See all Kramer Electronics items

Kramer Electronics VM-2HDT 1:2+1 4K60 4:2:0 HDMI to Long-Range HDBaseT Distribution Amplifier

SKU: KRVM2HDT

This item is no longer available.

Recommended Alternatives

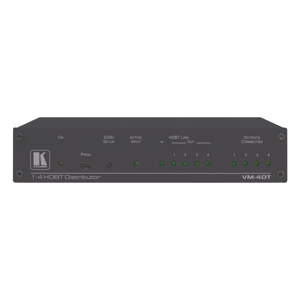

Kramer Electronics VM-4DT: Picture 1 regular
Kramer Electronics VM-4DT 1:4 4K60 Long-Reach HDBaseT Distribution Amplifier
$1,124.00

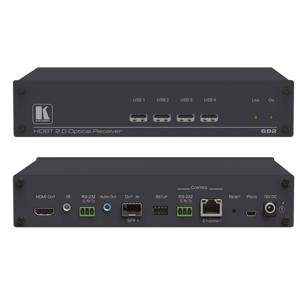

Kramer Electronics 692 Receiver: Picture 1 regular
Kramer Electronics 692 4K60 HDMI Fiber Optic Receiver
$2,356.00

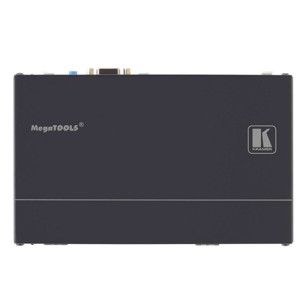

Kramer Electronics DIP-22: Picture 1 regular
Kramer Electronics DIP-22 4K60 4:2:0 DisplayPort, HDMI & VGA Auto Switcher
$1,515.00$1,212.00
Kramer Electronics SL-280: Picture 1 regular
Kramer Electronics SL-280 32-Port Master/Room Controller
$1,290.00$1,032.00
See More Recommendations
Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Kramer Electronics VM-2HDT Specifications

  • Inputs

    1 HDMI: On an HDMI female connector

  • Outputs

    2 HDBT: On RJ-45 female connectors
    1 Loop HDMI: On an HDMI female connector

  • Ports

    1 IR: On a 3.5mm mini jack for IR link extension
    1 RS-232: On a 3-pin terminal block for serial link extension

  • Video

    Max. Data Rate: 10.2Gbps (3.4Gbps per graphic channel)
    Max. Resolution: Up to 4Kat 60Hz (4:2:0) 24bpp
    Standards Compliance: Supports HDMI 2.0
    HDCP 1.4 and HDBaseT 1.0

  • Extension Line

    Up to 40m (131.23'): At 4Kat 60Hz (4:2:0) (when using Kramer HDBaseT cables)
    Up to 70m (229.66'): At full HD (1080p at 60Hz 36bpp) (when using Kramer HDBaseT cables)

  • User Interface

    Indicator LEDs: Outputs
    inputs
    communication link and power
    Controls: EDID setup button
    12 setup DIP switches
    1 RS-232: On a Mini-USB female connector for firmware upgrade

  • Power

    Source: 5.2V DC
    4A
    Consumption: 5V DC
    1.6A

  • Enclosure

    Size: MegaTool
    Type: Aluminum
    Cooling: Convection ventilation

  • Operating Temperature

    0 to 40 deg. C (32 to 104 deg. F)

  • Storage Temperature

    -40 to 70 deg. C (-40 to 158 deg. F)

  • Humidity

    10% to 90%
    RHL non-condensing

  • Applications

    Distribution of native extended AV signals in large rooms
    Presentation and multimedia rich applications in large boardrooms and meeting rooms
    Applicable for corporate
    education
    hospitality
    government market segments

  • Dimensions (WxDxH)

    7.38 x 4.53 x 1.00" (187.45 x 115.06 x 25.40mm)

  • Weight

    1 lbs (0.45kg)

  • UPC Code

    7291063084707

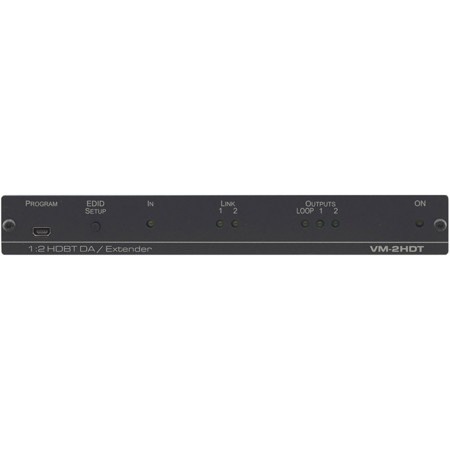

About Kramer Electronics VM-2HDT

VM-2HDT is a high-quality, long-reach 1:2 HDBaseT extender distributor that takes one HDMI input, with IR and RS-232 control signals, converts it to an HDBaseT extension line signal and distributes it to 2 HDBaseT outputs that connect to compatible HDBaseT receivers. VM-2HDT includes an HDMI LOOP output for connecting to an additional unit in a daisy chain.

High Performance Distribution
Distributes one HDMI signal to two long-reach HDBaseT extension outputs with up to 4K video resolution and additional HDMI LOOP output for connecting a local monitor or an additional unit in a daisy chain.

Extension-line Distribution
Distributes a 4K at 60Hz (4:2:0) 24bpp (maximum) video signal over HDBaseT extension line to a distance of up to 40m long-reach and even further for lower video resolutions.

Standard Compatibility
Connects to any HDBaseT compliant extension product on the market.

HDMI Signal Transmission
HDMI 2.0 and HDCP 1.4 compliant signal, supporting Deep Color, x.v.Color, Lip Sync, 7.1 PCM, Dolby TrueHD, DTS-HD, 2K, 4K and 3D. EDID and CEC (OUT 1 only) signals are passed through from the source to the display.

I-EDIDPro Kramer Intelligent EDID Processing
An intelligent EDID handling, processing and pass-through algorithm that ensures Plug and Play operation for HDMI source and display systems.

Kramer Equalization & re-Klocking Technology
Rebuilds the digital signal integrity to travel longer distances.

User-Friendly Operation
Status indicators for HDMI and HDBaseT input/output connected signals and power for ease of maintenance and troubleshooting.

Easy Installation
Twisted-pair cables for HDBaseT signals wiring. Compact Mega TOOLS fan-less enclosure for over-ceiling mounting or side-by-side rack mounting.

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Kramer Electronics VM-2HDT 1:2+1 4K60 4:2:0 HDMI to Long-Range HDBaseT Distribution Amplifier
  • Power Adapter & Cord
  • Bracket Set
  • 4x Rubber Feet
  • Quick Start Guide
  • Kramer Electronics 7 Year Limited Warranty
