Kramer Electronics VM-2UHD 1:2 4K60 4:2:0 HDMI Distribution Amplifier
See all Kramer Electronics items

Kramer Electronics VM-2UHD 1:2 4K60 4:2:0 HDMI Distribution Amplifier

SKU: KRVM2UHD
Be the first to review this item

This item is no longer available.

Recommended Alternatives

Kramer Electronics TP-575: Picture 1 regular

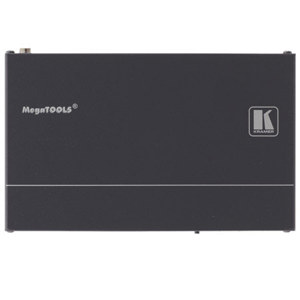

Kramer Electronics 1:2 Twisted Pair & HDMI Line Driver & Distribution Amplifier
$795.00$636.00
Kramer Electronics VM-2HN: Picture 1 regular
Kramer Electronics VM-2HN 1:2 4K UHD HDMI Distribution Amplifier
$360.00$288.00
See More Recommendations
Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Kramer Electronics VM-2UHD Specifications

  • Applications

    Simple distribution of high-resolution 4K signals in corporate, education, hospitality and government market segments

  • Input

    1x HDMI connector

  • Outputs

    2x HDMI connectors

  • Port

    1x USB for firmware upgrade

  • Max. Data Rate

    10.2Gbps (3.4Gbps per graphic channel)

  • Compliance with HDMI Standard

    Supports HDMI and HDCP

  • Controls

    EDID Setup button

  • Indicator LEDs

    IN, OUT 1 and 2 LEDs

  • Operating Temperature

    0 to 40 deg. C (32 to 104 deg. F)

  • Storage Temperature

    -40 to 70 deg. C (-40 to 158 deg. F)

  • Humidity

    10% to 90%, RHL non-condensing

  • Power Consumption

    5V DC, 800mA

  • Dimensions (WxDxH)

    4.72 x 2.81 x 0.96" (11.99 x 7.14 x 2.44cm)

  • Weight

    0.4 lbs (0.18kg)

  • UPC Code

    7291063064938

About Kramer Electronics VM-2UHD

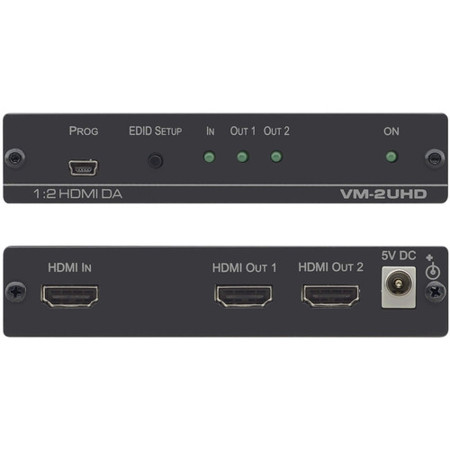

The VM-2UHD is a 1:2 distribution amplifier for 4K at 60Hz (4:2:0) HDMI 2.0 signals complying with the HDCP 1.4 content protection standard. The unit takes one HDMI input, equalizes and reclocks the signal and distributes it to two identical outputs.

Max. Data Rate
10.2Gbps (3.4Gbps per graphic channel).

Max. Resolution
4K at 60Hz (4:2:0).

HDMI Signal Transmission
HDMI 2.0 and HDCP 1.4 compliant signal, supporting deep color, x.v.Color, lip sync, 7.1 PCM, Dolby TrueHD, DTS-HD, CEC (OUT 1 only), 2K, 4K and 3D.

I-EDIDPro Kramer Intelligent EDID Processing
An intelligent EDID selection, handling, locking, processing and pass-through algorithm ensures Plug and Play operation for HDMI source and display systems.

Kramer Equalization & re-Klocking Technology
Rebuilds the digital signal to travel longer distances.

Field Maintenance
Mini-USB connection for simple field firmware upgrade with Kramer K-Upload tool, easy EDID handling with Kramer EDID-Designer tool, status indicators for HDMI input and output connected signals and power indicator, for ease of maintenance and troubleshooting.

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Kramer Electronics VM-2UHD 1:2 4K60 4:2:0 HDMI Distribution Amplifier
  • Power Cord and Adapter
  • Bracket Set
  • 4x Rubber Feet
  • Quick Start Guide
  • Kramer Electronics 7 Year Limited Warranty
