Kramer Electronics Kramer VM30AV 1:3 Video/Audio Distribution Amplifier
See all Kramer Electronics items

Kramer Electronics VM-30AV 1:3 Composite Video & Stereo Audio Distribution Amplifier, Video on RCA Connectors

SKU: KRVM30AV
Be the first to review this item

This item is no longer available.

Recommended Alternatives

Kramer Electronics VM-30AVB: Picture 1 regular
Kramer Electronics Kramer VM30AVB 1:3 Video/Audio Distribution Amplifier
$255.00$204.00
Kramer Electronics VM-3VN: Picture 1 regular
Kramer Electronics VM-3VN 1:3 Composite Video Amplifier
$160.00
See More Recommendations
Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Kramer Electronics VM-30AV Specifications

  • Inputs

    1 video, 1 Vpp/75 Ohm on an RCA connector; 1 audio stereo, 1Vpp/70k Ohm on RCA connector

  • Outputs

    3 video, 1 Vpp/75 Ohm on RCA connectors; 3 audio stereo, 1Vpp/150 Ohm on RCA connectors

  • Max. Output Level

    Video: 2Vpp; audio: 5.4Vpp

  • Bandwidth (-3dB)

    Video: 430MHz, audio: 100kHz

  • Diff. Gain

    0.04%

  • Diff. Phase

    0.07Deg

  • K-factor

    0.05%

  • S/N Ratio

    Video: 73dB, audio: 83dB

  • Controls

    Video level: -1.1 to +1.8dB, EQ.: 0 to +4.6dB @5.8MHz; Audio level: -66 to +16dB

  • Coupling

    AC

  • Audio THD+noise

    0.3%

  • Audio 2nd Harmonic

    0.02%

  • Power Source

    12V DC, 30mA typical

  • Dimensions

    16.5cm x 12cm x 4.5cm (6.5" x 4.7" x 2.8") W x D x H

  • Weight

    0.65kg (1.4lbs) approx

  • Warranty

    Kramer 7 years limited warranty

  • UPC Code

    7291063000875

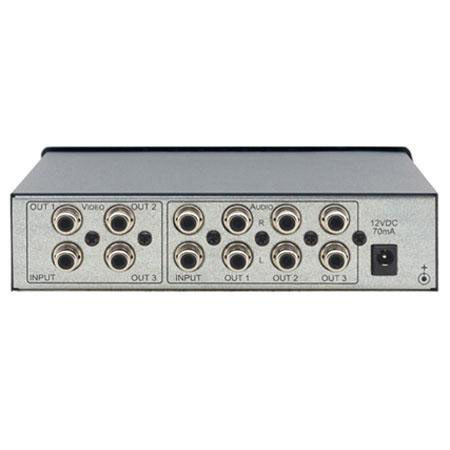

About Kramer Electronics VM-30AV

The Kramer VM-30AV is a compact distribution amplifier for composite or SDI video and unbalanced stereo audio signals. It provides controls to compensate for signal losses inherent in long cable runs.

Kramer Electronics VM-30AV Features

  • Video on RCA Connector
  • Audio Level Control
  • Level (Gain) and EQ (Peaking) Controls
  • Desktop Size - Compact size. Two units can be rack mounted side-by-side in a 1U rack space with the optional RK-1 adapter

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Video on RCA Connector
  • Audio Level Control
  • Level (Gain) and EQ (Peaking) Controls

What's in the box:

  • Kramer VM-30AV 1:3 Composite Video & Stereo Audio Distribution Amplifier
  • 12V DC Power Supply
  • Brackets for Stacking Multiple Units
  • Kramer 7 Years Limited Warranty
