Kramer Electronics VM-4DH 1:4 HDMI/Display Amplifier
See all Kramer Electronics items

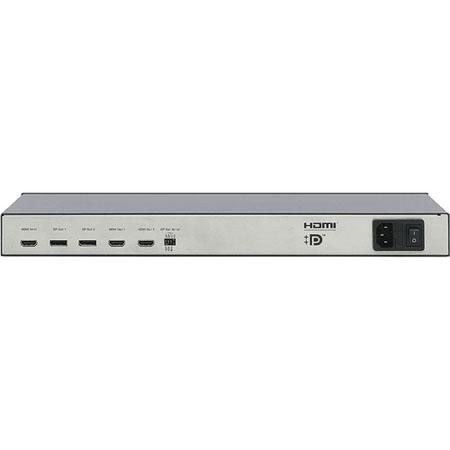

Kramer Electronics VM-4DH 1:4 HDMI/Display Port Distribution Amplifier

SKU: KRVM4DH

This item is no longer available.

Recommended Alternatives

Kramer Electronics VM-1H4C: Picture 1 regular
Kramer Electronics VM-1H4C Transmitter & Distribution Amplifier
$1,525.00$1,220.00
Kramer Electronics VM-24H: Picture 1 regular
Kramer Electronics VM-24HDMI 2x1:4 HDMI Amplifier
$695.00$556.00
Kramer Electronics VM-4H2: Picture 1 regular
Kramer Electronics VM-4H2 HDMI 2.0 4K 1x4 Distribution Amplifier
$452.00
See More Recommendations
Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Kramer Electronics VM-4DH Specifications

  • Inputs

    1 HDMI connector

  • Outputs

    2 DisplayPort connectors, 2 HDMI connectors

  • Bandwidth

    Supports up to 2.7Gbps bandwidth per graphic channel

  • Compliance with HDMI standard

    Supports: DisplayPort 1.1 and HDCP 1.3; HDMI and HDCP 1.2

  • Controls

    SELECT and READ buttons for selecting and storing EDID information

  • Indicator LEDs

    OUTPUTS 1 to 4 and ACTIVE LED

  • Power Source

    100-240V AC, 50/60Hz, 22VA

  • Dimensions (W x D x H)

    19" x 7" x 1U (482.6 mm x 177.8 mm x 1U) rack mountable

  • Weight

    2.5kg (5.5lbs) approx.

About Kramer Electronics VM-4DH

The Kramer Electronics 1:4 HDMI/Display Port Distribution Amplifier is designed for high quality distribution of an HDMI signal across 2 display ports and 2 HDMI outputs. Featuring equalizing and reclocking of the input, it rebuilds the digital signal for loss-less transmission over long distances. Supporting a maximum data rate of up to 10.8Gbps (2.7Gbps per video stream), the distribution amplifier supports a maximum resolution of up to 2500 x 1600 and up to 16-bit color over 4 video streams.

Featuring I-EDIDPro for EDID processing, the distribution amplifier offers an intelligent EDID handling and processing algorithm for plug-n-play operation with HDMI systems. In addition, the 1:4 HDMI/Display Port Distribution Amplifier supports HDMI v1.4 with Deep Color, x.v.Color, Lip Sync and CEC. The unit is compatible with HDTVs and compliant with HDCP standards. It features a LED indication for active input and outputs and the device powered via 100-240V AC.

Kramer Electronics VM-4DH Features

  • Designed for high quality distribution of an HDMI signal across 2 display ports and 2 HDMI outputs
  • Equalizes and reclocks the input signal
  • Rebuilds the digital signal for loss-less transmission over long distances
  • Data rate - up to 10.8Gbps (2.7Gbps per video stream)
  • I-EDIDPro for EDID processing - Intelligent EDID handling and processing algorithm for plug-n-play operation with HDMI systems
  • Supports HDMI v1.4 with Deep Color, x.v.Color, Lip Sync and CEC
  • HDTV compatible and HDCP compliant
  • Active input & output LED indicators
  • Power source - 100-240V AC
  • Standard 19" rack mount size - 1U

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Equalizes and reclocks the input signal
  • HDTV compatible and HDCP compliant
  • Active input & output LED indicators
  • Power source - 100-240V AC
  • Standard 19 rack mount size - 1U

What's in the box:

  • Kramer Electronics VM-4DH 1:4 HDMI/Display Port Distribution Amplifier
  • Power Cord
  • Rack Ears
  • Kramer Electronics Warranty
