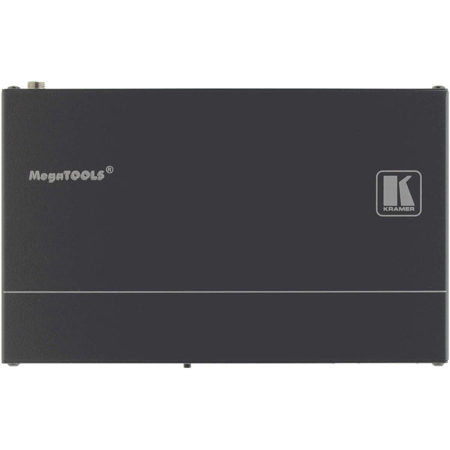

Kramer Electronics 1:4 4K UHD HDMI Distribution Amplifier

The VM-4UHD is a 1:4 distribution amplifier for 4K@60Hz (4:2:0) HDMI 2.0 signals complying with the HDCP 1.4 content protection standard. The unit takes one HDMI input, equalizes and reclocks the signal and distributes it to four identical outputs.• Transmitted Data Bandwidth - 10.2Gbps (3.4Gbps per graphic channel).

• Video Resolution - Up to 4K@60Hz (4:2:0).
• HDMI Signal Transmission - HDMI 2.0 and HDCP 1.4 compliant signal, supporting deep color, x.v.Color, lip sync, HDMI uncompressed audio channels, Dolby TrueHD, DTS-HD, CEC (OUT 1 only), 2K, 4K and 3D.
• Auto Outputs Turn-on/off - All outputs are turned on when input signal is detected and are turned off automatically, after user-selected delay, when no active input signal is detected.
• I-EDIDPro Kramer Intelligent EDID Processing - An intelligent EDID selection, handling, locking, processing and pass-through algorithm ensures Plug and Play operation for HDMI source and display systems.
• Kramer Equalization & re-Klocking Technology - Rebuilds the digital signal to travel longer distances.
• Field Maintenance - Mini-USB connection for simple field firmware upgrade with Kramer K-Upload tool, easy EDID handling with Kramer EDID-Designer tool, status indicators for HDMI input and output connected signals and power indicator, for ease of maintenance and troubleshooting.
• Easy Installation - Compact Mega TOOLS fan-less enclosure for over-ceiling mounting or side-by-side mounting of 2 units in a 1U rack space with the optional RK-T2B rack adapter.
• Compliance - HDMI 2.0, HDCP 1.4
• Size - MegaTOOLS
• Audio - E

Applications
• Simple distribution of high-resolution 4K signals in corporate, education, hospitality and government market segments
