Kramer Electronics VM-4UX 1:4 4K 12G-SDI Distribution Amplifier

SKU: KRVM4UX MFR: 10-80441090
Earn VIP Reward Points

Key Features

  • Distribute 4K video signals with this reliable 12G-SDI distribution amplifier, ensuring top-notch quality.
  • Experience low latency video distribution, perfect for live events & broadcast studio applications.
  • This video distribution amplifier supports multiple SDI standards for versatile connectivity options.
  • Achieve long-range signal extension, up to 80m for 12Gbps, using Kramer's superior cable equalization.
  • Simplify your setup with this compact distribution amplifier, ideal for staging and rental deployments.
  • Ensure signal integrity with reclocking & equalization, crucial for medical facilities' video needs.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$69.99

3 Year

$94.99

4 Year

$119.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Kramer Electronics VM-4UX Specifications

  • Applications

    SDI video production studios
    Broadcast studio and field SDI video production events
    Staging and rental deployments
    Medical facilities with highly reliable video deployments

  • Inputs

    1 SMPTE 259M (SD-SDI), 292M (HD-SDI), 344M (ED-SDI), 424M (3G HD-SDI), ST-2081 (6G-SDI) and ST-2082 (12G-SDI) compliant serial video, 75 Ohms on a BNC connector

  • Outputs

    4 equalized and reclocked SMPTE 259M (SD-SDI), 292M (HD-SDI), 344M (ED-SDI), 424M (3G HD-SDI), ST-2081 (6G-SDI) and ST 2082 (12G-SDI), outputs 75 Ohms on BNC connectors

  • Cable Equalization Reach

    12Gbps: Up to 80m (260ft), 3Gbps and 6Gbps: Up to 100m (330ft), 1.5Gbps: Up to 200m (660ft), SD: Up to 300m (980ft), Note: The above specs apply when using Kramer cables

  • Video

    Up to 4K at 60Hz (4:2:2) 30bpp resolution, 270Mbps to 12Gbps data rate

  • Maximum Output Level

    800mVpp /75 Ohms

  • Coupling

    AC

  • Standards Compliance

    SMPTE 259M (SD-SDI), 292M (HD-SDI), 344M (ED-SDI), 424M (3G HD-SDI), ST-2081 (6G-SDI), ST-2082 (12G-SDI)

  • Power Consumption

    5V DC, 250mA

  • Power Source

    5.2V/4A

  • Enclosure

    Tools size, Aluminum type

  • Cooling

    Convection ventilation

  • Operating Temperature

    0 to 40 deg. C (32 to 104 deg. F)

  • Storage Temperature

    -40 to 70 deg. C (-40 to 158 deg. F)

  • Humidity

    10% to 90%, RHL non-condensing

  • Dimensions (WxDxH)

    12.00 x 7.15 x 2.44cm (4.72 x 2.81 x 0.96")

  • Weight

    0.2kg (0.44 lbs) (Approx.)

  • UPC Code

    7291063080419

About Kramer Electronics VM-4UX

Under the umbrella of high-performance broadcast equipment, the VM-4UX 1:4 4K 12G-SDI Distribution Amplifier stands out as a compact yet powerful solution for distributing standard broadcast-grade SDI signals. This device is capable of handling up to 12G of transmitted data rate, making it an essential tool for professional broadcasting environments.

The VM-4UX amplifier is designed with an auto-adapting feature that adjusts to the data rate of one SDI input signal. This feature, combined with the device's ability to equalize and re-clock the signal, significantly enhances the reach of the transmitted signal. The result is a distribution of the signal to four identical SDI outputs, ensuring consistent, high-quality broadcast.

Reliable wire connectivity is a key feature of the VM-4UX. The device uses lockable BNC connectors to secure coaxial broadcast-grade cables, preventing unintentional wire disconnections. This ensures fast, professional, and uninterrupted distribution of uncompressed SDI signals.

The VM-4UX also boasts an extended-reach input extension. This feature equalizes the input signal and re-clocks output signals to achieve a longer signal extension. When used with Kramer's high-quality coaxial SDI cables, this device supports signal extensions of up to 300m for SD signals, 200m for 1.5G HD signals, 100m for 3G and 6G HD signals, and 80m for 12G 4K signals.

The VM-4UX is compliant with multiple SMPTE standards, including 259M (SD-SDI), 292M (HD-SDI), 344M (ED-SDI), 424M (3G HD-SDI), ST-2081 (6G-SDI), and ST-2082 (12G-SDI). It supports a maximum resolution of 4K at 60Hz (4:2:2) 30bpp, and is compatible with SDI, HD-SDI, 3G HD-SDI, 6G, and 12G SDI compliant signals. This device also supports the pass-through of standard embedded audio channels with ancillary ID and metadata information.

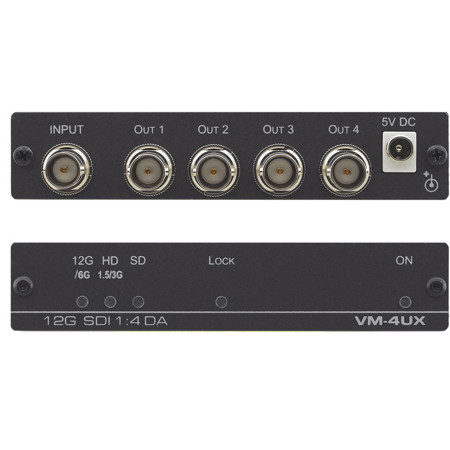

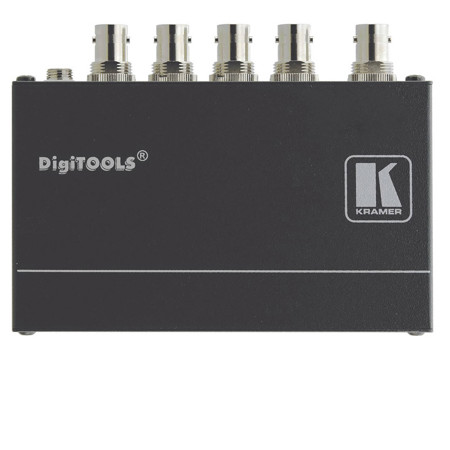

For ease of maintenance and troubleshooting, the VM-4UX is equipped with LED indicators. These provide status updates for the transmitted SDI data rate of input and output connected signals, as well as a power indicator. The compact DigiTOOLS fan-less enclosure allows for easy installation in small footprint spaces, over-ceiling mounting, or side-by-side rack mounting.

Kramer Electronics VM-4UX Features

  • High-performance 1:4 4K 12G-SDI Distribution Amplifier for professional broadcasting
  • Auto-adapting feature for optimal data rate adjustment and signal equalization
  • Reliable lockable BNC connectors for secure coaxial cable connections
  • Extended-reach input extension for longer signal distribution
  • Compliance with multiple SMPTE standards for versatile SDI signal transmission
  • Compact DigiTOOLS fan-less enclosure for flexible installation options

Warranty Information

This product has a limited warranty of 84 months.

Key Features

  • Distribute 4K video signals with this reliable 12G-SDI distribution amplifier, ensuring top-notch quality.
  • Experience low latency video distribution, perfect for live events & broadcast studio applications.
  • This video distribution amplifier supports multiple SDI standards for versatile connectivity options.
  • Achieve long-range signal extension, up to 80m for 12Gbps, using Kramer's superior cable equalization.
  • Simplify your setup with this compact distribution amplifier, ideal for staging and rental deployments.
  • Ensure signal integrity with reclocking & equalization, crucial for medical facilities' video needs.

What's in the box:

  • Kramer Electronics VM-4UX 1:4 4K 12G-SDI Distribution Amplifier
  • Power Supply
  • Mounting Bracket
  • 2x Male BNC 75 Ohms Terminator
  • 4x Rubber Feet
  • Kramer Electronics 7 Year Limited Warranty
