Kramer Electronics Kramer VM50AN 1:5 Video/Audio Distribution Amplifier
See all Kramer Electronics items

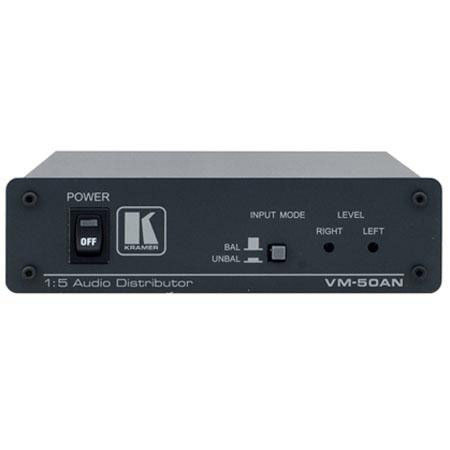

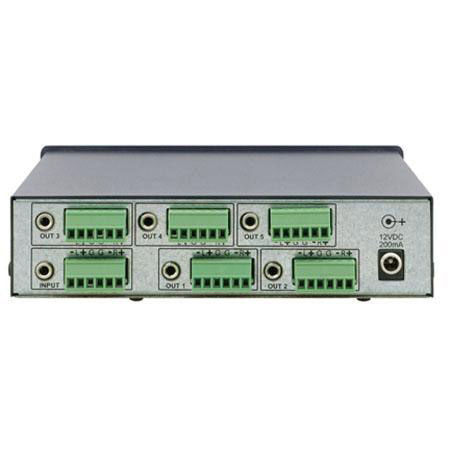

Kramer Electronics VM-50AN 1:5 Balanced & Unbalanced Stereo Audio Distribution Amplifier

SKU: KRVM50AN
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Kramer Electronics VM-50AN Specifications

  • Input

    1 balanced stereo +4dBu/50k Ohm on detachable terminal block connector; 1 unbalanced stereo 1Vpp/50k Ohm on mini 3.5 mm socket

  • Output

    5 balanced stereo +4dBu/50 Ohm on detachable terminal block connectors; 5 unbalanced stereo 1Vpp/470 Ohm on mini 3.5 mm socket

  • Max. Output Level

    >24dBm

  • Bandwidth (-3dB)

    40kHz; fully loaded

  • S/N Ratio

    84dB, unweighted

  • Controls

    Level (for right and left): 0.4 to 9.5dB

  • Coupling

    Input: AC; Output: DC

  • Audio THD + Noise

    0.002% @1kHz, balanced output

  • Audio 2nd Harmonic

    0.022% @1kHz, balanced output

  • Power Source

    12V DC, 200mA

  • Dimensions

    16.5cm x 12cm x 4.5cm (6.5" x 4.7" x 1.7") W x D x H

  • Weight

    0.6kg (1.3lbs) approx

  • Warranty

    Kramer 7 years limited warranty

About Kramer Electronics VM-50AN

The Kramer VM-50AN is a high-performance distribution amplifier for balanced and unbalanced stereo audio signals. It takes one balanced or unbalanced stereo input and distributes the signal simultaneously to 10 stereo outputs (5 balanced and 5 unbalanced).

Kramer Electronics VM-50AN Features

  • Balanced/Unbalanced Input Selection
  • S/N Ratio - 84dB (unweighted)
  • Level (Gain) Controls
  • Desktop Size - Compact size. Two units can be rack mounted side-by-side in a 1U rack space with the optional RK-1 adapter

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Balanced/Unbalanced Input Selection
  • S/N Ratio - 84dB (unweighted)
  • Level (Gain) Controls
  • Desktop Size

What's in the box:

  • Kramer VM-50AN 1:5 Balanced & Unbalanced Stereo Audio Distribution Amplifier
  • 12V DC Power Supply
  • Kramer 7 Years Limited Warranty
