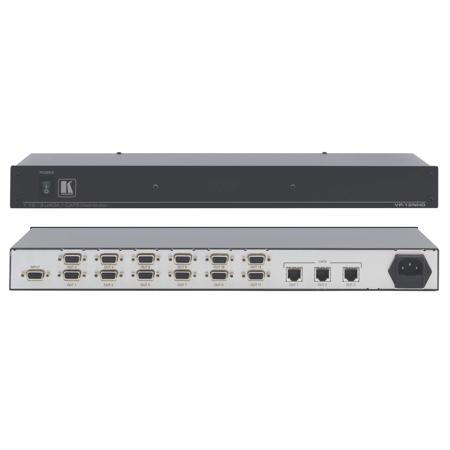

Kramer Electronics VP-12NHD 1:12 Graphics Video & HDTV Distribution Amplifier
See all Kramer Electronics items

Kramer Electronics VP-12NHD 1:12 Computer Graphics Video & HDTV Distribution Amplifier with 3 Twisted Pair Transmitters

SKU: KRVP12NHD11V
Be the first to review this item

This item is no longer available.

Recommended Alternatives

Kramer Electronics VM-4DT: Picture 1 regular
Kramer Electronics VM-4DT 1:4 4K60 Long-Reach HDBaseT Distribution Amplifier
$1,124.00
Kramer Electronics DIP-22: Picture 1 regular
Kramer Electronics DIP-22 4K60 4:2:0 DisplayPort, HDMI & VGA Auto Switcher
$1,515.00$1,212.00
Kramer Electronics TP-410: Picture 1 regular
Kramer Electronics TP-410 Transmitter and Distribution Amplifier
$2,475.00$1,980.00
Kramer Electronics VM-214DT: Picture 1 regular
Kramer Electronics VM-214DT 2x1:4 4K UHD HDMI/HDBaseT Distribution Amplifier
$1,880.00
See More Recommendations
Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Kramer Electronics VP-12NHD Specifications

  • Input

    1 UXGA on a 15-pin HD (F) connector

  • Outputs

    12 UXGA on 15-pin HD (F) connectors
    3 twisted pair on RJ-45 connectors

  • Max. Output Level

    1.7Vpp

  • Bandwidth (-3dB)

    330MHz (UXGA)

  • Max. Resolution

    Up to UXGA

  • Diff. Gain

    0.17% (UXGA)

  • Diff. Phase

    0.44Deg (UXGA)

  • K-factor

    <0.05%

  • S/N Ratio

    73dB

  • Controls

    Level: - 0.8dB to 2.4dB

  • Coupling

    DC

  • Power Consumption

    230V AC
    50/60Hz
    (115V AC
    USA)
    31VA

  • Applications

    Presentation and multimedia applications that require high quality computer graphics distribution to multiple monitors and/or projectors
    Long range graphics distribution for schools
    hospitals
    security
    and stores.

  • Dimensions (WxDxH)

    43.6 x 18.30 x 4.36cm (17.17 x 7.20 x 1.72")

  • Weight

    3.8 lbs (1.72kg)

  • UPC Code

    7291063013257

About Kramer Electronics VP-12NHD

The VP-12NHD is a high-performance distribution amplifier for computer graphics video signals. It takes one input, provides correct buffering and isolation and distributes the signal to twelve computer graphics outputs on 15-pin HD connectors and three twisted pair outputs.

Kramer Electronics VP-12NHD Features

  • High Bandwidth (15-pin HD) - 330MHz (-3dB)
  • Max. Resolution (Twisted Pair) - WUXGA & 1080p
  • HDTV Compatible
  • Sync Polarity Settings - H & V switches for improved display compatibility with the CAT 5 outputs
  • Power Connect System - A single connection to the transmitter powers all units when the receivers are within 150ft (50m) of the transmitter
  • Twisted Pair Connectors - RJ-45 connectors
  • Control - RGB Level (Gain), ID bit
  • System Range (Twisted Pair) - Up to 100m (300ft)
  • Cable (Twisted Pair) - UTP (unshielded twisted pair) or STP (shielded twisted pair) such as CAT 5
  • Standard 19" Rack Mount Size - 1U. Rack "ears" included

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Kramer Electronics VP-12NHD 1:12 Computer Graphics Video & HDTV Distribution Amplifier with 3 Twiste
  • Power Cord
  • Rack Ears
  • User Manual
  • Kramer Electronics 7 Year Limited Warranty
