Kramer Electronics VP-16X18AK 16x18 Computer Graphics Video & Balanced/Unbalanced Stereo Audio Matrix Switcher

SKU: KRVP16X18AK MFR: VP-16X18AK
Earn VIP Reward Points

Key Features

  • Seamless video switching: Enjoy high-resolution UXGA video across 16 inputs & outputs.
  • Pro-grade audio matrix: Route balanced/unbalanced stereo audio with exceptional clarity.
  • Remote control included: Easily manage your video switcher with the included IR remote.
  • Rack-mountable design: Integrate this video distribution unit into any standard 3U rack.
  • Wide compatibility: Supports various devices for reliable streaming and presentations.
  • Low latency performance: Experience virtually no delay for live events and broadcasts.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$229.99

3 Year

$274.99

4 Year

$369.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Kramer Electronics VP-16X18AK Specifications

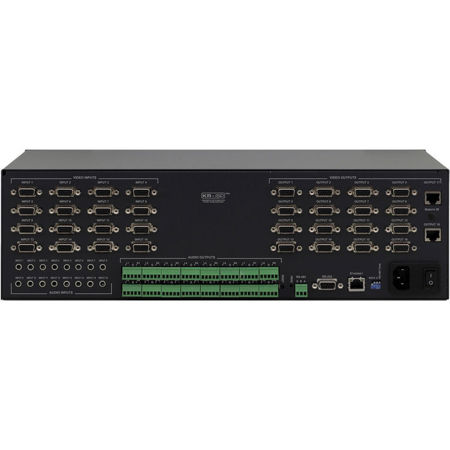

  • Inputs

    16x UXGA on 15-pin HD connectors, 16 unbalanced stereo audio on 3.5mm mini jacks

  • Outputs

    16x UXGA on 15-pin HD connectors, 16 balanced stereo audio on 5-pin terminal block connectors, 2 TP on RJ-45 connectors

  • Max. Output Level

    Video: 1.6Vpp; Audio: 9.6Vpp diff (12.8dBu)

  • Bandwidth (-3dB)

    Video: 420MHz; Audio: 20kHz

  • Diff. Gain

    0.1% maximum

  • Diff. Phase

    0.05 deg. maximum

  • K-Factor

    Local output: 0.1%

  • S/N Ratio

    Video: 62dB to 5MHz; Audio: 83dB

  • Crosstalk (all Hostile)

    Video: -35dB at 100MHz; Audio: -68dB at 1kHz

  • Controls

    Volume: -105 to +30dB; bass: -15 to 15dB; treble: -20 to +20dB

  • Coupling

    Video: Local output: DC; CAT 5 output: AC; Audio: Local output: input=AC, output=DC; CAT 5 output: input=AC, output=AC

  • Audio THD + Noise

    Local output: 0.031% at 1kHz

  • Audio 2nd Harmonic

    Local output: 0.003% at 1kHz

  • Power Consumption

    100-240V AC, 44VA

  • Operating Temperature

    0 to 40 deg. C / 32 to 104 deg. F

  • Storage Temperature

    -40 to 70 deg. C / -40 to 158 deg. F

  • Humidity

    10% to 90%, RHL non-condensing

  • Options

    External remote IR receiver cable

  • Rack Mountable

    Yes

  • Rack Unit

    3

  • Dimensions

    19 x 9.5" / 482.60 x 241.30mm

  • Weight

    4.4kg / 9.70lb

About Kramer Electronics VP-16X18AK

Bring sophistication and efficiency to your professional audio and video setup with the VP-16X18AK 16x18 Computer Graphics Video & Balanced/Unbalanced Stereo Audio Matrix Switcher. This advanced matrix switcher is designed to handle computer graphics video up to UXGA and unbalanced stereo audio signals with high performance and reliability.

The VP-16X18AK offers a high bandwidth of 420MHz (-3dB), making it HDTV compatible and suitable for high-quality video production. It features automatic input detection, lighting up green when a live connection is detected, ensuring seamless operation.

This high-quality matrix switcher also boasts audio breakaway switching and audio level gain controls for unbalanced stereo inputs, providing you with complete control over your audio setup. The convenient 'Take Button' allows for the execution of multiple switches simultaneously, enhancing efficiency.

The VP-16X18AK is designed to fit a standard 19" rack mount size, with rack "ears" included for easy installation. It also features Kr-isp Advanced Sync Processing, ensuring compatibility with a wide range of computers, even if the sync level is too low, by restoring the sync signal waveform.

This sophisticated switcher also offers multiple memory locations, storing up to 12 multiple switches as presets that can be recalled and executed when needed. The delayed switching mode allows for glitch-free switching of non-genlocked sources by setting the transition time of a switch from 0 to 3.5 seconds.

With the Audio-Follows-Video feature, the VP-16X18AK automatically switches the stereo audio signal with the video signal when switching the active input to the output. The I-EDIDPro Kramer Intelligent EDID Processing ensures Plug and Play operation for HDMI systems.

The VP-16X18AK offers flexible control options, including front panel buttons, an IR remote with a transmitter or optional remote extension cable, RS-232 & RS-485, and Ethernet with a Web browser. This makes it an ideal choice for professional display systems requiring a true 16x18 computer graphics and audio matrix operation, multimedia, and presentation source and acceptor selection.

Kramer Electronics VP-16X18AK Features

  • High-performance 16x18 matrix switcher for UXGA computer graphics & stereo audio
  • 420MHz high bandwidth with HDTV compatibility for superior video quality
  • Kr-isp Advanced Sync Processing for wide-range computer compatibility
  • Multiple control options including IR, RS-232, RS-485, and Ethernet
  • Audio-Follows-Video and audio breakaway switching for seamless transitions
  • Stores 12 preset configurations for efficient multimedia management

Warranty Information

This product has a limited warranty of 84 months.

Key Features

  • Seamless video switching: Enjoy high-resolution UXGA video across 16 inputs & outputs.
  • Pro-grade audio matrix: Route balanced/unbalanced stereo audio with exceptional clarity.
  • Remote control included: Easily manage your video switcher with the included IR remote.
  • Rack-mountable design: Integrate this video distribution unit into any standard 3U rack.
  • Wide compatibility: Supports various devices for reliable streaming and presentations.
  • Low latency performance: Experience virtually no delay for live events and broadcasts.

What's in the box:

  • Kramer Electronics VP-16X18AK 16x18 Computer Graphics Video & Balanced/Unbalanced Stereo Audio Matrix Switcher
  • Power Cord
  • Rack Ears
  • RC-IR3 IR Remote Control
  • Kramer Electronics 7 Year Limited Warranty
