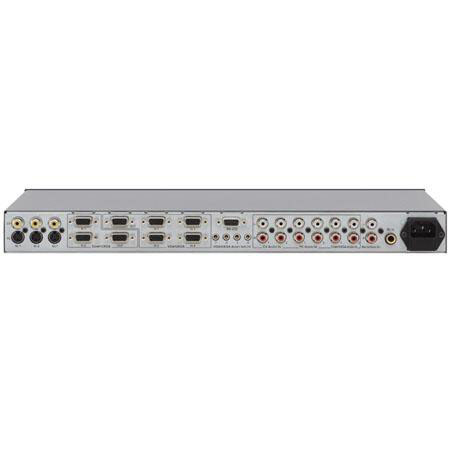

Kramer Electronics VP-23C 10-Input Multi-Format Presentation Switcher with Stereo Audio

SKU: KRVP23C MFR: VP23C
Earn VIP Reward Points

Key Features

  • Seamlessly switch between 10 inputs with this Kramer presentation switcher for dynamic events.
  • Enjoy wide compatibility with composite, component, and VGA inputs on this video switcher.
  • High-resolution video quality ensured with a 400MHz VGA/UXGA bandwidth for crisp visuals.
  • Easily manage audio levels with dedicated controls for master and microphone audio mixing.
  • This reliable connection switcher offers a 75dB S/N ratio for clear audio and video signals.
  • Rack-mountable design makes setup easy, integrating seamlessly into your existing system.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$69.99

3 Year

$94.99

4 Year

$119.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Kramer Electronics VP-23C Specifications

  • Input

    2 composite video, 1Vpp/75 Ohm on RCA connectors; 2 component video/UXGA on 15-pin HD (F) connectors; 4 VGA/UXGA on 15-pin HD (F) connectors; 4 unbalanced stereo audio on 3.5mm jack connectors (for VGA/UXGA): +4dBu/10k Ohm; 6 unbalanced stereo audio channels: +4dBu/ 10k Ohm on RCA connectors (for CV, YC, COMP/UXGA); Mic: 3mV/10k Ohm condenser/dynamic on a 6.3mm phone jack connector

  • Output

    1 composite video (1Vpp/75 Ohm) on an RCA connector; 1 s-Video 1Vpp/75 Ohm (Y), 0.3Vpp/75 Ohm (C) on a 4-pin connector; 1 component video/UXGA on a 15-pin HD (F) connector; 1 VGA/UXGA on a 15-pin HD (F) connector; 1 unbalanced stereo master audio channel: +4dBu/50 Ohm on RCA connectors

  • Max. Output Level

    Video: 2.1Vpp Audio: 27Vpp

  • Bandwidth (-3dB)

    Video: VGA/UXGA: 400MHz; s-Video (Y): 310MHz; Composite/SDI video: 310MHz; Component video: 380MHz; HDTV compatible; Audio: 40kHz

  • Diff. Gain

    <0.07% all channels

  • Diff. Phase

    <0.05Deg all channels

  • S/N Ratio

    Video: 75dB all channels; Audio: 75dB/1Vpp all channels

  • Controls

    10 selector buttons, master audio level, mic audio level, mix, lock, mute, RS-232

  • Power Source

    100-240V AC, 50/60Hz, (115V AC, U.S.A.) 7VA

  • Dimensions

    19" x 7" x 1U W x D x H, rack mountable

  • Weight

    2.6kg (8lbs) approx

  • Warranty

    Kramer 7 years limited warranty

  • UPC Code

    7291063053055

About Kramer Electronics VP-23C

Before you settle for any ordinary switcher, consider the advanced and sophisticated VP-23C 10-Input Multi-Format Presentation Switcher with Stereo Audio. Manufactured by Kramer Electronics, a leading name in the professional audio and video industry, this high-quality switcher is designed to meet the demands of a wide range of presentation and multimedia applications.

This user-friendly and reliable device is not just a simple switcher. It's a versatile 2x1 composite or SDI video switcher, a 2x1 s-Video (Y/C) switcher, a 2x1 component (YUV) switcher, and a 4x1 computer graphics video switcher, each equipped with unbalanced stereo audio. This means you can connect up to 10 different input sources and switch between them seamlessly, providing you with unparalleled flexibility.

Whether you're presenting in a corporate setting, teaching in a classroom, or showcasing multimedia in a conference, the VP-23C 10-Input Multi-Format Presentation Switcher with Stereo Audio ensures smooth transitions and high-quality audio and video output. This makes it an essential tool for anyone needing to display multiple video sources on a single monitor or projector. Experience the difference with the VP-23C 10-Input Multi-Format Presentation Switcher with Stereo Audio.

Kramer Electronics VP-23C Features

  • High Bandwidth - 400MHz (-3dB) computer graphics video, 380MHz (-3dB) component (YUV) video, 310MHz (-3dB) s-Video (Y) & 310MHz (-3dB) composite video
  • Video Connectors - CV (RCA), Y/C (4-pin), Component/VGA (15-pin HD) & VGA/UXGA (15-pin HD)
  • Audio Connectors - 3.5mm for computer graphics & RCA for all others
  • HDTV Compatible
  • Audio Level (Gain) Control for Master Output
  • Microphone Input Level Control
  • Master Audio Output - Input selectable
  • Microphone Mix Button
  • Mute Master Output Button
  • Flexible Control Options - Front panel & RS-232 (K-Router Windows-based Kramer software is included)
  • Front Panel Lockout
  • Worldwide Power Supply - 100-240V AC
  • Standard 19" Rack Mount Size - 1U. Rack "ears" included

Warranty Information

This product has a limited warranty of 84 months.

Key Features

  • Seamlessly switch between 10 inputs with this Kramer presentation switcher for dynamic events.
  • Enjoy wide compatibility with composite, component, and VGA inputs on this video switcher.
  • High-resolution video quality ensured with a 400MHz VGA/UXGA bandwidth for crisp visuals.
  • Easily manage audio levels with dedicated controls for master and microphone audio mixing.
  • This reliable connection switcher offers a 75dB S/N ratio for clear audio and video signals.
  • Rack-mountable design makes setup easy, integrating seamlessly into your existing system.

What's in the box:

  • Kramer VP-23C 10-Input Multi-Format Presentation Switcher
  • Power Cord
  • Null-Modem Adapter
  • Windows-Based Kramer Control Software
  • Kramer Electronics 7 Year Limited Warranty
