Kramer Electronics VP-28 14-Input Multi-Format Presentation Switcher with Stereo Audio, 6.75Gbps Bandwidth, RS-232 & IR Control

SKU: KRVP28 MFR: VP-28
Earn VIP Reward Points

Key Features

  • Manage multiple sources with this 14-input presentation switcher for seamless transitions.
  • Enjoy wide compatibility with HDMI, DisplayPort, and more on this video switcher.
  • Achieve high-quality audio with balanced stereo outputs, perfect for pro setups.
  • Control your presentation remotely via RS-232 & IR, adding convenience to your workflow.
  • Ensure reliable connection with 6.75Gbps bandwidth, ideal for high-resolution content.
  • Simplify setup with included rack ears for easy integration into your existing system.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$99.99

3 Year

$119.99

4 Year

$154.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Kramer Electronics VP-28 Specifications

  • Video Inputs

    3 composite video on RCA connectors
    3 HDMI connectors
    2 DisplayPort connectors
    3 PC/DVI on DVI connectors

  • Audio Inputs

    1 mic on an XLR connector
    1 mic on a 6.3mm phone jack connector (3mV/10kW condenser/dynamic)
    3 CV, 3HDMI, 2 DP, 3 PC audio, 3 DVI, all unbalanced stereo audio on 3.5mm mini jack connectors

  • Video Outputs

    1 composite video on an RCA connector
    1 HDMI connector
    1 DisplayPort connector
    1 PC/DVI on a DVI connector

  • Audio Outputs

    1 CV, 1 HDMI, 1 DP, 1 PC audio, 1 DVI, all unbalanced stereo audio on a 3.5mm mini jack connectors; 1 master balanced stereo audio on a 5-pin terminal block

  • Max. Output Level

    Video: CV: 1.7Vpp, XGA: 2.3Vpp; Audio: Master: 17Vpp from mic, 12.4Vpp from line in, Local outputs: 8.8Vpp from line inputs.

  • Bandwidth (-3dB)

    Video: CV: 680MHz, XGA: 290MHz (-4dB 400MHz); Audio: >25kHz.

  • Diff Gain

    Video: CV: 2.5%, XGA: 0.1%

  • Diff Phase

    CV: 0.4Deg, XGA: 0.1Deg.

  • K-Factor

    CV: <0.05%, XGA: <0.05%

  • S/N Ratio

    Video: CV: 74dB, XGA: 71dB @5MHz; Audio: Master: 81dB from mic (@20mVpp input, 17Vpp output diff, "A" weighting, XLR microphone), 90 to 95dB from line in ("A" weighting), Local outputs: 110dB ("A" weighting).

  • Crosstalk @1kHz (all hostile)

    Video: CV: -54dB, XGA: -56dB (5MHz); Audio: Master: -70dB, Local outputs: -80dB from line in

  • Controls (Level Range)

    Master: <-12 to 70dB from mic, -79 to +15dB from line in

  • Coupling

    Video: CV: DC, XGA: DC; Audio: AC

  • Audio THD + Noise

    Master: 0.4% from mic, 0.02% from line in ("A" weighting); Local outputs: 0.04% from line in

  • Audio 2nd Harmonic

    Master: 0.03% from mic, 0.01% from line in; Local outputs: 0.02%

  • Maximum Bandwidth DP TO HDMI

    One or two lane (1.65Gbps per lane)

  • Indicator LEDs

    IR

  • Power Consumption

    90-264V AC, 23VA

  • Operating Temperature

    0deg. to +40deg.C (32deg. to 104deg.F)

  • Storage Temperature

    -40deg. to +70deg.C (-40deg. to 158deg.F)

  • Humidity

    10% to 90%, RHL non-condensing

  • Dimensions (W x D)

    19 x 7.35" / 48.26 x 18.66 1U rack mountable

  • Weight

    1.8 kg / 3.96 lbs

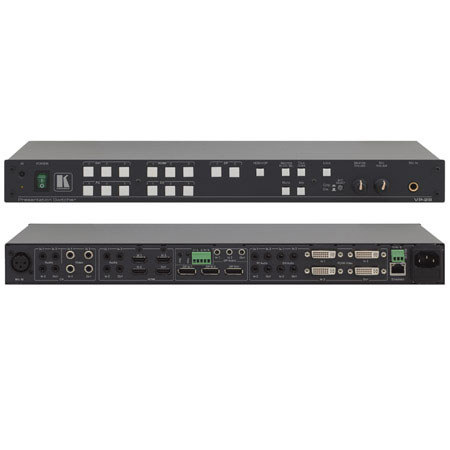

About Kramer Electronics VP-28

With the Kramer Electronics VP-28, experience the sophistication and efficiency of a high-performance, multi-format presentation switcher. This advanced device is designed to handle a diverse range of input formats, including composite video, HDMI, DVI, DisplayPort, and computer graphics video, along with stereo audio and microphone signals.

The VP-28 operates as a versatile 3x1 switcher across multiple formats - composite video, HDMI, computer graphics video, and DVI-I. It also functions as a 2x1 DisplayPort switcher, each equipped with unbalanced stereo audio. This high-tech switcher boasts a high bandwidth of 6.75Gbps, ensuring smooth and seamless switching between different sources for a professional-grade presentation experience.

Ideal for use in various settings such as conference rooms, classrooms, and houses of worship, the VP-28 14-Input Multi-Format Presentation Switcher is perfect for any situation that requires multiple video sources to be displayed on a single screen. Its high number of inputs, ranging from 11 to 20, allows for more sources to be connected, providing a comprehensive solution for all your presentation needs.

In addition, the VP-28 features RS-232 and IR Control, offering enhanced control and flexibility. Experience the future of presentations with the Kramer Electronics VP-28 Multi-Format Presentation Switcher.

Kramer Electronics VP-28 Features

  • Audio Level Memory - Remembers and returns to the last audio level setting during switching
  • Condenser or Dynamic Microphone - Button selectable
  • Microphone & Audio Mixing - Input selectable master audio output
  • Mic Talkover - Mutes master audio output when mic signal is sensed
  • Level Controls - Master audio output, microphone input
  • Flexible Control Options - Front panel, RS-232, Ethernet & IR (included)
  • Front Panel Control Lockout
  • Worldwide Power Supply - 100-240V AC

Warranty Information

This product has a limited warranty of 84 months.

Key Features

  • Manage multiple sources with this 14-input presentation switcher for seamless transitions.
  • Enjoy wide compatibility with HDMI, DisplayPort, and more on this video switcher.
  • Achieve high-quality audio with balanced stereo outputs, perfect for pro setups.
  • Control your presentation remotely via RS-232 & IR, adding convenience to your workflow.
  • Ensure reliable connection with 6.75Gbps bandwidth, ideal for high-resolution content.
  • Simplify setup with included rack ears for easy integration into your existing system.

What's in the box:

  • Kramer Electronics 14-Input Multi-Format Presentation Switcher
  • Power Cord
  • Rack "Ears "
  • Kramer Infrared Remote Control Transmitter
  • Kramer ADC-DM/DF+GF DVI to DVI and VGA Breakout Cable
  • Kramer Electronics 7 Year Limited Warranty
