20% Off

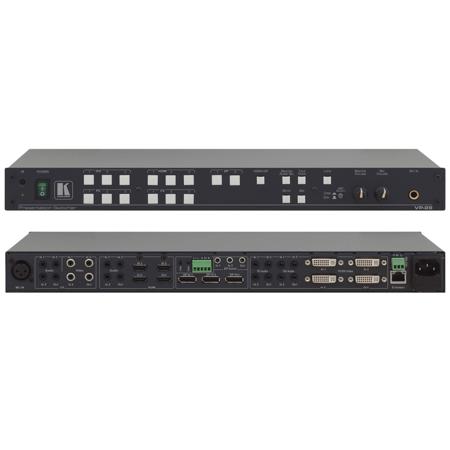

Kramer Electronics VP-28 14-Input Multi-Format Presentation Switcher with Stereo Audio

SKU: KRVP28110V MFR: VP-28/110V
Earn VIP Reward Points

Key Features

  • Seamlessly switch between 14 inputs with this multi-format presentation switcher.
  • Enjoy reliable connectivity for your conference room or production studio setup.
  • This video switcher supports HDMI, DisplayPort, DVI, and composite video formats.
  • Ensure high resolution video output with low latency for smooth presentations.
  • Easily manage audio with stereo audio inputs & balanced master audio outputs.
  • This Kramer video switcher is a great value, perfect for rental and staging needs.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$99.99

3 Year

$119.99

4 Year

$154.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Kramer Electronics VP-28 Specifications

  • Video Inputs

    3 composite video on RCA connectors
    3 HDMI connectors
    2 DisplayPort connectors
    3 PC/DVI on DVI connectors

  • Audio Inputs

    1 mic on an XLR connector
    1 mic on a 6.3mm phone jack connector (3mV/10kW condenser/dynamic)
    3 CV
    3HDMI
    2 DP
    3 PC audio
    3 DVI
    all unbalanced stereo audio on 3.5mm mini jack connectors

  • Video Outputs

    1 composite video on an RCA connector
    1 HDMI connector
    1 DisplayPort connector
    1 PC/DVI on a DVI connector

  • Audio Outputs

    1 CV
    1 HDMI
    1 DP
    1 PC audio
    1 DVI
    all unbalanced stereo audio on a 3.5mm mini jack connectors
    1 master balanced stereo audio on a 5-pin terminal block

  • Max. Output Level

    Video: CV: 1.7Vpp
    XGA: 2.3Vpp
    Audio: Master: 17Vpp from mic
    12.4Vpp from line in
    Local outputs: 8.8Vpp from line inputs

  • Bandwidth (-3dB)

    Video: CV: 680MHz
    XGA: 290MHz (-4dB 400MHz)
    Audio: >25kHz

  • Diff. Gain

    Video: CV: 2.5%
    XGA: 0.1%

  • Diff. Phase

    CV: 0.4Deg
    XGA: 0.1Deg

  • K-factor

    CV: <0.05%
    XGA: <0.05%

  • S/N Ratio

    Video: CV: 74dB
    XGA: 71dB at 5MHz
    Audio: Master: 81dB from mic (at 20mVpp input
    17Vpp output diff
    "A" weighting
    XLR microphone)
    90 to 95dB from line in ("A" weighting)
    Local outputs: 110dB ("A" weighting)

  • Crosstalk at 1KHz (All Hostile)

    Video: CV: - 54dB
    XGA: - 56dB (5MHz)
    Audio: Master: - 70dB
    Local outputs: - 80dB from line in

  • Controls (Level Range)

    MASTER: <-12 to 70dB from mic
    - 79 to +15dB from line in

  • Coupling

    Video: CV: DC
    XGA: DC
    Audio: AC

  • Audio THD+Noise

    Master: 0.4% from mic
    0.02% from line in ("A" weighting)
    Local outputs: 0.04% from line in

  • Audio 2nd Harmonic

    Master: 0.03% from mic
    0.01% from line in
    Local outputs: 0.02%

  • Compliance With HDCP Standard

    Supports HDCP

  • Maximum Bandwidth DP To HDMI

    One or two lane (1.65Gbps per lane)

  • Indicator LEDs

    IR

  • Power Consumption

    90-264V AC
    23VA

  • Operating Temperature

    0 to 40 deg. C (32 to 104 deg. F)

  • Storage Temperature

    -40 to 70 deg. C (-40 to 158 deg. F)

  • Humidity

    10% to 90%
    RHL non-condensing

  • Applications

    Presentation and conference room systems.
    Production studios
    as well as rental and staging.

  • Dimensions (WxDxH)

    43.6 x 18.30 x 4.36cm (17.17 x 7.20 x 1.72")

  • Weight

    4 lbs (1.81kg)

  • UPC Code

    7291063004576

About Kramer Electronics VP-28

When seeking a sophisticated and versatile solution for your presentation needs, the VP-28 14-Input Multi-Format Presentation Switcher stands out as an advanced, high-quality choice. This professional-grade switcher is designed to seamlessly integrate a wide array of video and audio sources, ensuring a smooth and dynamic presentation experience.

The VP-28 boasts an impressive 14 inputs, accommodating a diverse range of formats including composite video, HDMI, DVI, DisplayPort, and computer graphics video. Each input is complemented by unbalanced stereo audio, allowing for rich and clear sound to accompany your visuals. The switcher operates as a 3x1 composite video, 3x1 HDMI, 3x1 computer graphics video, 3x1 DVI-I, and 2x1 DisplayPort switcher, providing the flexibility needed for complex setups.

Innovative in its design, the VP-28 features a variety of interfaces to cater to your connectivity requirements. With audio, composite, DVI, DisplayPort, Ethernet, HDMI, multi-format, RS-232, and wire terminals, this switcher is equipped to handle the demands of corporate presentations, live events, and any professional setting where multiple video sources need to be managed and displayed on a single screen.

The VP-28's large number of inputs and comprehensive interface options make it a superior choice over alternatives, offering unparalleled flexibility and performance. Whether you're orchestrating a high-stakes business presentation or producing a live event, the VP-28 14-Input Multi-Format Presentation Switcher with Stereo Audio is the innovative solution that will elevate your audiovisual capabilities.

Kramer Electronics VP-28 Features

  • Max. Data Rate - 6.75Gbps (2.25Gbps per graphic channel) (HDMI & DVI)
  • HDTV Compatible
  • HDCP Compliant
  • Audio Level Memory - Remembers and returns to the last audio level setting during switching
  • Condenser or Dynamic Microphone - Button selectable
  • Microphone & Audio Mixing - Input selectable master audio output
  • Mic Talkover - Mutes master audio output when mic signal is sensed
  • Level Controls - Master audio output, microphone input
  • Flexible Control Options - Front panel, RS-232, Ethernet & IR (included)
  • Front Panel Control Lockout
  • Worldwide Power Supply - 100-240V AC
  • Accessory - DVI to DVI and VGA breakout cable (included)
  • Standard 19" Rack Mount Size - 1U. Rack "ears" included

Warranty Information

This product has a limited warranty of 84 months.

Key Features

  • Seamlessly switch between 14 inputs with this multi-format presentation switcher.
  • Enjoy reliable connectivity for your conference room or production studio setup.
  • This video switcher supports HDMI, DisplayPort, DVI, and composite video formats.
  • Ensure high resolution video output with low latency for smooth presentations.
  • Easily manage audio with stereo audio inputs & balanced master audio outputs.
  • This Kramer video switcher is a great value, perfect for rental and staging needs.

What's in the box:

  • Kramer Electronics VP-28 14-Input Multi-Format Presentation Switcher with Stereo Audio
  • Power Cord
  • 2x Rack Ears
  • ADC-DM/DF+GF DVI to DVI and VGA Breakout Cable
  • Infrared Remote Control Transmitter with Batteries
  • 4x Rubber Feet
  • Quick Start Guide
  • Kramer Electronics 7 Year Limited Warranty
