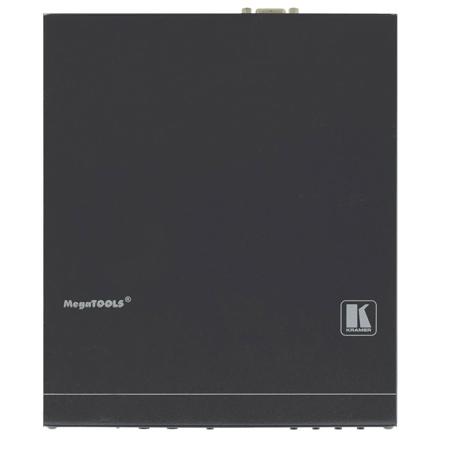

Kramer Electronics VP-428H2 4K60 4:4:4 HDMI, VGA & DisplayPort Auto Switcher/Scaler and PoE Provider over HDBaseT

SKU: KRVP428H2 MFR: 72-00003790
Earn VIP Reward Points

Key Features

  • Seamlessly switch between HDMI, VGA, & DisplayPort sources with this Kramer auto switcher.
  • Enjoy stunning 4K60 4:4:4 video quality for crisp, clear images using this HDMI switch.
  • Extend your reach with HDBaseT, delivering video, audio, & PoE over a single cable.
  • Simplify control using RS-232 for device management, perfect for conference rooms.
  • Upscale your home theater or classroom with versatile video scaling capabilities.
  • This Kramer switcher supports multiple resolutions, ensuring compatibility with various devices.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$209.99

3 Year

$299.99

4 Year

$359.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Kramer Electronics VP-428H2 Specifications

  • Inputs

    1 DP: On a Display Port connector
    1 HDMI : On a female HDMI connector
    1 PC: On a 15-pin HD connector
    1 Stereo Analog Unbalanced Audio: On a 3.5mm mini jack
    1 IR: On a 3.5mm mini jack

  • Outputs

    HDBaseT: On an RJ-45 port
    1 IR: On a 3.5mm mini jack

  • Ports

    1 Ethernet: On an RJ-45 female connector for port tunneling
    1 USB: On a female USB-A connector
    1 DATA RS-232: On a 3-pin terminal block for serial link extension
    1 CTRL RS-232: On a 3-pin terminal block for device control

  • Video

    Max Data Rate: 10.2Gbps (3.4Gbps per graphic channel)
    Max. Input Resolution: 4Kat 60Hz (4:4:4)
    Max. Output Resolution: 4Kat 60Hz (4:2:0)
    Standards Compliance: HDMI 2.0
    HDCP 2.2 and DP 1.2A
    Switching Time Between Inputs: 2 to 3 seconds
    Video Latency: 2 to 3 frames

  • Video: Input Resolutions

    640x350at 60/70/85Hz
    640x400at 70/85Hz
    640x480at 57/60/66/72/85Hz
    720x400at 70/85Hz
    720x480at 60i/60p/60Hz
    720x576at 50i/50p/60Hz
    800x600at 56/60/72/75/85Hz
    832x624at 75Hz
    848x480at 59/60Hz
    864X648at 60Hz
    1024x768at 43i/60/70/75/85Hz
    1152x864at 60/70/75/85Hz
    1152x870at 60/75Hz
    1280x720at 25p/30p/50p/60p/75Hz

  • Video: Input Resolutions (Cont.)

    1280x768at 50/60 (RB)/60/75/85Hz
    1280x800at 59/60/75/85Hz
    1280x960at 60/75/85Hz
    1280x1024at 59/60/72/75/76/85Hz
    1360x768at 60Hz
    1366x768at 60Hz
    1400x1050at 59/60/75Hz
    1440x900at 60 (RB)/60/75/85Hz
    1600x900at 60 (RB)/60/75Hz
    1600x1024at 60/75Hz

  • Video: Input Resolutions (Cont..)

    1600x1200at 51/59/60/65/70/75Hz
    1680x1050at 59/60/75Hz
    1920x1200at 59/60/65/75Hz
    1920x1080at 50i/60i/24p/25p/30p/50p/60p/60Hz
    920X1080at 60s
    1920X1080at 50vesa
    3840x2160at 24p/25p/30p/50p/50p (420)/60p/60p (420)/60p (RB)
    4096x2160at 24p/25p/30p/50p/50p (420)/60p/60p (420)

  • Video: Output Resolutions

    Native
    640x480at 60Hz
    720x480Pat 60Hz
    720x576Pat 50Hz
    800x600at 60Hz
    1024x768at 60Hz
    1280x720at 60Hz
    1280x768at 60Hz
    1280x800at 60Hz
    1280x1024at 60Hz
    1360x768at 60Hz
    1400x1050at 60Hz
    1440x900at 60Hz
    1600x1200at 60Hz
    1680x1050at 60Hz
    1920x1080at 60Hz
    1920x1200at 60Hz
    1280x720Pat 50/60Hz
    1920x1080Pat 24/25/30/50/60Hz
    4Kat 24/25/30Hz
    4K2K(4:2:0)at 50/60Hz

  • Power

    Source: 48V DC
    1.36A
    Consumption: 48V DC
    410mA

  • Enclosure

    Cooling: Convection ventilation
    Type: Aluminum

  • Operating Temperature

    0 to 40 deg. C (32 to 104 deg. F)

  • Storage Temperature

    -40 to 70 deg. C (-40 to 158 deg. F)

  • Humidity

    10% to 90%
    RHL non-condensing

  • Applications

    Educational - classrooms
    lecture theaters
    Projection systems in conference rooms
    boardrooms
    hotels and churches
    Home theater up-scaling

  • Dimensions (WxDxH)

    7.38 x 4.53 x 1.00" (187.45 x 115.06 x 25.40mm)

  • Weight

    1.9 lbs (0.86kg)

  • UPC Code

    7291063085957

About Kramer Electronics VP-428H2

An indispensable tool for modern audiovisual setups, the VP-428H2 stands out as a highly advanced 4K60 4:4:4 HDMI, VGA, and DisplayPort Auto Switcher/Scaler, equipped with PoE (Power over Ethernet) capabilities over HDBaseT. This robust and efficient device from Kramer Electronics is engineered to seamlessly switch between HDMI, DisplayPort, and VGA inputs, ensuring that high-definition video and audio signals are managed with precision and reliability.

Crafted with durability in mind, the VP-428H2 supports the tunneling of Ethernet, bidirectional RS-232, and IR signals over HDBaseT, streamlining the integration of various components within professional AV systems. Its ability to provide power to the HDBaseT receiver via PoE simplifies installation and reduces the need for additional power sources, making it a convenient and cost-effective solution for any setting.

The VP-428H2 excels in its versatility, offering users the ability to upscale, downscale, or bypass video signals to match the native resolution of connected displays. This ensures optimal image quality and performance, whether in a high-stakes conference room presentation or an interactive classroom environment.

With its high-quality construction and reliable performance, the VP-428H2 is the perfect choice for those seeking a state-of-the-art solution to manage and distribute AV signals across multiple platforms. Its advanced features and ease of use make it a top contender in the professional audio and video industry, solidifying its position as a trusted device for businesses and educational institutions alike.

Kramer Electronics VP-428H2 Features

  • PixPerfect Scaling Technology - Kramer's precision pixel mapping and high-quality scaling technology
  • HDMI 2.0 Compliant
  • HDCP 2.2 Compliant
  • HDBaseT Certified
  • System Range - For the HDBaseT output, extended reach of up to 100m (330ft) using Kramer recommended cables
  • Provides Power (PoE) on HDBaseT Output to Compatible Devices
  • Max. Resolutions - Input: 4K at 60Hz (4:4:4); Output: 4K at 60Hz (4:2:0)
  • Max. VGA Resolution - 1920 x 1200 at 60Hz
  • Built-in ProcAmp - Color, hue, sharpness, noise, contrast and brightness are set individually for each input
  • Constant Output Sync - No output disruption while switching between inputs when no video is detected
  • Audio - Unbalanced stereo and embedded audio
  • Auto Input Switching - Last connected & auto-scan, selectable
  • HDBaseT Tunneling - Supports full HDBaseT tunneling of Ethernet and RS-232 data
  • Non-Volatile Memory - Saves final settings
  • Flexible Control Options - Front panel push buttons, RS-232, OSD (on-screen display) menu with front panel navigation buttons

Warranty Information

This product has a limited warranty of 84 months.

Key Features

  • Seamlessly switch between HDMI, VGA, & DisplayPort sources with this Kramer auto switcher.
  • Enjoy stunning 4K60 4:4:4 video quality for crisp, clear images using this HDMI switch.
  • Extend your reach with HDBaseT, delivering video, audio, & PoE over a single cable.
  • Simplify control using RS-232 for device management, perfect for conference rooms.
  • Upscale your home theater or classroom with versatile video scaling capabilities.
  • This Kramer switcher supports multiple resolutions, ensuring compatibility with various devices.

What's in the box:

  • Kramer Electronics VP-428H2 4K60 4:4:4 HDMI/VGA & DisplayPort Auto Switcher/Scaler and PoE Provider over HDBaseT
  • Power Adapter & Cord
  • Bracket Set
  • 4x Rubber Feet
  • Quick Start Guide
  • Kramer Electronics 7 Year Limited Warranty
