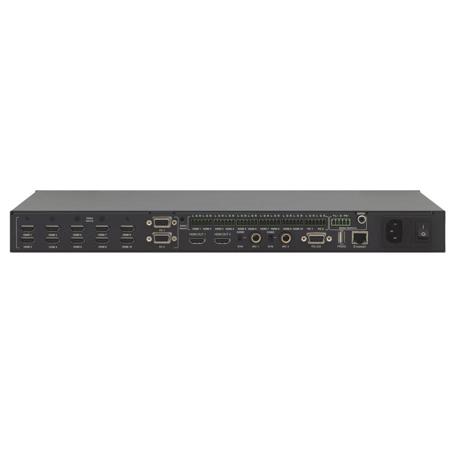

Kramer Electronics VP-444 12-Input 1U HDMI/Analog ProScale Presentation Switcher
See all Kramer Electronics items

Kramer Electronics VP-444 12-Input 1U HDMI & Analog ProScale Presentation Digital Scaler/Switcher with Microphone Inputs & Ethernet Control

SKU: KRVP444

This item is no longer available.

Recommended Alternatives

Kramer Electronics VP-16x18AK: Picture 1 regular

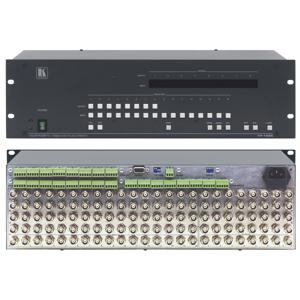

Kramer Electronics VP-16x18AK 16x18 Matrix Switcher
$11,175.00$8,940.00
Kramer Electronics DIP-20: Picture 1 regular
Kramer Electronics DIP-20 4K60 4:2:0 HDMI & VGA Auto Switcher and PoE Provider
$1,040.00
Kramer Electronics DIP-31: Picture 1 regular
Kramer Electronics DIP-31 4K UHD Computer Graphics Automatic Video Switcher
$764.00
Kramer Electronics FC-132ETH: Picture 1 regular
Kramer Electronics FC-132ETH Advanced Serial Communication Matrix
$1,795.00$1,551.20
See More Recommendations
Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Kramer Electronics VP-444 Specifications

  • Inputs

    10 HDMI connectors (HDMI, HDCP version 1.1), 2 VGA on a 15-pin HD connector, 1 unbalanced stereo audio on 12 3-pin terminal block connectors, 2 mic on 6mm jack connectors (with selectable 48V phantom power)

  • Outputs

    2 HDMI connectors (HDMI, HDCP version 1.1), 1 S/PDIF on an RCA connector, 1 unbalanced stereo audio on a 5-pin terminal block connector

  • Bandwidth

    Up to 1080p, UXGA

  • Switching Time Between Inputs

    2 to 3 seconds

  • Video Latency

    Less than 2 frames

  • Output Resolutions

    Native, 640x480 at 60Hz, 800x600 at 60Hz, 1024x768 at 60Hz, 1280x768 at 60Hz, 1360x768 at 60Hz, 1280x720 at 60Hz, 1280x800 at 60Hz, 1280x1024 at 60Hz, 1440x900 at 60Hz, 1400x1050 at 60Hz, 1680x1050 at 60Hz, 1600x1200 at 60Hz, 1920x1080 at 60Hz, 1920x1200 at 60Hz, 480p at 60Hz, 720p at 60Hz, 1080i at 60Hz, 1080p at 60Hz, 576p at 50Hz, 720p at 50Hz, 1080i at 50Hz, 1080p at 50Hz

  • Controls

    HDMI 1 to HDMI 10 and PC 1 to PC 2 input selector buttons, Freeze, Mute buttons, Menu and navigation buttons, Reset to XGA/720p and lock buttons, RS-232, IR, Ethernet (OSD and Web pages), USB for firmware upgrading.

  • Power Consumption

    100 to 240V AC, 22VA Max.

  • Operating Temperature

    0 to 40 deg. C / 32 to 104 deg. F

  • Storage Temperature

    -40 to 70 deg. C / -40 to 158 deg. F

  • Humidity

    10 to 90%, RHL non-condensing.

  • Rack Mount Height

    1 U

  • Dimensions (W x D x H)

    19 x 7"/ 482.6 x 177.8mm

  • Weight

    Approx. 5.95lbs / 2.7kg

  • UPC Code

    7291063067236

About Kramer Electronics VP-444

• Resolutions - Up to WUXGA/1080p
• 2 Microphone Inputs
• Audio Equalization, Mixing, Delay, etc.
• Control - IR remote with OSD, Ethernet with built-in Web pages & RS-232.
• Size - 19" (1U) Rack "ears" .
• Audio - U/D/E

The VP-444 is a high-performance presentation scaler/switcher for HDMI and computer graphics signals. The unit scales the video, embeds the audio and outputs the signal to two HDMI (with embedded audio) outputs (with S/PDIF and balanced stereo audio) simultaneously.

• Kramer's PiXPerfect Scaling Technology - Kramer's precision pixel mapping and high-quality scaling technology. High-quality 3:2 and 2:2 pull down de-interlacing and full up and down scaling of all video input signals.
• HDTV Compatible.
• HDCP Compliant.
• Video Inputs - 10 HDMI & 2 computer graphics video on 15-pin HD connectors.
• Scaled Outputs - 2 HDMI.
• 22 Output Resolutions - Up to WUXGA/1080p.
• 2 Microphone Inputs - For mixing, switching or talk-over (with 48V phantom selection).
• Auto Input Scanning and Switching.
• Companion AFV (Audio-Follow-Video) - Stereo audio for every input (on terminal blocks).
• Audio Inputs - 12 unbalanced stereo on terminal blocks & embedded audio for HDMI inputs, each with individual level controls.
• Audio Outputs - 1 S/PDIF on an RCA connector, 1 balanced stereo audio on a terminal block, embedded audio on the HDMI outputs.
• Multiple Aspect Ratio Selections - Full, overscan, underscan, letterbox & panscan.
• Audio DSP - Powerful digital audio signal processing, including audio equalization, mixing, delay, etc.
• Built-in ProcAmp - Color, hue, sharpness, noise, contrast & brightness.
• Color Sampling - Supports 4:4:4 (RGB and YUV) as well as 4:4:2 (YUV) color sampling.
• Constant Output Sync - No disruption on the output while switching between inputs and when no video is detected.
• Front Panel Control - Audio mute & freeze frame.
• Built-in Web Pages.
• Front Panel Lockout.
• Non-Volatile Memory - Saves final settings.
• Flexible Control Options - Front panel, IR remote with OSD (on-screen display), Ethernet with built-in Web pages & RS-232.
• Worldwide Power Supply - 100-240V AC.
• Size - Standard 19" (1U). Rack "ears" .

Applications
• Projection systems in conference rooms, boardrooms, classrooms, hotels and churches
• Home theater up-scaling

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Kramer Electronics VP-444 12-Input 1U HDMI/Analog ProScale Presentation Switcher
  • Power Cord
  • Rack Ears
  • IR Remote Control
  • Kramer Electronics 7 Year Limited Warranty
