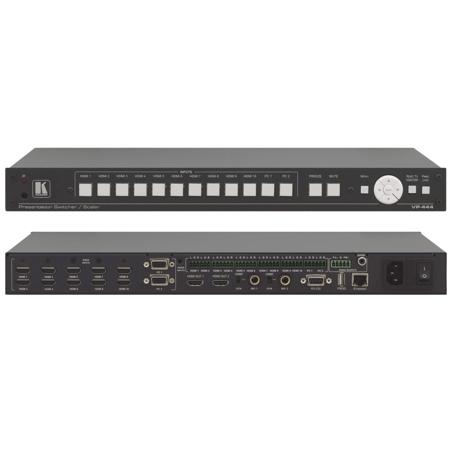

Kramer Electronics VP-444 12-Input HDMI & Analog Presentation Digital Scaler
See all Kramer Electronics items

Kramer Electronics VP-444 12-Input HDMI & Analog ProScale Presentation Digital Scaler/Switcher with Microphone Inputs & Ethernet Control

SKU: KRVP444110V
Be the first to review this item

This item is no longer available.

Recommended Alternatives

Kramer Electronics VP-16x18AK: Picture 1 regular
Kramer Electronics VP-16x18AK 16x18 Matrix Switcher
$11,175.00$8,940.00
Kramer Electronics DIP-20: Picture 1 regular
Kramer Electronics DIP-20 4K60 4:2:0 HDMI & VGA Auto Switcher and PoE Provider
$1,040.00
Kramer Electronics DIP-31: Picture 1 regular
Kramer Electronics DIP-31 4K UHD Computer Graphics Automatic Video Switcher
$764.00
Kramer Electronics FC-132ETH: Picture 1 regular
Kramer Electronics FC-132ETH Advanced Serial Communication Matrix
$1,795.00$1,551.20
See More Recommendations
Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Kramer Electronics VP-444 Specifications

  • Inputs

    10 HDMI connectors (HDMI
    HDCP version 1.4)
    2 VGA on a 15-pin HD connector
    1 unbalanced stereo audio on 12 3-pin terminal block connectors
    2 mic on 6mm jack connectors (with selectable 48V phantom power)

  • Outputs

    2 HDMI connectors (HDMI
    HDCP version 1.4),
    1 S/PDIF on an RCA connector
    1 unbalanced stereo audio on a 5-pin terminal block connector

  • Bandwidth

    Up to 1080p
    UXGA

  • Switching Time Between Inputs

    2 to 3 seconds

  • Video Latency

    Less than 2 frames

  • Output Resolutions

    Native
    640x480 at 60Hz
    800x600 at 60Hz
    1024x768 at 60Hz
    1280x768 at 60Hz
    1360x768 at 60Hz
    1280x720 at 60Hz
    1280x800 at 60Hz
    1280x1024 at 60Hz
    1440x900 at 60Hz
    1400x1050 at 60Hz
    1680x1050 at 60Hz
    1600x1200 at 60Hz
    1920x1080 at 60Hz
    1920x1200 at 60Hz
    480p at 60Hz
    720p at 60Hz
    1080i at 60Hz
    1080p at 60Hz
    576p at 50Hz
    720p at 50Hz
    1080i at 50Hz
    1080p at 50Hz

  • Controls

    HDMI 1 to HDMI 10 and PC 1 to PC 2 input selector buttons
    Freeze
    Mute buttons
    Menu and navigation buttons
    Reset to XGA/720p and lock buttons
    RS-232
    IR
    Ethernet (OSD and Web pages)
    USB for firmware upgrading

  • Power Consumption

    100-240V AC
    22VA max

  • Operating Temperature

    0 to 40 deg. C (32 to 104 deg. F)

  • Storage Temperature

    -40 to 70 deg. C (-40 to 158 deg. F)

  • Humidity

    10% to 90%
    RHL non-condensing

  • Applications

    Projection systems in conference rooms
    boardrooms
    classrooms
    hotels and churches
    Home theater up-scaling

  • Dimensions (WxDxH)

    21.65 x 10.87 x 4.21" (549.91 x 276.10 x 106.93mm)

  • Weight

    5.5 lbs (2.49kg)

  • UPC Code

    7290108020717

About Kramer Electronics VP-444

The VP-444 is a high-performance presentation scaler/switcher for HDMI and computer graphics signals. The unit scales the video, embeds the audio and outputs the signal to two HDMI (with embedded audio) outputs (with S/PDIF and balanced stereo audio) simultaneously.

Kramer Electronics VP-444 Features

  • Kramer's PixPerfect Scaling Technology - Kramer's precision pixel mapping and high-quality scaling technology. High-quality 3:2 and 2:2 pull down de-interlacing and full up and down scaling of all video input signals
  • HDTV Compatible
  • HDCP Compliant
  • Video Inputs - 10 HDMI & 2 computer graphics video on 15-pin HD connectors
  • Scaled Outputs - 2 HDMI
  • 22 Output Resolutions - Up to WUXGA/1080p
  • 2 Microphone Inputs - For mixing, switching or talk-over (with 48V phantom selection)
  • Auto Input Scanning and Switching
  • Companion AFV (Audio-Follow-Video) - Stereo audio for every input (on terminal blocks)
  • Audio Inputs - 12 unbalanced stereo on terminal blocks & embedded audio for HDMI inputs, each with individual level controls
  • Audio Outputs - 1 S/PDIF on an RCA connector, 1 balanced stereo audio on a terminal block, embedded audio on the HDMI outputs
  • Multiple Aspect Ratio Selections - Full, overscan, underscan, letterbox & panscan
  • Audio DSP - Powerful digital audio signal processing, including audio equalization, mixing, delay, etc
  • Built-in ProcAmp - Color, hue, sharpness, noise, contrast & brightness
  • Color Sampling - Supports 4:4:4 (RGB and YUV) as well as 4:4:2 (YUV) color sampling
  • Constant Output Sync - No disruption on the output while switching between inputs and when no video is detected
  • Front Panel Control - Audio mute & freeze frame
  • Built-in Web Pages
  • Front Panel Lockout
  • Non-Volatile Memory - Saves final settings
  • Flexible Control Options - Front panel, IR remote with OSD (on-screen display), Ethernet with built-in Web pages & RS-232
  • Worldwide Power Supply - 100-240V AC

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Kramer Electronics VP-444 12-Input HDMI & Analog ProScale Presentation Digital Scaler/Switcher
  • 2x Rack Ears
  • 4x Rubber Feet
  • Power Cord
  • IR Remote Control with Batteries
  • Quick Start Guide
  • Kramer Electronics 7 Year Limited Warranty
