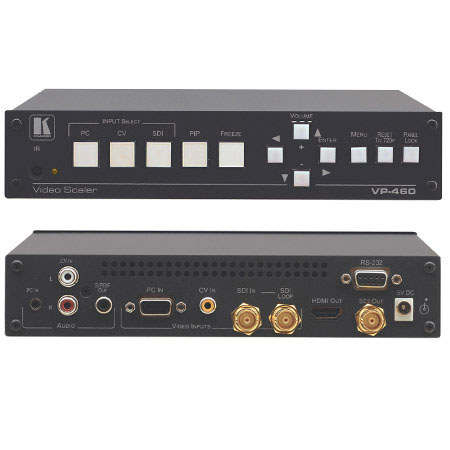

Kramer Electronics VP-460 3-Input Analog & 3G HD-SDI ProScale Presentation Switcher/Scaler

Kramer Electronics VP-460 Features

• K-IIT XL Picture-in-Picture Image Insertion Technology - Ultra-stable picture-in-picture, picture-and-picture and split screen capability. Any video source can be inserted into or positioned next to an SDI video source or vice versa with window positioning and sizing controls
• Kramer's PixPerfect Scaling Technology - Kramer's precision pixel mapping and high quality scaling technology. High-quality 3:2 and 2:2 pull down de-interlacing and full up and down-scaling of all video input signals
• Ultra-Fast Fade-Thru-Black (FTB) Switching - Video switching transitions are clean and ultra fast. The video fades to black and the new input fades from black for smooth, glitch-free switching. The output signal provides constant sync so the display never glitches
• HDTV Compatible
• Multi-Standard Operation - SDI (SMPTE 259M), HD-SDI (SMPTE 292M) and 3G HD-SDI (SMPTE 424M)
• Video Inputs - 1 computer graphics on a 15-pin HD connector, 1 composite video on an RCA connector, 1 SD/HD/3G HD-SDI with loop on BNC connectors
• Scaled Outputs - 1 HDMI, 1 SD/HD/3G HD-SDI on a BNC connector
• 40 Output Resolutions - Up to WUXGA, 1080p and 2K
• HDMI Deep Color Support - For inputs and outputs
• Luma Keying - Via PIP window
• Vertical Keystoning
• Built-in ProcAmp - Color, sharpness, contrast, brightness and gamma are set individually for each input
• 3D Comb Filtering - Provides the best quality color separation for composite video inputs
• Built-in Time Base Corrector - Stabilizes unstable video sources
• Powerful Noise Reduction Filters - Temporal, block, mosquito and combing
• Picture Zooming - From 100% to 1600% on both main and PIP picture
• De-interlacing - 3:2 and 2:2 pull-down; 24sf handling
• Multiple Aspect Ratio Selections - Follow input, follow output, best fit, letterbox and overscan
• Dual Window Display - Preset picture-in-picture, picture-and-picture and split screens, as well as customized window layouts
• Audio Inputs - 1 computer graphics on a 3.5mm mini-jack connector, 1 CV on RCA connectors; embedded audio (user selectable) on the SDI input
• Audio Outputs - 1 S/PDIF on an RCA connector, embedded audio on the HDMI and SDI outputs
• Power Save Modes - Options for efficient energy use
• Advanced EDID Management - For each input and each output
• Flexible Control Options - Front panel buttons, OSD (on-screen display) via front panel buttons or IR remote (remote control included); control application software for use via RS-232
• Desktop Size - Compact size. 2 units can be rack mounted side-by-side in a 1U rack space with an optional RK-1 adapter
