Kramer Electronics VP-733 12-Input ProScale Presentation Matrix Switcher and 4K30 UHD Scaler

Discover the VP-733, a versatile 12-input ProScale Presentation Matrix Switcher/Dual Scaler designed to meet the complex needs of modern multimedia presentations and professional AV environments. With its comprehensive array of inputs, including HDMI, DisplayPort, HDBaseT, and user-definable universal analog video inputs, the VP-733 is engineered to accommodate a diverse range of sources. Each analog input can be individually set to support computer graphics, composite video, s-Video (Y/C), or component video, ensuring compatibility with virtually any device.

Experience unparalleled image quality as the VP-733 effortlessly up-scales or down-scales video to your preferred output resolutions, reaching up to 4K30 UHD for stunning clarity. The unit's advanced PixPerfect Scaling Technology ensures precision pixel mapping and high-quality image reproduction, while the built-in Proc-Amp allows for individual color, hue, sharpness, contrast, and brightness adjustments per input.

Seamless transitions between sources are made possible by the fast Fade-Thru-Black (FTB) switching technology, delivering smooth, glitch-free switching without loss of sync. The VP-733's dual scalers enable independent Program and Preview outputs, which can be used simultaneously or configured for engaging picture-in-picture (PIP) displays, with K-IIT XL Picture-in-Picture Image Insertion Technology ensuring ultra-stable image overlay.

The VP-733 boasts a rich suite of audio features, including digital audio embedding and de-embedding, as well as 10 analog stereo inputs. Audio outputs are comprehensive, with analog, S/PDIF, and a speaker output capable of delivering 10W per channel into 8 Ohms, all enhanced by DSP technology for audio equalization, mixing, and delay.

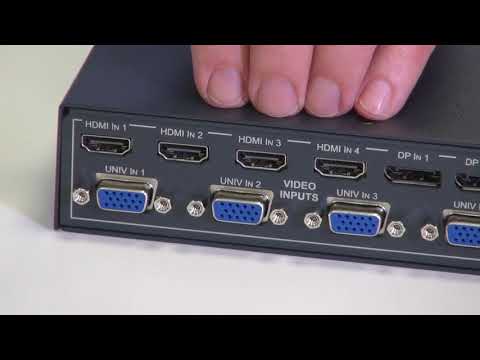

Connectivity is robust, with scaled video outputs available on two HDMI connectors, one HDBaseT, one DisplayPort, and a 15-pin HD computer graphics video connector. The unit supports multiple computer graphics output resolutions, including user-defined options, and embedded audio on HDMI, HDBaseT, and DisplayPort inputs and outputs.

Control the VP-733 with ease using various options such as RS-232 serial commands, an infrared remote control transmitter, or Ethernet with built-in Web pages. The unit also features a USB port for downloading a custom splash-screen logo and storing or downloading configurations via a disk-on-key.

Additional function buttons include Blank and Freeze for preview and program modes, Reset to XGA/720p for output resolution resetting, and PANEL LOCK to prevent unauthorized adjustments. The VP-733 also supports text overlay via a user-friendly software application and offers an Ethernet-based firmware upgrade for continuous performance enhancement.

With its built-in Time Base Corrector for stabilizing video sources and video processing filters to eliminate picture artifacts, the VP-733 ensures that your presentations are delivered with the highest level of professionalism. Non-volatile memory retains the last settings after power cycling, and the unit's ability to scale and zoom up to 400% of the original size provides exceptional flexibility for any presentation scenario.

Elevate your presentation capabilities with the VP-733 12-Input ProScale Presentation Matrix Switcher and 4K30 UHD Scaler, the ultimate solution for dynamic and high-quality audiovisual experiences.
