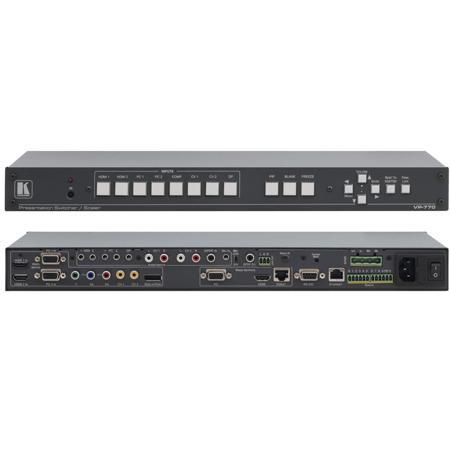

Kramer Electronics VP-770 8-Input ProScale Presentation Switcher/Scaler with Speaker Output

SKU: KRVP770110V MFR: 70-710231110
Earn VIP Reward Points

Key Features

  • Seamlessly switch between 8 inputs with this ProScale presentation switcher for dynamic displays.
  • Achieve high-quality video conversion with the VP-770 video switcher, perfect for any projection need.
  • Enjoy wide compatibility, supporting HDMI, VGA, DisplayPort, & more on this versatile switcher.
  • Easily manage your presentation system via front panel, IR remote, or RS-232 control.
  • Enhance audio with S/PDIF & balanced stereo outputs, plus a 2x10W speaker amplifier.
  • Ideal for conference rooms & studios, this video switcher ensures reliable, low latency connections.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$99.99

3 Year

$119.99

4 Year

$154.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Kramer Electronics VP-770 Specifications

  • Inputs

    2 HDMI (deep color) connectors,
    2 VGA on 15-pin HD connectors,
    1 component video on 3 RCA connectors,
    2 composite video on RCA connectors,
    1 DisplayPort connector,
    2 HDMI
    2 VGA
    1 DP
    2 CV unbalanced stereo audio on 3.5mm mini jack connectors,
    1 S/PDIF (for component video input) digital audio on an RCA connector,
    1 mic on a 3.5mm mini jack connector

  • Outputs

    1 VGA on a 15-pin HD connector,
    1 HDMI (deep color)connector,
    1 DGKat on an RJ-45 connector,
    1 S/PDIF digital audio on an RCA connector,
    1 unbalanced stereo audio on a 3-pin terminal block connector,
    12x10W speaker amplifier balanced stereo audio on terminal block connectors

  • Compliance With HDMI Standard

    Supports HDMI (deep color) and HDCP
    Supports: DisplayPort 1.1a

  • Output Resolutions

    640x480 at 60
    640x480 at 75
    800x600 at 50
    800x600 at 60
    800x600 at 75
    1024x768 at 50
    1024x768 at 60
    1024x768 at 75
    1280x768 at 50
    1280x768 at 60
    1280x800 at 60
    1280x1024 at 50
    1280x1024 at 60
    1280x1024 at 75
    1360x768p60
    1366x768 at 50
    1366x768 at 60
    1400x1050 at 50
    1400x1050 at 60
    1600x900 at 60
    1600x1200 at 50

  • Output Resolutions (Cont.)

    1600x1200 at 60
    1680x1050 at 60
    1920x1200 at 60
    480i at 60
    480p at 60
    576i at 50
    576p at 50
    720p at 50
    720p at 59.94
    720p at 60
    1080p at 23.976
    1080p at 24
    1080p at 25
    1080p at 29.97
    1080p at 30
    1080p at 50
    1080p at 59.94
    1080p at 60
    2048x1080 at 60Hz
    2048x1080 at 50Hz

  • Controls

    Front panel buttons, OSD, IR remote control, RS-232 on a 9-pin D-sub connector, Ethernet, contact closure

  • Operating Temperature

    0 to 40 deg. C (32 to 104 deg. F)

  • Storage Temperature

    -40 to 70 deg. C (-40 to 158 deg. F)

  • Humidity

    10% to 90%
    RHL non-condensing

  • Applications

    Projection systems in conference rooms
    boardrooms
    auditoriums
    hotels and churches
    production studios
    rental and staging.
    Any application where high quality conversion and switching of multiple and different video signals to graphical data signals is required for projection purposes.

  • Dimensions (WxDxH)

    43.6 x 23.72 x 4.36cm (17.17 x 9.34 x 1.72")

  • Weight

    5.5 lbs (2.49kg)

  • UPC Code

    7291063059750

About Kramer Electronics VP-770

The VP-770 8-Input ProScale Presentation Switcher/Scaler with Speaker Output is a high-performance, professional-grade device designed for seamless integration of multiple video and audio sources. This device is compatible with a variety of signal types including composite video, component video, DisplayPort, computer graphics video, and HDMI signals.

The VP-770 not only switches between these inputs but also scales the video to ensure optimal resolution. It embeds the audio into the output signal, which can be transmitted via HDMI, computer graphics, and DGKat twisted pair. This device also features digital audio, unbalanced stereo, and a robust 10-watt amplified balanced stereo speaker output.

One of the standout features of the VP-770 is the K-IIT XL Picture-in-Picture Image Insertion Technology. This allows for ultra-stable picture-in-picture, picture-and-picture, and split-screen capabilities. You can insert or position any video source next to any other with full control over window positioning and sizing.

The VP-770 also boasts Kramer's PixPerfect Scaling Technology, a precision pixel mapping and high-quality scaling technology. This ensures high-quality 3:2 and 2:2 pull down de-interlacing and full up and down scaling of all video input signals.

The device also features Ultra-Fast Fade-Thru-Black (FTB) Switching, ensuring clean and ultra-fast video switching transitions. The output signal provides constant sync, so the display never glitches.

The VP-770 is equipped with Advanced EDID Management for each input and analysis of the EDID of a selectable master connection to one of the outputs. It also includes a Mass Notification Emergency Communication System (MNEC) that activates a national or campus-wide notification, immediately displayed when an emergency situation develops.

The device is HDCP Compliant, allowing copy-protected data on the HDMI input to pass only to the HDMI output. It also features a variety of video inputs and scaled outputs, built-in ProcAmp for individual input settings, 3D Comb Filtering for optimal color separation, multiple aspect ratio selections, and dual window display.

The VP-770 also includes a variety of audio inputs and outputs, including a 2x10W built-in power amplifier with speaker outputs on terminal block connectors. This device is designed to deliver high-quality audio and video performance for professional presentations and multimedia applications.

Kramer Electronics VP-770 Features

  • HDTV Compatible
  • Multiple Output Resolutions - Up to 2K and 1080p
  • HDMI Deep Color Support
  • Luma Keying - Via PIP window
  • Vertical Keystoning
  • Input and Output Audio Level Adjustment
  • Built-in Time Base Corrector - Stabilizes unstable video sources
  • Powerful Noise Reduction Filters - Temporal, block, mosquito and combing
  • Picture Zooming - Up to 1600% both on main and PIP picture
  • De-interlacing - 3:2 and 2:2 pull-down; 24sf handling
  • Audio Delay - For lip-sync correction
  • Selectable Power Saving Modes - For efficient energy usage
  • Microphone Input - Supports mix and talk-over features, as well as delay to prevent feedback
  • Non-Volatile Memory - Saves final settings
  • Firmware Upgrades - Via Ethernet and RS-232
  • Flexible Control Options - Front panel buttons, contact closure, OSD (on-screen display) via front panel buttons or IR remote (remote control included)
  • Worldwide Power Supply - 100-240V AC

Warranty Information

This product has a limited warranty of 84 months.

Key Features

  • Seamlessly switch between 8 inputs with this ProScale presentation switcher for dynamic displays.
  • Achieve high-quality video conversion with the VP-770 video switcher, perfect for any projection need.
  • Enjoy wide compatibility, supporting HDMI, VGA, DisplayPort, & more on this versatile switcher.
  • Easily manage your presentation system via front panel, IR remote, or RS-232 control.
  • Enhance audio with S/PDIF & balanced stereo outputs, plus a 2x10W speaker amplifier.
  • Ideal for conference rooms & studios, this video switcher ensures reliable, low latency connections.

What's in the box:

  • Kramer Electronics VP-770 8-Input ProScale Presentation Switcher/Scaler
  • 2x Rack Ears
  • Power Cord
  • 4x Rubber Feet
  • IR Remote Control with Batteries
  • Quick Start Guide
  • Kramer Electronics 7 Year Limited Warranty
