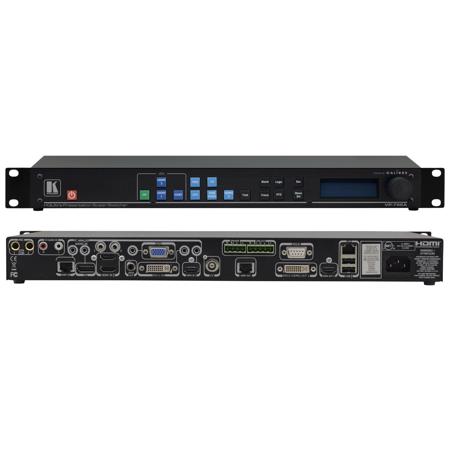

Kramer Electronics VP-796A HQUltra 4K60 4:2:0/HDBaseT & Legacy Presentation Switcher/Scaler with Ultra-Fast Input Switching & Analog Audio

SKU: KRVP796A110V MFR: VP-796A/110V
Earn VIP Reward Points

Key Features

  • Experience ultra-fast input switching with the Kramer VP-796A presentation switcher.
  • Enjoy superior 4K60 HDMI video quality for crisp, clear visuals in any presentation.
  • Connect various devices using multiple inputs, including HDMI, DisplayPort, & HDBaseT.
  • Ideal for lecture halls & corporate spaces, offering versatile audio/video connectivity.
  • Easily manage audio with multiple microphone inputs and S/PDIF digital audio output.
  • Control your presentation remotely via RS-232 or LAN, enhancing flexibility and ease.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$174.99

3 Year

$224.99

4 Year

$299.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Kramer Electronics VP-796A Specifications

  • Applications

    Lecture halls
    Classrooms
    Corporate meeting spaces
    Medical and healthcare
    Houses of worship
    Hotel conference venues

  • Video Inputs

    1x HDBT on an RJ-45 connector, 1x DisplayPort connector, 2x HDMI (4K UHD) connectors, 1x HDMI (HD) connector, 1x DVI-U (DVI/HDMI & VGA/RGBS/YPbPr), 1x VGA on a 15-pin HD connector, 1x CV on an RCA connector

  • Audio Inputs

    2x Microphones on 6mm mini jacks, 1x CV stereo on RCA connectors (R, L), 7x Unbalanced stereo on 3.5mm jacks

  • Outputs

    1x HDBT on an RJ-45 connector, 1x HDMI connector, 1x DVI/HDMI on a DVI-I connector, 1x S/PDIF on an RCA connector

  • Audio Outputs

    Speaker on a 4-pin terminal block, line out on a 5-pin terminal block, S/PDIF on an RCA connector

  • Ports

    1x RS-232 on a 9-pin D-sub connector, 1x LAN on an RJ-45 connector, 2x USB-A connectors

  • Component Video Input Formats

    484i (480i) and 576i (SD), 480p, 576p (ED), 720p, 1080i at 50, 59.94 and 60Hz and 1080p at 23.98, 24, 25, 29.97 and 30Hz

  • HDMI/DVI Signal Formats

    SD: 625i (576i) and 525i (480i) in double-rate formats
    ED: 480p, 576p
    HD: 1280x720p, 1920x1080i, 1920x1080psf
    1920x1080p 23.97, 24, 25, 29.94, 30, 50, 59.94 & 60Hz
    2048x1080p 23.97, 24, 25, 29.94, 30, 50, 59.94 & 60Hz. The 4k capable HDMI 1 and HDMI 2 inputs also support: 3840x2160p & 4096x2160p 23.97, 24, 25, 29.94, 30, 50, 59.94 & 60Hz (50, 59.94 & 60Hz supported in YUV 4:2:0 color space format)

  • Output Resolutions

    640x480, 800x600, 1024x768, 1280x768, 1280x800, 1280x1024, 1400x1050, 1600x1200, 1920x1200, 480i, 576i, 480p, 576p, 1080i, 720p (default after reset), 1080p, 2024x1080, 2560x1080, 2560x1440, 2560x1600, 3860x2160, 4096x2160

  • Frame Rate

    60Hz, 59.94Hz, 50Hz, 48Hz, 25Hz, 24Hz, 23.97Hz, auto

  • Operating Temperature

    0 to 40 deg. C (32 to 104 deg. F)

  • Storage Temperature

    -40 to 70 deg. C (-40 to 158 deg. F)

  • Humidity

    10% to 90%, RHL non-condensing

  • Power Consumption

    100-264V AC, 50/60Hz

  • Standards Compliance

    CE: 2004/108/EC Electromagnetic Compatibility Directive and 2006/95/EC Low Voltage Directive. Compliance is to EN55022 Class A

  • Dimensions (WxDxH)

    43.6 x 18.30 x 4.36cm (17.17 x 7.20 x 1.72")

  • Weight

    6 lbs (2.72kg)

  • UPC Code

    7290108021226

About Kramer Electronics VP-796A

VP-796A is a universal 4K at 60Hz (4:2:0) presentation scaler-switcher for HDMI, DisplayPort, HDBaseT, VGA, composite and DVI-U video signals and analog audio. Its HQUltraFast technology switches in typically a quarter of a second.

HQUltra Scaling
Low-latency, 4K UHD best-in-class, proprietary scaling algorithms.

HQUltraFast Switching
Proprietary technology for typical 0.25 second input channel switching.

Resolution Support
Up to 4K at 60Hz (4:2:0) UHD.

Ease of Setup
Front panel jog-wheel and LCD display for fast easy set-up in the field.

Color Calibration
For all source types including RGB controls, saturation & hue.

Built-in Test Patterns
For easy projector setup.

Audio Handling
Audio de-embed from HDMI, DisplayPort and HDBaseT inputs to analog and S/PDIF; re-embed to HDMI and HDBaseT outputs.

Analog Audio
Up to 8 unbalanced stereo inputs, two microphone inputs with phantom power and an audio mixer.

Speaker Outputs
Stereo audio power amplifier supporting 15W+15W RMS loudspeaker outputs, separate stereo balanced line level audio outputs for external amplifier systems.

Multiple Mirrored Outputs
For local monitoring of live output feed.

Flexible Control Options
Front panel buttons and jog wheel with LCD, RS-232, Ethernet with built-in Web pages and via API.

USB Connectors
For firmware upgrading.

Kramer Electronics VP-796A Features

  • HDCP Compliant
  • Pan-Tilt-Zoom Control
  • Supports Customized Video Logo
  • Flexible Aspect Ratio Conversion
  • Legacy and HDBaseT inputs and outputs
  • 4K Processing
  • Low video latency
  • Ultra-fast input switching
  • Control: RS-232, TCP/IP & Web server

Warranty Information

This product has a limited warranty of 84 months.

Key Features

  • Experience ultra-fast input switching with the Kramer VP-796A presentation switcher.
  • Enjoy superior 4K60 HDMI video quality for crisp, clear visuals in any presentation.
  • Connect various devices using multiple inputs, including HDMI, DisplayPort, & HDBaseT.
  • Ideal for lecture halls & corporate spaces, offering versatile audio/video connectivity.
  • Easily manage audio with multiple microphone inputs and S/PDIF digital audio output.
  • Control your presentation remotely via RS-232 or LAN, enhancing flexibility and ease.

What's in the box:

  • Kramer Electronics VP-796A HQUltra 4K60 4:2:0/HDBaseT & Legacy Presentation Switcher/Scaler
  • Power Cord
  • Rack Ears
  • Kramer Electronics 7 Year Limited Warranty
