1x HDBT (RJ45)
1x DisplayPort
2x HDMI (4K UHD)
1x HDMI (HD)
1x DVI-U (DVI/HDMI and VGA/RGBS/YPbPr)
1x VGA
1x CV (RCA)
2x 3G HD-SDI (BNC)
1x Genlock sync
2x 1/4" (6.3mm) microphone jacks
1x CV stereo RCA (R, L)
7x 1/8" (3.5 mm) unbalanced stereo jacks
1x HDBT (RJ45)
1x HDMI
1x DVI/HDMI (DVI-I)
1x 3G HD-SDI (BNC)
Speaker on a 4-pin terminal block, line out on a 5-pin terminal block, S/PDIF on an RCA connector
1x RS-232 (9-pin D-sub)
1x LAN (RJ45)
2x USB-A
484i (480i) and 576i (SD), 480p, 576p (ED), 720p, 1080i at 50, 59.94 and 60 Hz and 1080p at 23.98, 24, 25, 29.97 and 30 Hz
1280 x 720p
1920 x 1080i, 1920 x 1080psf, 1920 x 1080p
2048 x 1080p
3840 x 2160p
4096 x 2160p
640 x 480
800 x 600
1024 x 768
1280 x 768, 1280 x 800, 1280 x 1024
1400 x 1050
1600 x 1200
1920 x 1200
2024 x 1080
2560 x 1080, 2560 x 1440, 2560 x 1600
3860 x 2160
4096 x 2160
60, 59.94, 50, 48, 25, 24, 23.97 Hz, auto
0 to 40 deg. C (32 to 104 deg. F)
-40 to 70 deg. C (-40 to 158 deg. F)
10 to 90%, RHL non-condensing
100 to 264 VAC, 50/60 Hz, 65 W
CE: 2004/108/EC electromagnetic compatibility directive and 2006/95/EC low voltage directive
Compliance is to EN55022 class A
19 x 7.20 x 1.7" (48.26 x 18.29 x 4.32cm)
6.0 lbs (2.7kg) approximately
7291063079574

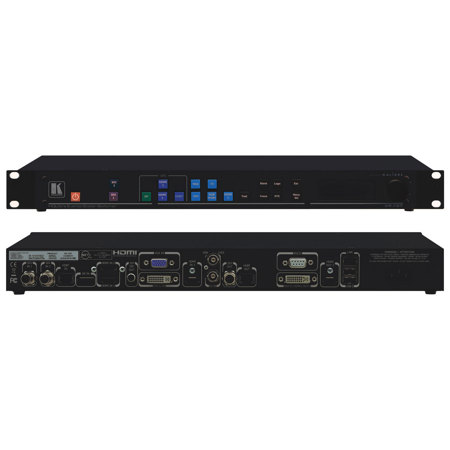

It's time to elevate your video presentations and live events with the VP-797A HQUltra 11-Input 4K60 4:2:0 HDBaseT and Legacy Presentation Switcher/Scaler. This advanced, high-tech device is a universal switch-scaler, capable of handling a wide array of inputs including HDMI, DisplayPort, HDBaseT, VGA, composite video, DVIU, and 3G HDSDI signals. With its sophisticated HQUltraFast technology, you can expect seamless switching in just a quarter of a second, ensuring your presentations run smoothly and professionally.
The VP-797A HQUltra Switcher/Scaler boasts a high resolution of up to 4K/60Hz (4:2:0) UHD, offering superior 4K UHD signal processing and native scaling algorithm for clear, detailed images. Its low latency HQUltra scaling ensures your visuals are always top-notch, making it an ideal choice for those requiring high-quality video transmission.
Setting up is a breeze with the user-friendly front panel knob and LCD display, allowing for quick and easy adjustments in the field. The device also offers comprehensive color calibration for all types of sources, including RGB, with saturation and hue adjustment capabilities. Built-in test patterns further simplify projector setup, ensuring your visuals are always perfectly calibrated.
The VP-797A HQUltra Switcher/Scaler doesn't stop at video; it also excels in audio processing. It can extract audio from 3G HDSDI, HDMI, DisplayPort, and HDBaseT, converting it to analog and S/PDIF, and embedding it in 3G output HDSDI, HDMI, and HDBaseT signals. With up to 8 unbalanced stereo inputs, two phantom power mic inputs, and a mixer, it caters to all your audio needs.
Additional outputs are available for monitoring the broadcast signal, and various control options are provided for your convenience. These include front panel buttons, knob and display, RS-232, Ethernet with integrated web pages, or API. USB connectors are also included for software updates, ensuring your device stays up-to-date with the latest technology. Experience the innovative, professional-grade VP-797A HQUltra 11-Input 4K60 4:2:0 HDBaseT and Legacy Presentation Switcher/Scaler, and take your presentations to the next level.
