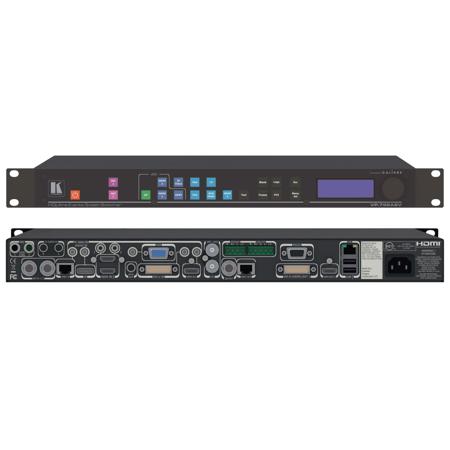

Kramer Electronics VP-798ASV 12-Input 4K60 4:2:0 Presentation Switcher/Scaler with Fast Switching, Genlock, Streaming Input & Videowall Scaling

SKU: KRVP798V110V MFR: VP-798ASV/110V
Earn VIP Reward Points

Key Features

  • Seamlessly switch between 12 inputs on this 4K60 presentation switcher for dynamic presentations.
  • Experience fast switching & genlock sync, perfect for live events and networked video setups.
  • Scale video walls easily with this presentation scaler, enhancing visual impact in any venue.
  • Connect various devices using HDMI, DisplayPort, HDBT, & more with this versatile KVM switch.
  • Stream video via H.264 input, ideal for incorporating online content into your presentations.
  • Enjoy superior audio with multiple mic inputs & outputs on this advanced presentation switcher.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Need help? Ask our experts.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Kramer Electronics VP-798ASV Specifications

  • Applications

    Lecture halls
    Classrooms
    Corporate meeting spaces
    Medical and healthcare
    Houses of worship
    Hotel conference venues
    Live events
    Networked video
    LED videowalls

  • Video Inputs

    1x HDBT on an RJ-45 connector, 1x DisplayPort connector, 2x HDMI (4K UHD) connectors, 1x HDMI (HD) connector, 1x DVI-U (DVI/HDMI & VGA/RGBS/YPbPr), 1x VGA on a 15-pin HD connector, 1x CV on an RCA connector, 2x 3G HD-SDI on BNC connectors, 1x Genlock sync, 1x H.264 1080p streaming video

  • Audio Inputs

    2x Microphones on 6mm mini jacks, 1x CV stereo on RCA connectors (R, L), 7x Unbalanced stereo on 3.5mm jacks

  • Outputs

    1x HDBT on an RJ-45 connector, 1x HDMI connector, 1x DVI/HDMI on a DVI-I connector, 1x 3G HD-SDI on a BNC connector

  • Audio Outputs

    Speaker on a 4-pin terminal block, line out on a 5-pin terminal block, S/PDIF on an RCA connector

  • Ports

    1x RS-232 on a 9-pin D-sub connector, 1x LAN on an RJ-45 connector, 2x USB-A connectors

  • Component Video Input Formats

    484i (480i) and 576i (SD), 480p, 576p (ED), 720p, 1080i at 50, 59.94 and 60Hz and 1080p at 23.98, 24, 25, 29.97 and 30Hz

  • HDMI/DVI Signal Formats

    SD: 625i (576i) and 525i (480i) in double-rate formats
    ED: 480p, 576p
    HD: 1280x720p, 1920x1080i, 1920x1080psf
    1920x1080p 23.97, 24, 25, 29.94, 30, 50, 59.94 & 60Hz
    2048x1080p 23.97, 24, 25, 29.94, 30, 50, 59.94 & 60Hz. The 4k capable HDMI 1 and HDMI 2 inputs also support: 3840x2160p & 4096x2160p 23.97, 24, 25, 29.94, 30, 50, 59.94 & 60Hz (50, 59.94 & 60Hz supported in YUV 4:2:0 color space format)

  • Output Resolutions

    640x480, 800x600, 1024x768, 1280x768, 1280x800, 1280x1024, 1400x1050, 1600x1200, 1920x1200, 480i, 576i, 480p, 576p, 1080i, 720p (default after reset), 1080p, 2024x1080, 2560x1080, 2560x1440, 2560x1600, 3860x2160, 4096x2160, custom resolutions

  • Frame Rate

    60Hz, 59.94Hz, 50Hz, 48Hz, 25Hz, 24Hz, 23.97Hz, auto

  • Operating Temperature

    0 to 40 deg. C (32 to 104 deg. F)

  • Storage Temperature

    -40 to 70 deg. C (-40 to 158 deg. F)

  • Humidity

    10% to 90%, RHL non-condensing

  • Power Consumption

    100-264V AC, 50/60Hz, 65W

  • Standards Compliance

    CE: 2004/108/EC Electromagnetic Compatibility Directive and 2006/95/EC Low Voltage Directive. Compliance is to EN55022 Class A

  • Dimensions (WxDxH)

    43.6 x 18.30 x 4.36cm (17.17 x 7.20 x 1.72")

  • Weight

    6 lbs (2.72kg)

  • UPC Code

    7291063081935

About Kramer Electronics VP-798ASV

Become a master of multimedia presentations with the advanced VP-798ASV 12-Input 4K60 4:2:0 Presentation Switcher/Scaler. This high-tech device is a universal solution for managing a variety of input signals, including HDMI, DisplayPort, HDBaseT, VGA, composite, DVI-U, 3G HD-SDI, and H.264 streaming.

Designed with state-of-the-art HQUltraFast technology, this innovative switcher/scaler ensures seamless transitions between video sources in typically a quarter of a second. Its sophisticated HQUltra Scaling algorithms provide low-latency, best-in-class 4K resolution for superior visual performance.

The VP-798ASV is not just about video; it also excels in audio handling. It can de-embed audio from various streaming sources to analog and S/PDIF, and re-embed to 3G HD-SDI, HDMI, and HDBaseT outputs. With up to 8 unbalanced stereo inputs, two microphone inputs with phantom power, and an integrated audio mixer, it offers comprehensive audio control.

This device also features a Genlock Input, ideal for live events and professional broadcast installations. Its built-in test patterns facilitate easy projector setup, while the color calibration feature ensures optimal color accuracy for all source types.

The VP-798ASV also boasts multiple mirrored outputs for local monitoring of live output feed, and a front panel jog-wheel and LCD display for quick and easy setup. It offers flexible control options, including front panel buttons, RS-232, Ethernet with built-in web pages, and API. Plus, it has USB connectors for firmware upgrading.

Whether you're hosting a conference, seminar, or any event requiring multiple video sources, the VP-798ASV 12-Input 4K60 4:2:0 Presentation Switcher/Scaler is your go-to solution for a seamless, high-quality presentation.

Kramer Electronics VP-798ASV Features

  • HDCP Compliant
  • Pan-Tilt-Zoom Control
  • LED Videowall Scaling
  • Supports Customized Video Logo
  • Flexible Aspect Ratio Conversion
  • Picture-in Picture
  • H.264 streaming input
  • Legacy and HDBaseT inputs and outputs
  • 4K Processing
  • Low video latency
  • Ultra-fast input switching
  • Control: RS-232, TCP/IP & Web server
  • Genlock

Warranty Information

This product has a limited warranty of 84 months.

Key Features

  • Seamlessly switch between 12 inputs on this 4K60 presentation switcher for dynamic presentations.
  • Experience fast switching & genlock sync, perfect for live events and networked video setups.
  • Scale video walls easily with this presentation scaler, enhancing visual impact in any venue.
  • Connect various devices using HDMI, DisplayPort, HDBT, & more with this versatile KVM switch.
  • Stream video via H.264 input, ideal for incorporating online content into your presentations.
  • Enjoy superior audio with multiple mic inputs & outputs on this advanced presentation switcher.

What's in the box:

  • Kramer Electronics VP-798ASV 12-Input 4K60 4:2:0 Presentation Switcher/Scaler
  • Power Cord
  • Rack Ears
  • Kramer Electronics 7 Year Limited Warranty
