What type of video signals does the Kramer VP-81XL support?

The Kramer VP-81XL supports computer graphics video signals, with resolutions ranging from VGA through UXGA and higher.

How many inputs can the Kramer VP-81XL switch between?

The Kramer VP-81XL can switch between eight distinct inputs to a single output.

Does the Kramer VP-81XL support audio signals?

Yes, the Kramer VP-81XL can handle balanced stereo audio signals in addition to video signals.

What types of connections does the Kramer VP-81XL support?

The Kramer VP-81XL is equipped with a variety of input and output connections, including HDMI, SDI, and analog audio.

What type of control does the built-in audio mixer provide?

The built-in audio mixer on the Kramer VP-81XL allows users to adjust the levels and panning of each input channel before it is output to the main audio output.

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Kramer Electronics VP-81XL Specifications

  • Input

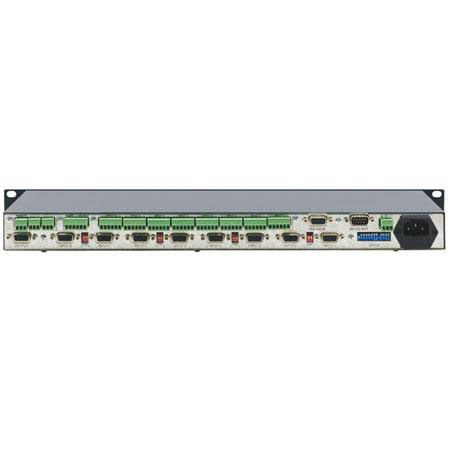

    8 analog red, green, blue signals -0.7Vpp/75 Ohm, H & V syncs, TTL level on 15-pin HD (F) connectors; 8 balanced audio stereo signals, +4dBu typ. on detachable terminal blocks

  • Outputs

    1 analog red, green, blue signals: 0.7Vpp/75 Ohm, H & V syncs, TTL level on a 15-pin HD (F) connector; 1 balanced audio stereo signal, +4dBu typ. on detachable terminal blocks

  • Bandwidth (-3dB)

    Video: >500MHz; Audio: 100kHz

  • Max. Input/Output

    Video: 2Vpp; Audio: 26dBu

  • S/N Ratio

    Video: 73dB; Audio: >83dB

  • Crosstalk (all Hostile)

    Video: -47dB @5MHz; Audio: -65dB @1kHz

  • Coupling

    Video: DC; Audio: DC

  • Audio THD + Noise

    <0.025%

  • Audio 2nd Harmonic

    <0.003%

  • Controls

    Front panel selector switches; RS-232, RS-485; IR remote control; detachable terminal blocks for remote dry-contact switches

  • Power Source

    230V AC, 50/60Hz, (115V AC, U.S.A.) 12VA max

  • Dimensions

    19" x 7" x 1U (W x D x H), rack mountable

  • Weight

    2.7kg (6.0lbs) approx

  • Warranty

    Kramer 7 years limited warranty

About Kramer Electronics VP-81XL

Under the umbrella of advanced audio and video equipment, the Kramer VP-81XL 8x1 Computer Graphics Video & Balanced Stereo Audio Switcher stands out as a high-performance, professional-grade device. Designed to seamlessly switch between eight distinct inputs to a single output, this sophisticated switcher is compatible with computer graphics video signals, supporting resolutions from VGA through UXGA and even higher.

This reliable switcher is not just limited to video signals; it also handles balanced stereo audio signals with ease, making it an indispensable tool for professional audio and video setups. Whether you're orchestrating live events, managing broadcast studios, or overseeing post-production facilities, the VP-81XL ensures smooth transitions and superior audio-visual quality.

Equipped with a variety of input and output connections, including HDMI, SDI, and analog audio, the VP-81XL integrates effortlessly with a wide array of equipment and systems. Its built-in audio mixer allows users to fine-tune the levels and panning of each input channel before it is output to the main audio output, offering unparalleled control over your audio-visual experience.

In summary, the Kramer VP-81XL 8x1 Computer Graphics Video & Balanced Stereo Audio Switcher is a versatile, high-quality solution for professional video and audio applications, offering the flexibility and reliability that professionals demand.

Kramer Electronics VP-81XL Features

  • High Bandwidth - 500MHz (-3dB)
  • HDTV Compatible
  • Flexible Control Options - Front Panel, RS-232 (K-Router Windows-based Kramer software is included), RS-485, contact closure & IR remote (included)
  • Expandable - Cascades multiple units
  • ID Bit Control - Each input
  • Audio Breakaway Switching
  • Standard 19" Rack Mount Size - 1U

Key Features

  • Versatile audio management with balanced stereo audio signal switching
  • Broad compatibility with eight distinct inputs and a single output
  • Comprehensive connection options including HDMI, SDI, and analog audio
  • Built-in audio mixer for precise control of levels and panning of each input channel

What's in the box:

  • Kramer VP-81XL 8x1 Computer Graphics Video & Balanced Stereo Audio Switcher
  • Power Cord
  • Null-modem Adapter
  • Windows-based Kramer Control Software
  • Infra-red Remote Control Transmitter
  • Kramer 7 Years Limited Warranty
